TOYOTA PRIUS PLUG IN HBD ZVW35L-BHXEBW / ELECTRICAL / METER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

METER

(0912- )LHD

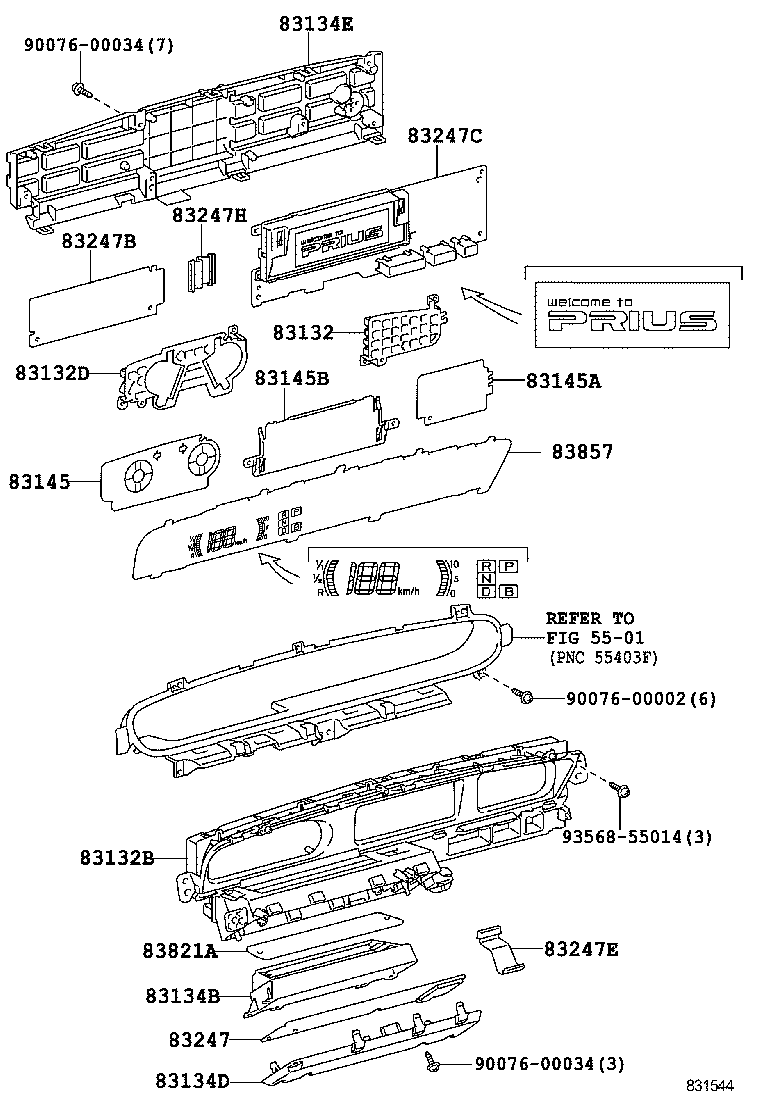

 PRIUS PLUG IN HBD |  METER ** Refer Fig 83132 - CASE, COMBINATION METER 83132B - CASE, COMBINATION METER NO.3 83132D - CASE, COMBINATION METER, NO.2 83134B - COVER, COMBINATION METER, NO.2 83134D - COVER, COMBINATION METER, NO.3 83134E - COVER, COMBINATION METER, NO.4 83145 - LENS, METER, NO.1 83145A - LENS, METER, NO.2 83145B - LENS, METER, NO.3 83247 - PLATE, METER CIRCUIT 83247B - PLATE, METER CIRCUIT, NO.2 83247C - PLATE, MATER CIRCUIT, NO.3 83247E - PLATE, MATER CIRCUIT, NO.4 83247H - PLATE, METER CIRCUIT, NO.5 83821A - COVER, COMBINATION METER, NO.1 83857 - REFLECTOR, COMBINATION METER, NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part
