TOYOTA PRIUS PLUG IN HBD ZVW35L-BHXEBW / ELECTRICAL / WINDSHIELD WASHER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

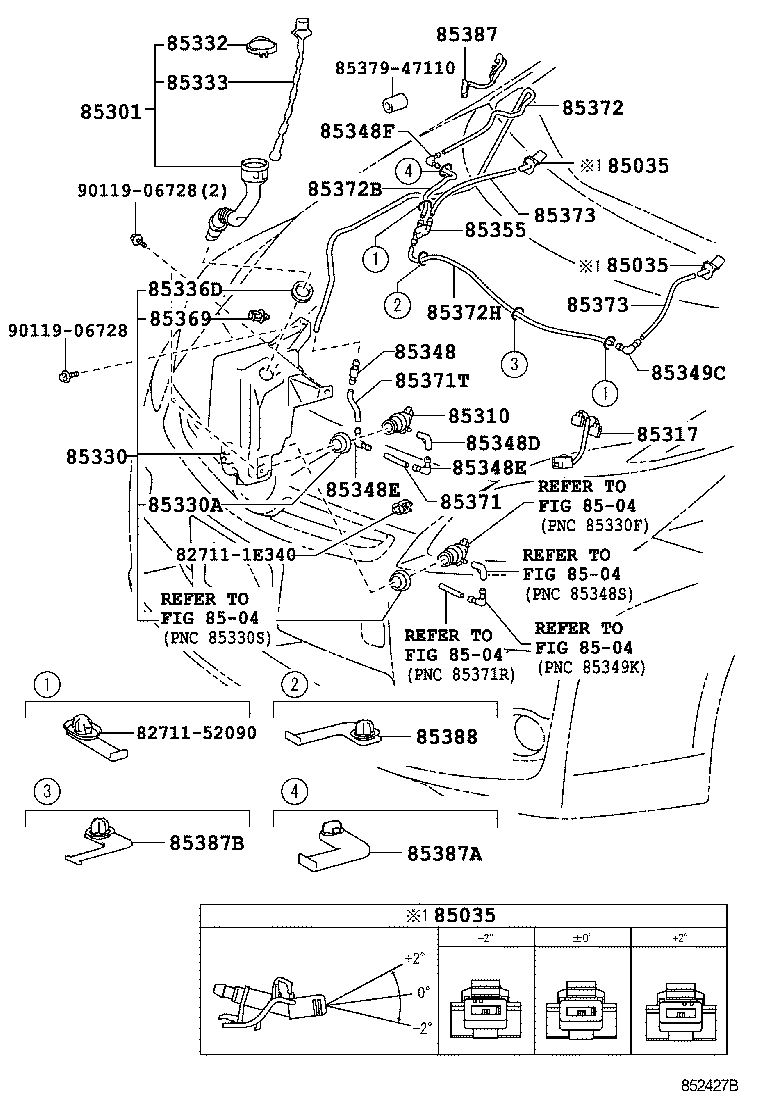

WINDSHIELD WASHER

(0912- )

PRIUS PLUG IN HBD | WINDSHIELD WASHER ** Std Part ** Std Part 85035 - NOZZLE SUB-ASSY, WASHER 85035 - NOZZLE SUB-ASSY, WASHER 85035 - NOZZLE SUB-ASSY, WASHER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85301 - INLET SUB-ASSY, WASHER 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER 85317 - WIRING ASSY, WASHER 85330 - JAR ASSY, WINDSHIELD WASHER 85330A - BUSH, WINDSHIELD WASHER JAR 85332 - CAP, WINDSHIELD WASHER JAR 85333 - FILTER, WINDSHIELD WASHER JAR 85336D - PACKING, WINDSHIELD WASHER JAR 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 85355 - VALVE, WINDSHIELD WASHER HOSE 85369 - CLAMP 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) 85371T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT) 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) ** Std Part 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) 85387A - CLAMP, WASHER, NO.2 85387B - CLAMP, WASHER, NO.3 85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER) ** Std Part ** Std Part
