TOYOTA PRIUS PLUG IN HBD ZVW35R-BHXEBW / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

INSTRUMENT PANEL GLOVE COMPARTMENT

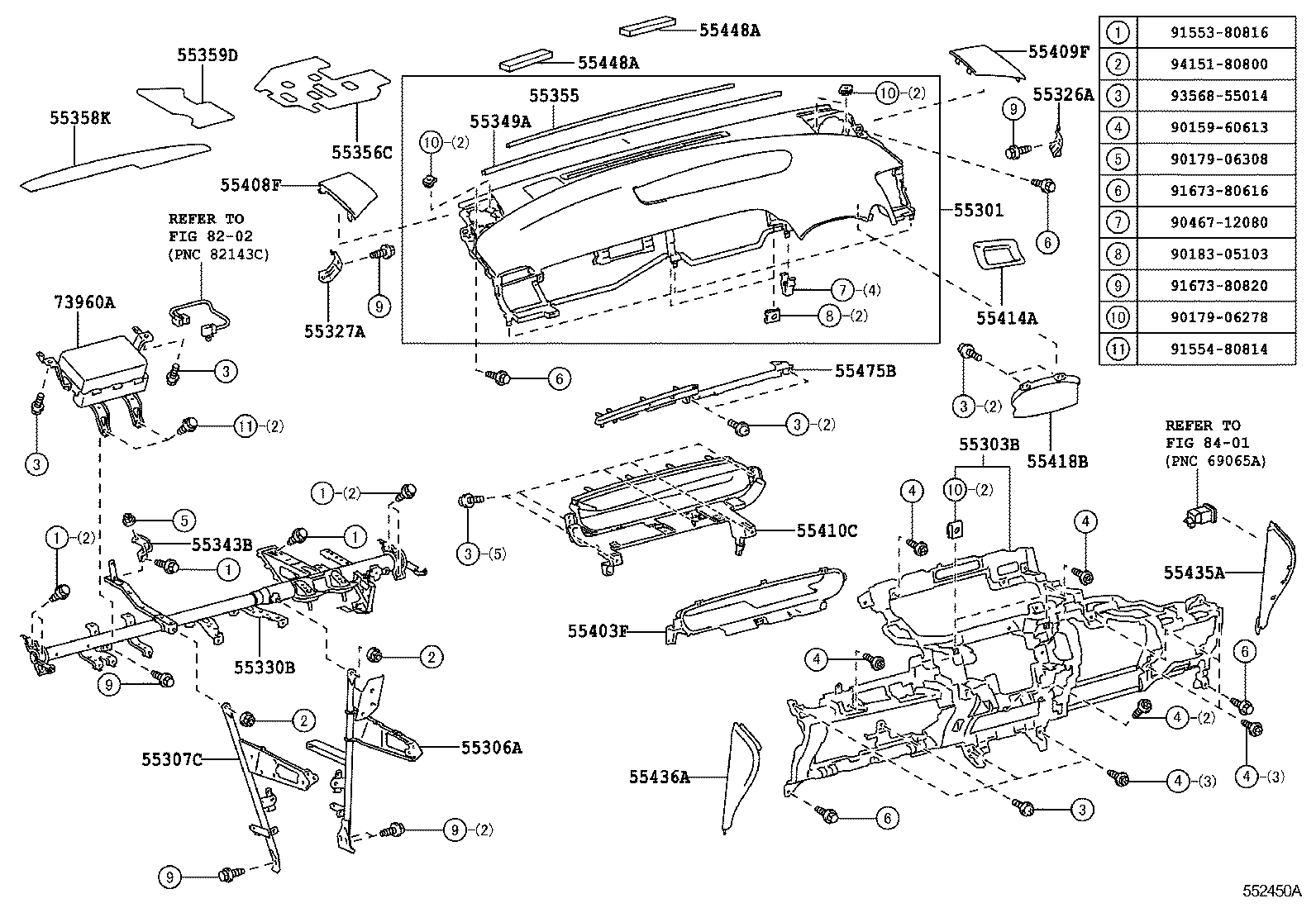

ILLUST NO. 1 OF 2(0912- )RHD

PRIUS PLUG IN HBD | INSTRUMENT PANEL GLOVE COMPARTMENT 55301 - PANEL SUB-ASSY, INSTRUMENT 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 55326A - STAY, INSTRUMENT PANEL, NO.1 55327A - STAY, INSTRUMENT PANEL, NO.2 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER 55349A - CUSHION, INSTRUMENT PANEL 55355 - CUSHION, INSTRUMENT PANEL, NO.1 55356C - CUSHION, INSTRUMENT PANEL, NO.2 55358K - CUSHION, INSTRUMENT PANEL, NO.4 55359D - CUSHION, INSTRUMENT PANEL, NO.5 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END 55418B - SPACER,METER HOOD 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 55475B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
