TOYOTA VERSO S NLP121L-CHLGXW / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT FENDER APRON DASH PANEL

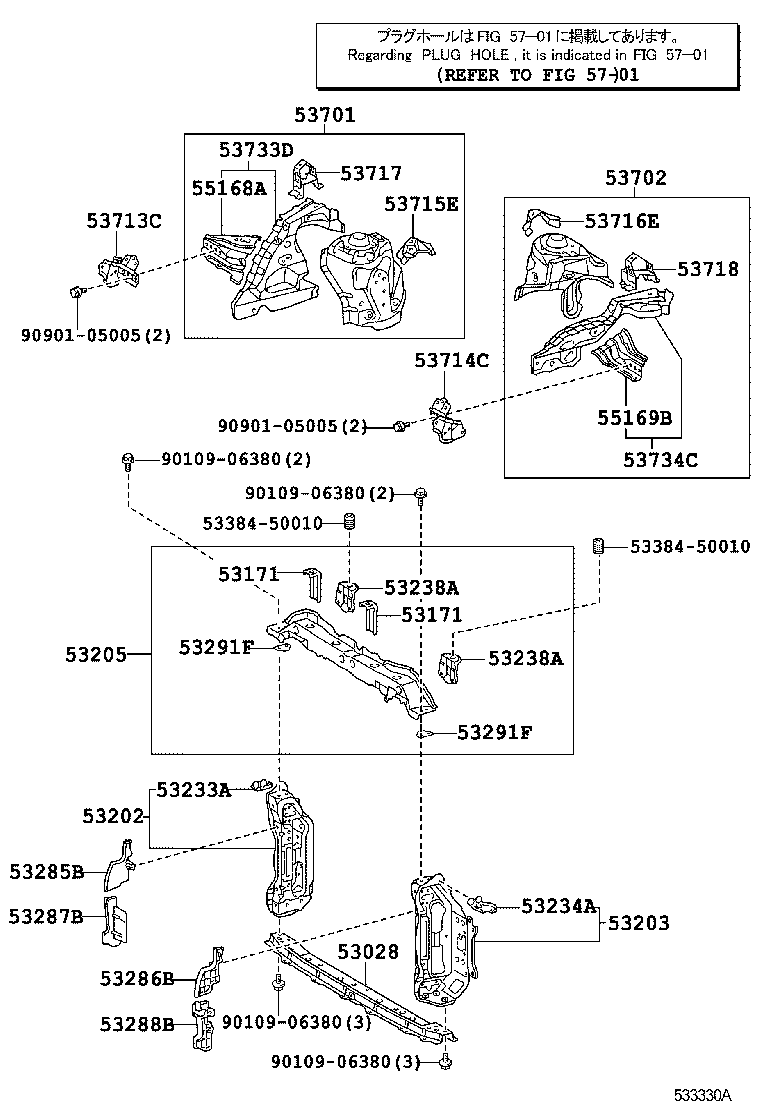

RADIATOR SUPPORT&FRONT FENDER APRONILLUST NO. 1 OF 2(1011- )

 VERSO S |  FRONT FENDER APRON DASH PANEL 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER 53171 - RETAINER, RADIATOR SUPPORT 53171 - RETAINER, RADIATOR SUPPORT 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53233A - BRACKET, HEADLAMP, NO.1 RH 53234A - BRACKET, HEADLAMP, NO.1 LH 53238A - BRACKET, HOOD BUMPER MOUNTING 53238A - BRACKET, HOOD BUMPER MOUNTING 53285B - SEAL, RADIATOR SIDE AIR, NO.1 53286B - SEAL, RADIATOR SIDE AIR, NO.2 53287B - EXTENSION, RADIATOR SUPPORT, RH 53288B - EXTENSION, RADIATOR SUPPORT, LH 53291F - PLATE, RADIATOR SUPPORT 53291F - PLATE, RADIATOR SUPPORT  ** Std Part  ** Std Part 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH 53715E - EXTENSION, FRONT FENDER APRON, REAR RH 53716E - EXTENSION, FRONT FENDER APRON, REAR LH 53717 - PLATE, FENDER APRON, RH 53718 - PLATE, FENDER APRON, LH 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH 55168A - BRACKET, FRONT FENDER MOUNTING, RH 55169B - BRACKET, FRONT FENDER MOUNTING, LH ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
