TOYOTA VERSO S NLP121L-CHLGXW / BODY / REAR DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR DOOR PANEL GLASS

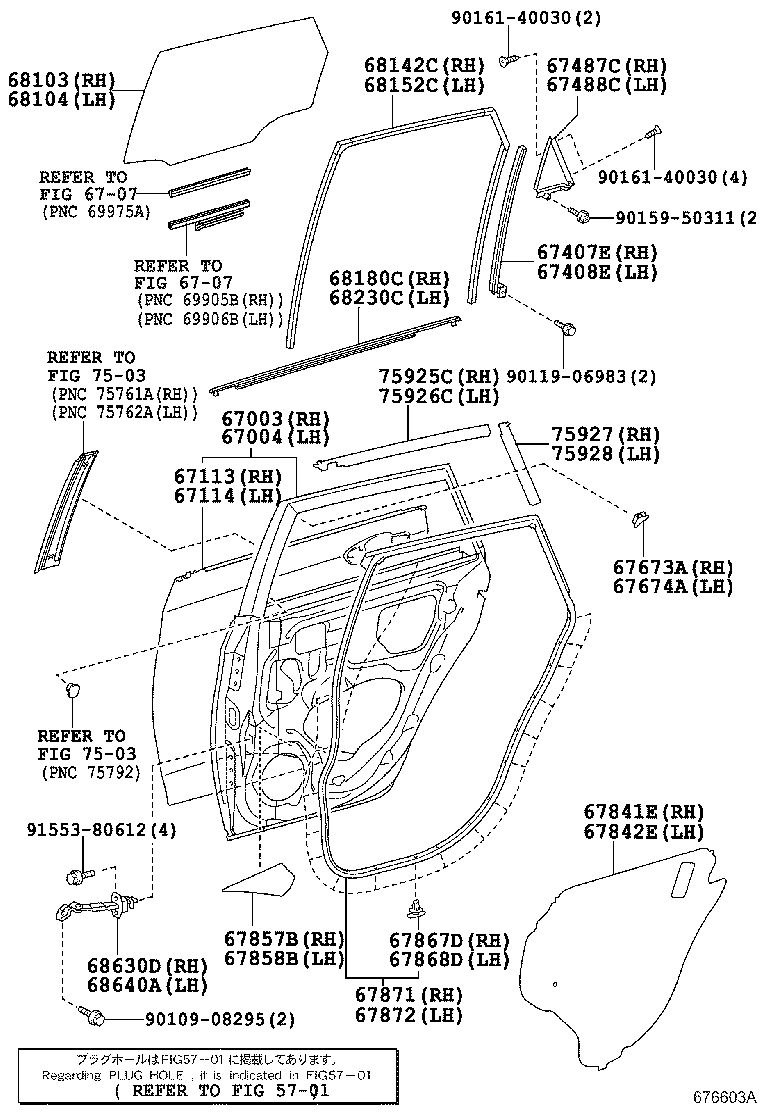

DOOR PANEL ILLUST NO. 1 OF 2(1011- )

 VERSO S |  REAR DOOR PANEL GLASS ** Refer Fig 67003 - PANEL SUB-ASSY, REAR DOOR, RH 67004 - PANEL SUB-ASSY, REAR DOOR, LH ** Refer Fig ** Refer Fig 67113 - PANEL, REAR DOOR, OUTER RH 67114 - PANEL, REAR DOOR, OUTER LH 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH 67487C - SEAL, REAR DOOR REAR GUIDE, RH 67488C - SEAL, REAR DOOR REAR GUIDE, LH 67673A - GARNISH, REAR DOOR FRAME, RH 67674A - GARNISH, REAR DOOR FRAME, LH 67841E - COVER, REAR DOOR SERVICE HOLE, RH 67842E - COVER, REAR DOOR SERVICE HOLE, LH 67857B - PROTECTOR, REAR DOOR PANEL, RH 67858B - PROTECTOR, REAR DOOR PANEL, LH 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH 67871 - WEATHERSTRIP, REAR DOOR, RH 67872 - WEATHERSTRIP, REAR DOOR, LH 68103 - GLASS SUB-ASSY, REAR DOOR, RH 68104 - GLASS SUB-ASSY, REAR DOOR, LH 68142C - RUN, REAR DOOR GLASS, RH 68152C - RUN, REAR DOOR GLASS, LH 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH 68630D - CHECK ASSY, REAR DOOR, RH 68640A - CHECK ASSY, REAR DOOR, LH ** Refer Fig ** Refer Fig 75925C - TAPE, BLACK OUT, NO.3 RH 75926C - TAPE, BLACK OUT, NO.3 LH 75927 - TAPE, BLACK OUT, NO.4 RH 75928 - TAPE, BLACK OUT, NO.4 LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
