TOYOTA VERSO S NLP121L-CHLGXW / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

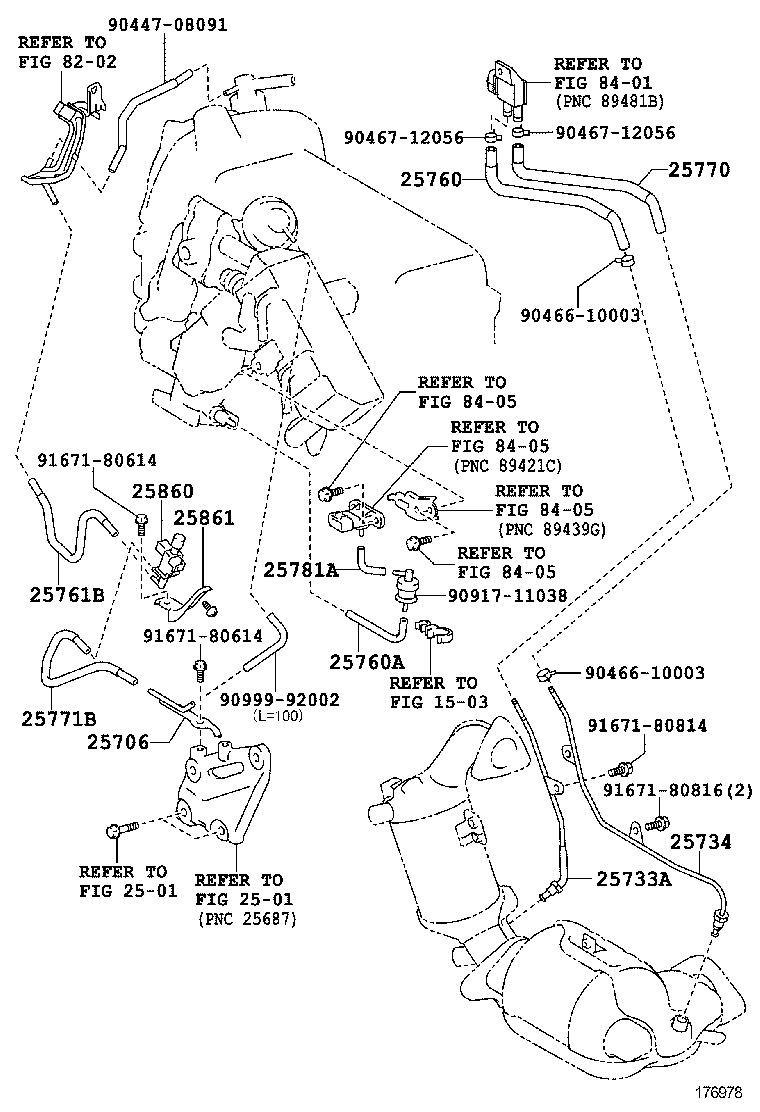

VACUUM PIPING

(1011- )1NDTV

 VERSO S |  VACUUM PIPING ** Refer Fig ** Refer Fig ** Refer Fig 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 25733A - PIPE, VACUUM, NO.1 25734 - PIPE, VACUUM, NO.2 25760 - HOSE ASSY, VACUUM TRANSMITTING 25760A - HOSE ASSY, VACUUM TRANSMITTING 25761B - HOSE, VACCUM TRANSMITTING, NO.1 25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2 25771B - HOSE, VACCUM TRANSMITTING, NO.2 25781A - HOSE, VACUUM TRANSMITTING, NO.3 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25861 - BRACKET, VACUUM SWITCHING VALVE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
