TOYOTA AURIS HYBRID UKP NDE150R-DGLNXW / POWERTRAIN-CHASSIS / CLUTCH HOUSING TRANSMISSION CASE MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH HOUSING TRANSMISSION CASE MTM

EC60A,EC65A (0902- )6FS

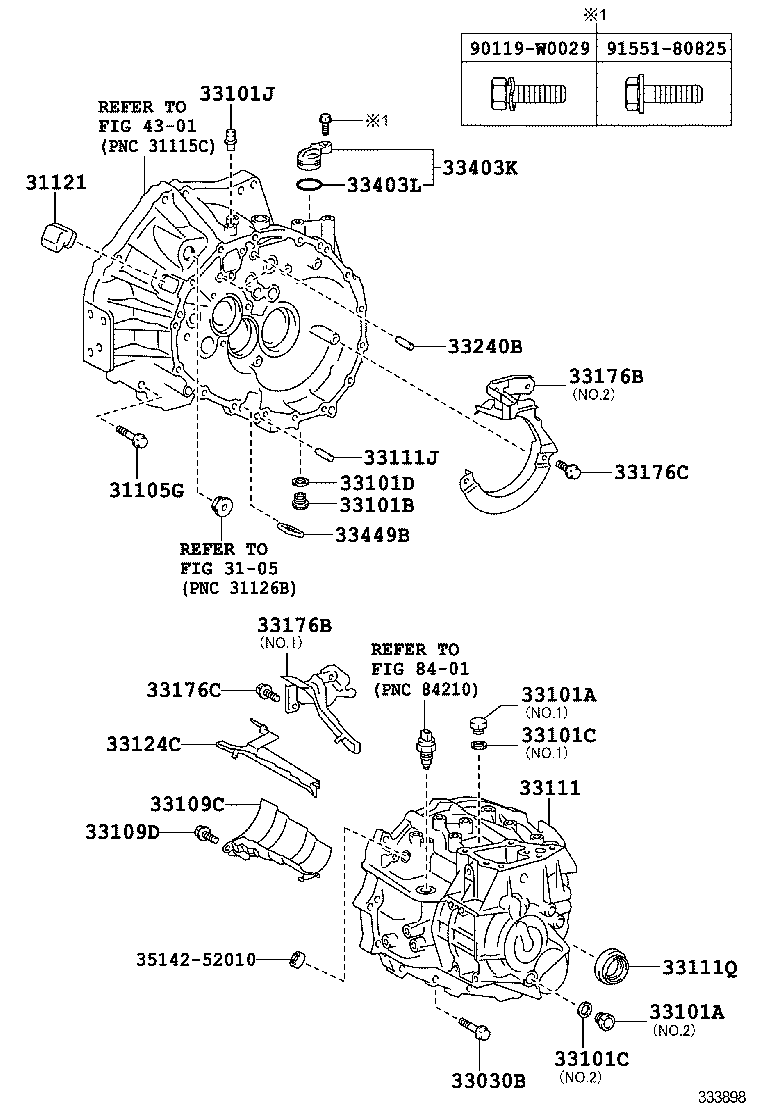

 AURIS HYBRID UKP |  CLUTCH HOUSING TRANSMISSION CASE MTM ** Refer Fig 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) 31121 - COVER, CLUTCH HOUSING, NO.1 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) 33101B - PLUG(FOR MANUAL TRANSMISSION DRAIN) 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) 33101D - GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG) 33101J - PLUG, BREATHER 33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL 33109D - BOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR) 33111 - CASE, MANUAL TRANSMISSION 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) 33124C - PIPE, OIL RECEIVER, NO.1(MTM) 33176B - SEPARATOR, TRANSMISSION OIL(MTM) 33176B - SEPARATOR, TRANSMISSION OIL(MTM) 33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR) 33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR) 33240B - PIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET) 33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE 33403L - RING, O 33449B - MAGNET, TRANSMISSION  ** Std Part ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part
