TOYOTA HILUX KUN25R-CRMDHW / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE TUBE CLAMP

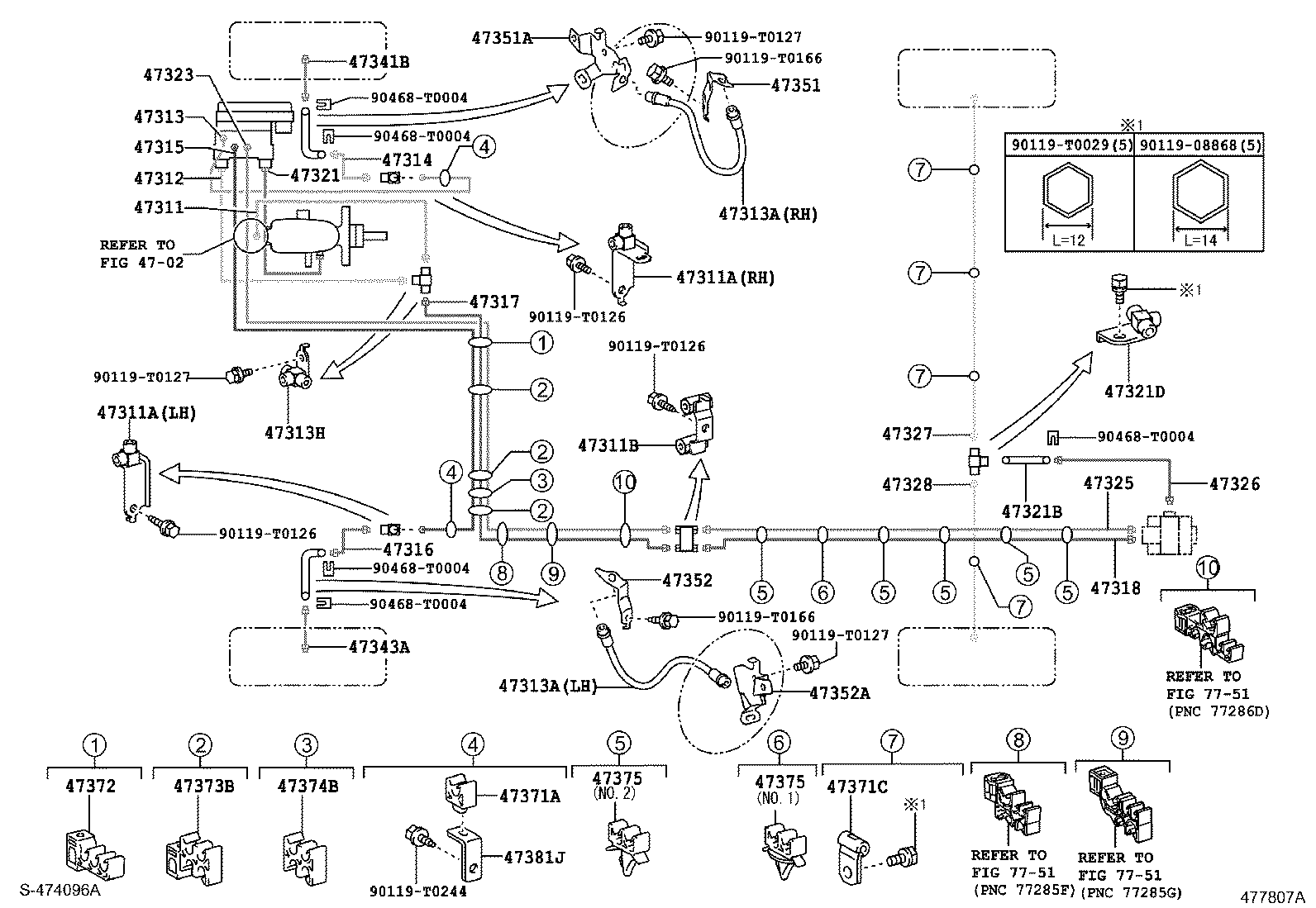

ILLUST NO. 1 OF 3(1107- )RHD..XTR

 HILUX |  BRAKE TUBE CLAMP ** Refer Fig 47311 - TUBE, FRONT BRAKE, NO.1 47311A - WAY(FOR FRONT BRAKE TUBE) 47311A - WAY(FOR FRONT BRAKE TUBE) 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) 47312 - TUBE, FRONT BRAKE, NO.2 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) 47314 - TUBE, FRONT BRAKE, NO.4 47315 - TUBE, FRONT BRAKE, NO.5 47316 - TUBE, FRONT BRAKE, NO.6 47317 - TUBE, FRONT BRAKE, NO.7 47318 - TUBE, FRONT BRAKE, NO.8 47321 - TUBE, REAR BRAKE, NO.1 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) 47323 - TUBE, REAR BRAKE, NO.3 47325 - TUBE, REAR BRAKE, NO.5 47326 - TUBE, REAR BRAKE, NO.6 47327 - TUBE, REAR BRAKE, NO.7 47328 - TUBE, REAR BRAKE, NO.8 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) 47351A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.1 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) 47352A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.1 47371A - CLAMP, BRAKE TUBE, NO.1 47371C - CLAMP, BRAKE TUBE, NO.7 47372 - CLAMP, BRAKE TUBE, NO.2 47373B - CLAMP, BRAKE TUBE, NO.3 47374B - CLAMP, BRAKE TUBE, NO.4 47375 - CLAMP, BRAKE TUBE, NO.5 47375 - CLAMP, BRAKE TUBE, NO.5 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
