TOYOTA HILUX KUN26R-PRADYW / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

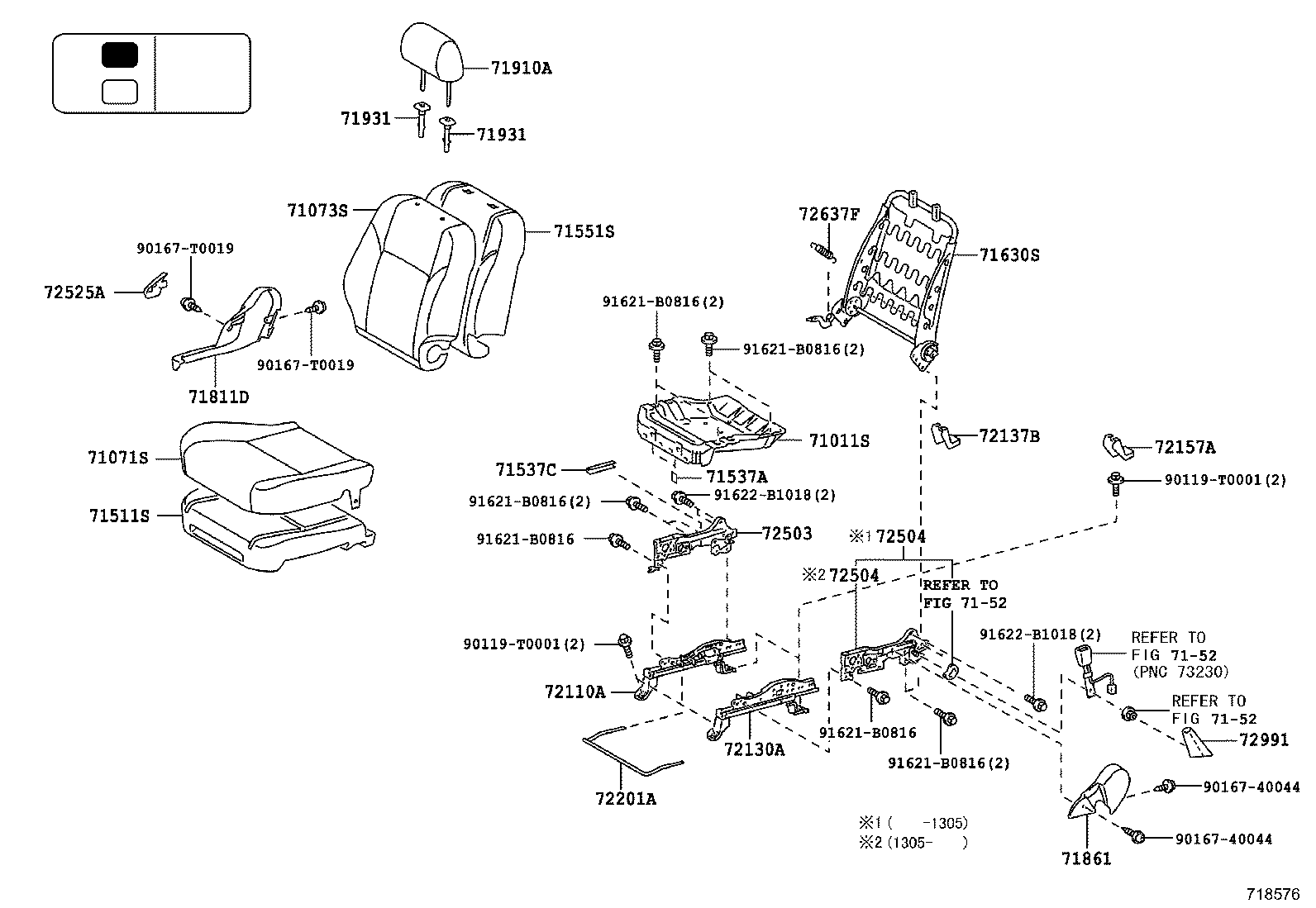

DRIVER SEAT ILLUST NO. 1 OF 3(1107- )RHD

 HILUX |  SEAT SEAT TRACK 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig ** Refer Fig 71537A - PROTECTOR, FRONT SEAT CUSHION 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71811D - SHIELD, FRONT SEAT CUSHION, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72110A - TRACK ASSY, FRONT SEAT, OUTER RH 72130A - TRACK ASSY, FRONT SEAT, INNER RH 72137B - COVER, SEAT TRACK, RH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72201A - HANDLE SUB-ASSY, SEAT TRACK RH 72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH 72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH 72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72637F - SPRING, SEAT BACK, RH 72991 - COVER, FRONT SEAT CUSHION, RH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
