TOYOTA HILUX KUN35L-CRMDHW / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SEAT SEAT TRACK

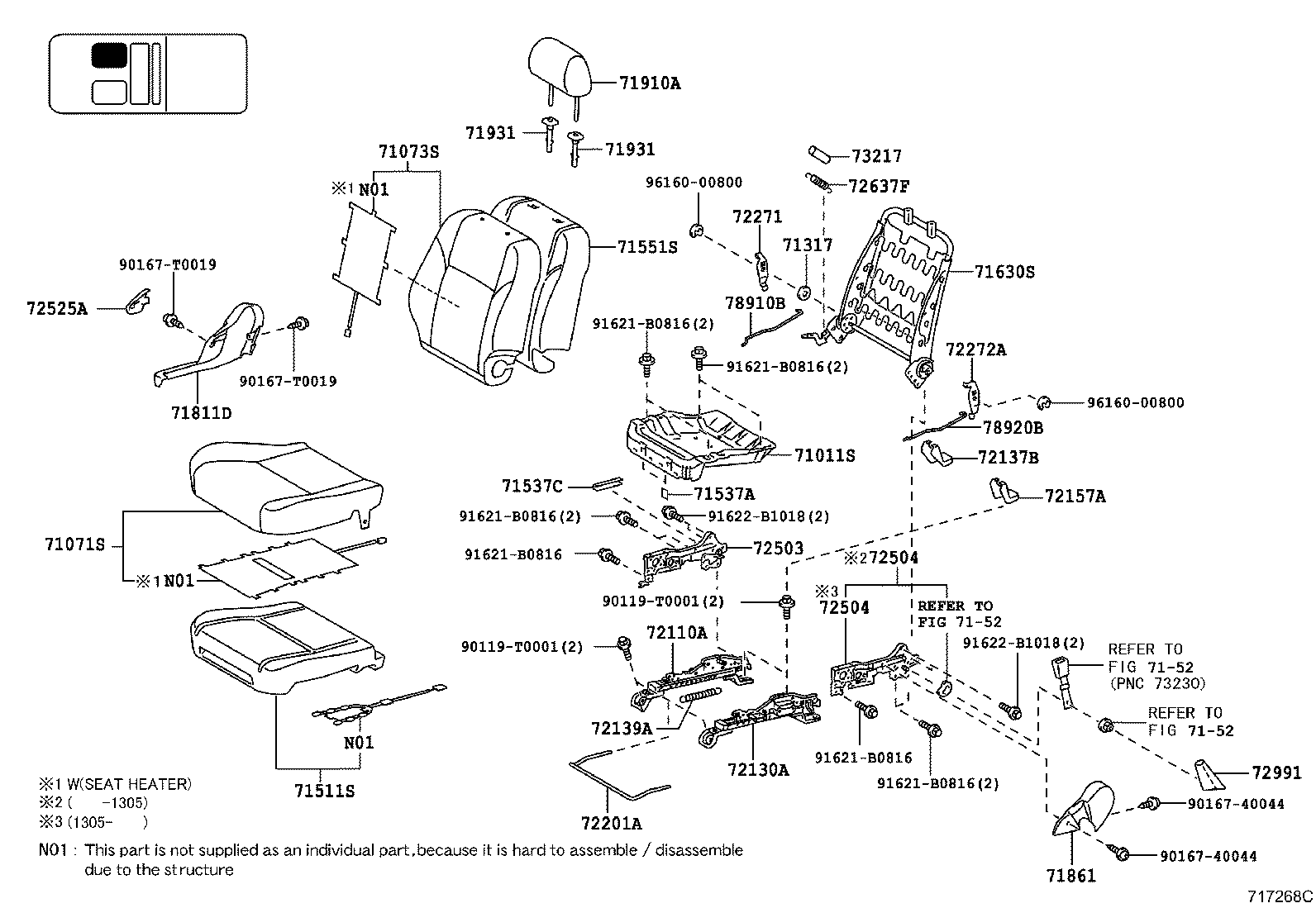

PASSENGER SEAT (WALK-IN TYPE) ILLUST NO. 2 OF 3(1107- )LHD..XTR

HILUX | SEAT SEAT TRACK 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71317 - PLATE, FRONT SEAT BACK HINGE 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig ** Refer Fig 71537A - PROTECTOR, FRONT SEAT CUSHION 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71811D - SHIELD, FRONT SEAT CUSHION, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72110A - TRACK ASSY, FRONT SEAT, OUTER RH 72130A - TRACK ASSY, FRONT SEAT, INNER RH 72137B - COVER, SEAT TRACK, RH 72139A - SPRING, SEAT TRACK COVER 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72201A - HANDLE SUB-ASSY, SEAT TRACK RH 72271 - BRACKET, SEAT TRACK CONTROL CABLE, RH 72272A - BRACKET, SEAT TRACK CONTROL CABLE, LH 72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH 72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH 72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72637F - SPRING, SEAT BACK, RH 72991 - COVER, FRONT SEAT CUSHION, RH 73217 - TUBE, ADJUSTER, RH 78910B - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 RH 78920B - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
