TOYOTA IQ EV KPJ10L-CGDSSW / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FRONT FENDER APRON DASH PANEL

(1209- )

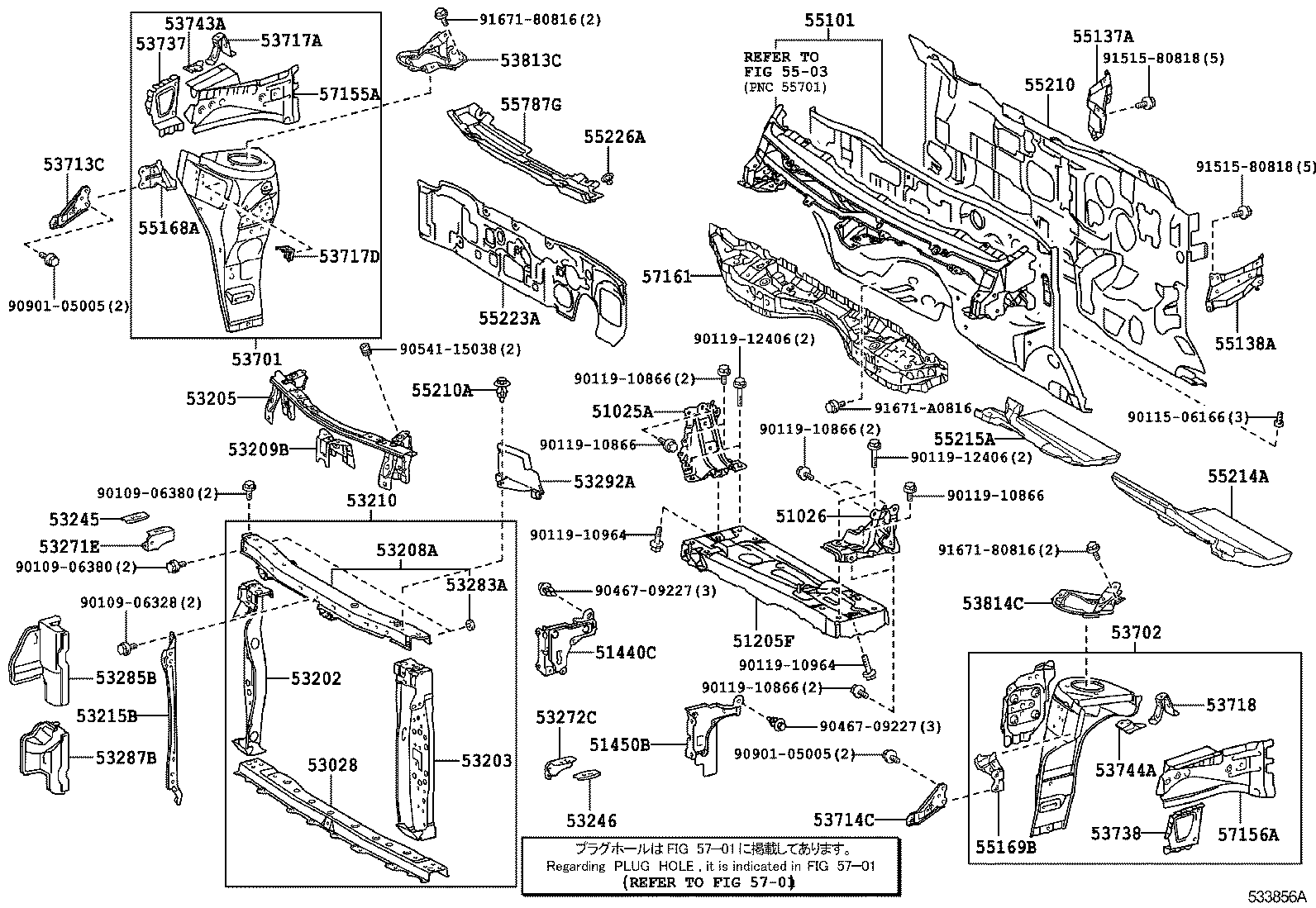

IQ EV | FRONT FENDER APRON DASH PANEL 51025A - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, RH 51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH 51205F - CROSSMEMBER SUB-ASSY, FRAME, CENTER 51440C - COVER ASSY, MOTOR SIDE UNDER, RH 51450B - COVER ASSY, MOTOR SIDE UNDER, LH 53028 - SUPPORT SUB-ASSY, RADIATOR, LOWER 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT 53210 - SUPPORT ASSY, RADIATOR 53215B - SUPPORT, HOOD LOCK 53245 - BRACKET, HEADLAMP, RH 53246 - BRACKET, HEADLAMP, LH 53271E - BRACKET, HEADLAMP MOUNTING, RH 53272C - BRACKET, HEADLAMP MOUNTING, LH 53283A - REINFORCEMENT, RADIATOR SUPPORT, LOWER 53285B - SEAL, RADIATOR SIDE AIR, NO.1 53287B - EXTENSION, RADIATOR SUPPORT, RH 53292A - SEAL, RADIATOR SUPPORT, UPPER 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53713C - EXTENSION, FRONT FENDER APRON, FRONT RH 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH 53717A - PLATE, FENDER APRON 53717D - GUSSET, FENDER APRON, RH 53718 - PLATE, FENDER APRON, LH 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH 53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH 53744A - REINFORCEMENT, FRONT FENDER APRON, FRONT LH 53813C - EXTENSION, FRONT FENDER, RH 53814C - EXTENSION, FRONT FENDER, LH ** Refer Fig 55101 - PANEL SUB-ASSY, DASH 55137A - BRACE, DASH TO FRAME, RH 55138A - BRACE, DASH TO FRAME, LH 55168A - BRACKET, FRONT FENDER MOUNTING, RH 55169B - BRACKET, FRONT FENDER MOUNTING, LH 55210 - INSULATOR ASSY, DASH PANEL 55210A - CLIP 55214A - PAD, DASH PANEL INSULATOR, NO.2 55215A - PAD, DASH PANEL INSULATOR, NO.3 55223A - INSULATOR, DASH PANEL, OUTER 55226A - CLIP 55787G - INSULATOR, COWL TOP PANEL, NO.1 ** Refer Fig 57155A - REINFORCEMENT, FRONT SIDE MEMBER, NO.3 RH 57156A - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH 57161 - CROSSMEMBER, FRONT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
