TOYOTA IQ EV KPJ10L-CGDSSW / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FLOOR PAN LOWER BACK PANEL

(1209- )

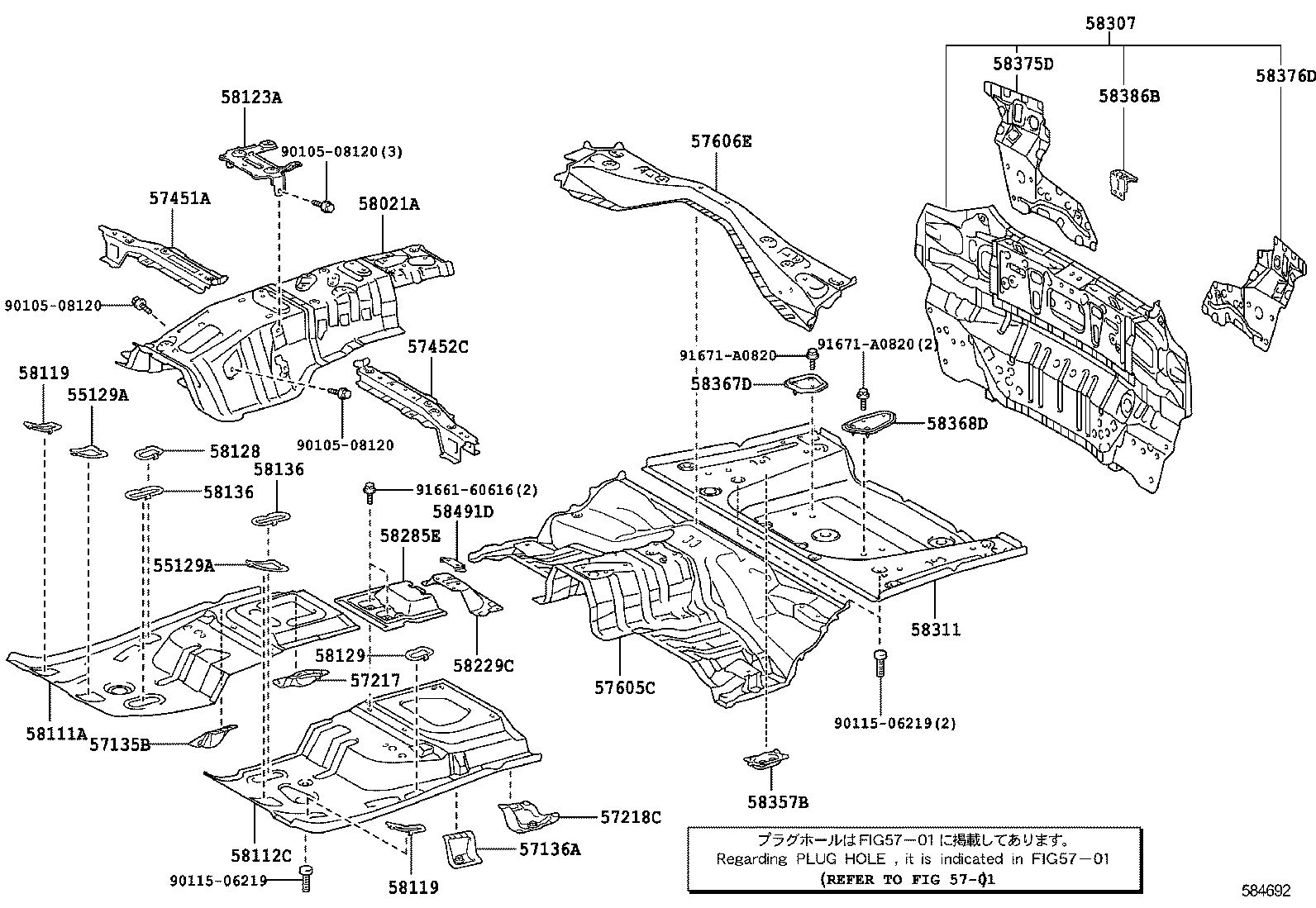

IQ EV | FLOOR PAN LOWER BACK PANEL 55129A - COVER, FRONT FLOOR HOLE 55129A - COVER, FRONT FLOOR HOLE ** Refer Fig 57135B - BRACKET, FRONT FLOOR SIDE, RH 57136A - BRACKET, FRONT FLOOR SIDE, LH 57217 - BRACKET, BODY MOUNTING, NO.4 RH 57218C - BRACKET, BODY MOUNTING, NO.4 LH 57451A - MEMBER, FRONT FLOOR CROSS, RH 57452C - MEMBER, FRONT FLOOR CROSS, LH 57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS 57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 58021A - PANEL SUB-ASSY, HEADER 58111A - PAN, FRONT FLOOR, RH 58112C - PAN, FRONT FLOOR, LH 58119 - PLATE, FRONT FLOOR SIDE, FRONT 58119 - PLATE, FRONT FLOOR SIDE, FRONT 58123A - SUPPORT, SHIFT & SELECT LEVER 58128 - PLATE, FRONT FLOOR, NO.1 58129 - PLATE, FRONT FLOOR, NO.2 58136 - COVER, FRONT FLOOR HOLE 58136 - COVER, FRONT FLOOR HOLE 58229C - PANEL, BATTERY SERVICE HOLE 58285E - COVER, CENTER FLOOR HOLE 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58357B - BRACKET, ACTUATOR COVER, NO.3 RH 58367D - BRACKET, CHARGE TUBE 58368D - BRACKET, CHARGE TUBE, NO.2 58375D - REINFORCEMENT, BODY LOWER BACK PANEL, RH 58376D - REINFORCEMENT, BODY LOWER BACK, LH 58386B - BRACKET, REAR BUMPER COVER, NO.2 58491D - PLATE, BATTERY SERVICE COVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
