TOYOTA IQ EV KPJ10L-CGDSSW / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

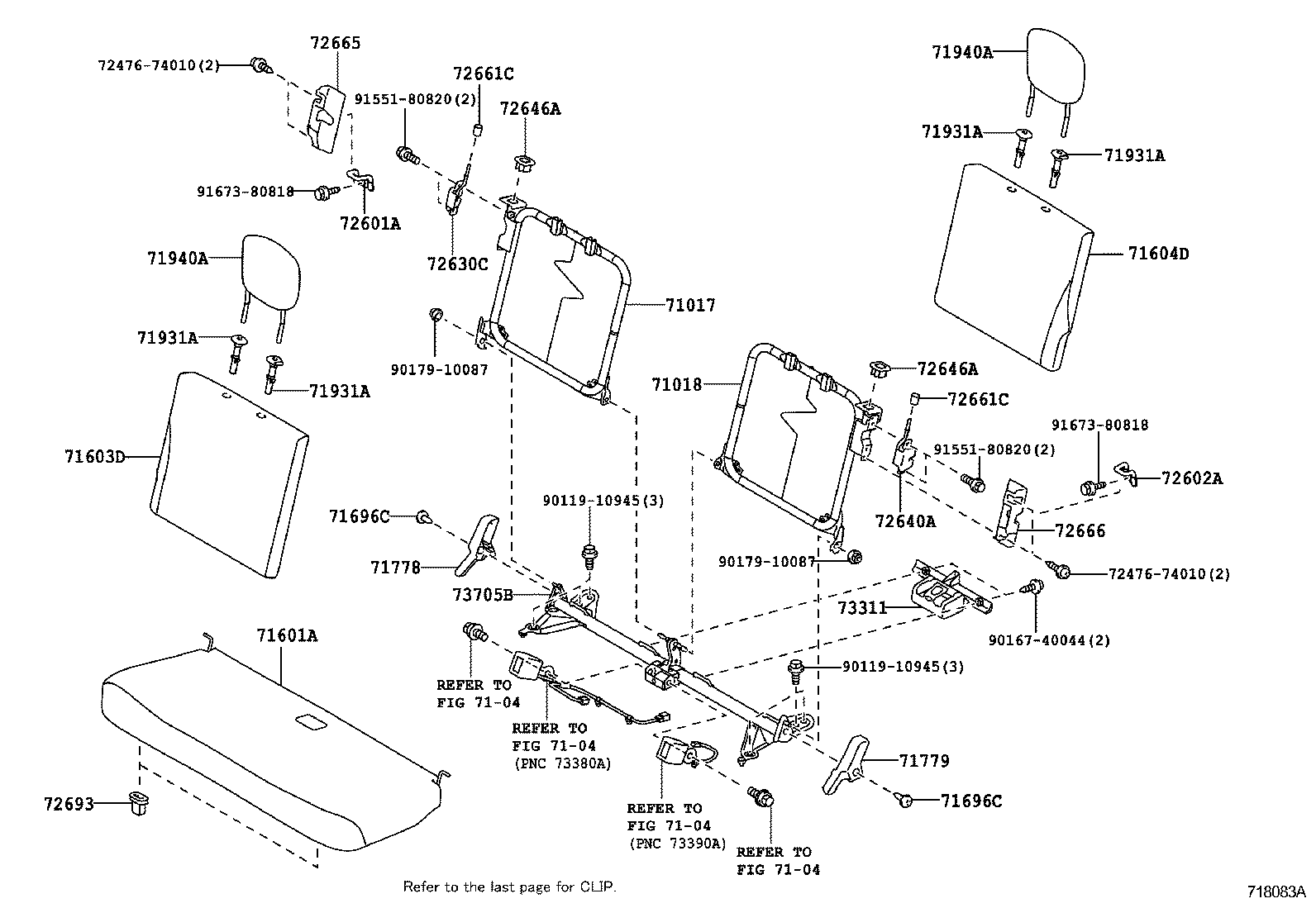

REAR SEAT SEAT TRACK

(1209- )

IQ EV | REAR SEAT SEAT TRACK 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71601A - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH 71696C - CLIP, REAR SEAT PROTECTOR 71696C - CLIP, REAR SEAT PROTECTOR 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71940A - HEADREST ASSY, REAR SEAT ** Std Part ** Std Part 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH 72630C - LOCK ASSY, REAR SEAT BACK, RH 72640A - LOCK ASSY, REAR SEAT BACK, LH 72646A - GROMMET, REAR SEAT BACK STOP BUTTON 72646A - GROMMET, REAR SEAT BACK STOP BUTTON 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE 72665 - COVER, REAR SEAT BACK LOCK, RH 72666 - COVER, REAR SEAT BACK LOCK, LH 72693 - HOOK, REAR SEAT CUSHION LOCK 73311 - COVER, REAR SEAT BELT BUCKLE, UPPER 73705B - BRACKET SUB-ASSY, CROSS ANCHOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
