TOYOTA IQ EV KPJ10L-CGDSSW / ELECTRICAL / EV CHARGER DC DC CONVERTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

EV CHARGER DC DC CONVERTER

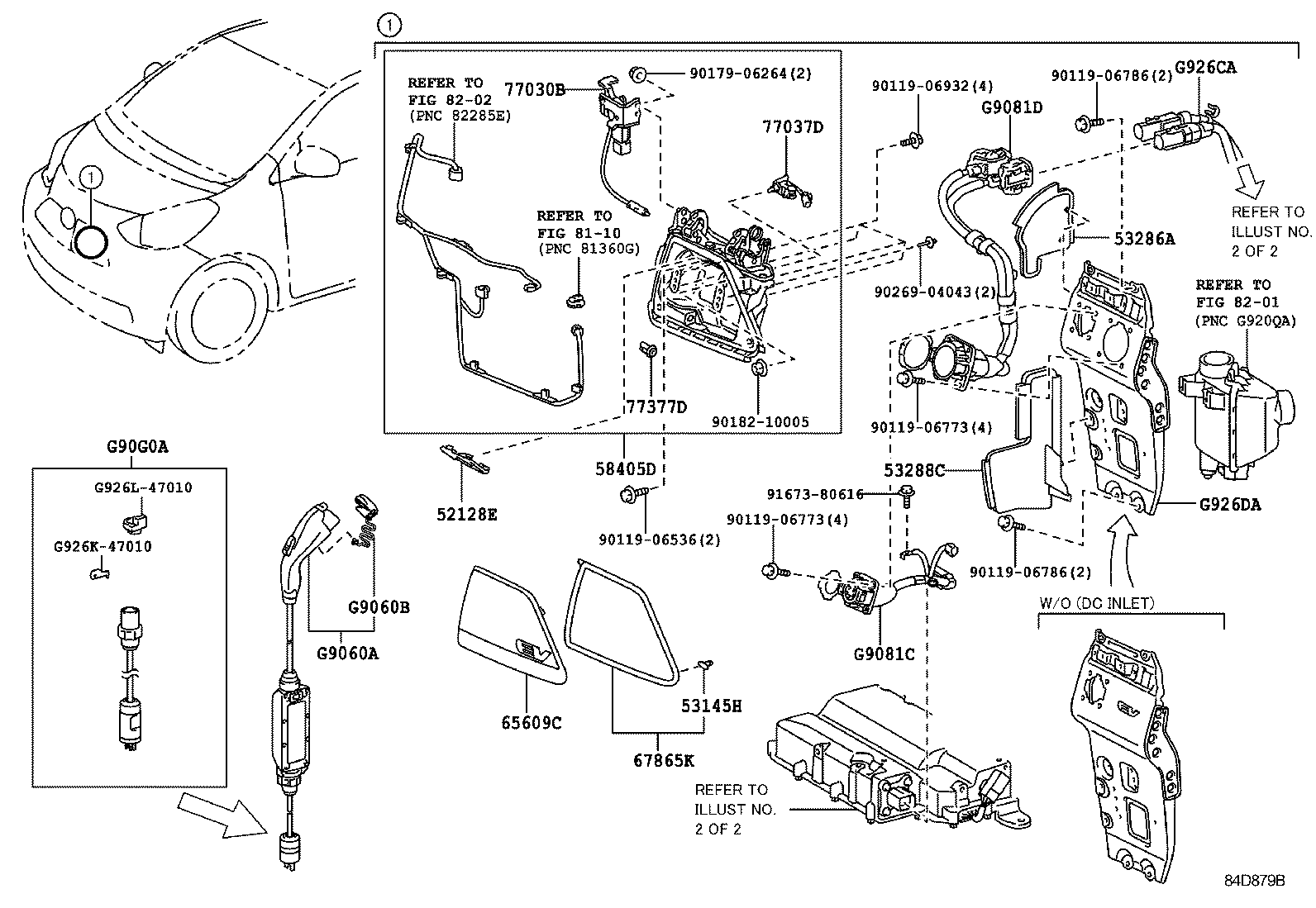

LID ILLUST NO. 1 OF 2(1209- )

IQ EV | EV CHARGER DC DC CONVERTER 52128E - COVER, FRONT BUMPER HOLE, LH 53145H - CLIP, RADIATOR GRILLE 53286A - SEAL, RADIATOR SIDE AIR, LH 53288C - EXTENSION, RADIATOR SUPPORT, LH 58405D - LID SUB-ASSY, BATTERY CHARGER CONNECTOR BOX 65609C - LID SUB-ASSY, INSPECTION OPENING, L/COLOR 67865K - WEATHERSTRIP, SEPARATION DOOR 77030B - LOCK ASSY, CHARGE LID W/MOTOR 77037D - LOCK SUB-ASSY, CHARGING PORT OPENING LID 77377D - RETAINER, CHARGING PORT OPENING LID LOCK ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G9060A - CABLE ASSY, ELECTRIC VEHICLE CHARGER G9060B - COVER, CONNECTOR G9081C - CABLE, AC CHARGER INLET G9081D - CABLE, DC CHARGER INLET G90G0A - PLUG ASSY, CABLE EV CHARGER G926CA - WIRE, EV CHARGER G926DA - BRACKET, EV CHARGE CONNECTOR ** Std Part ** Std Part
