TOYOTA IQ EV KPJ10L-CGDSSW / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SHIFT LEVER RETAINER

(1209- )

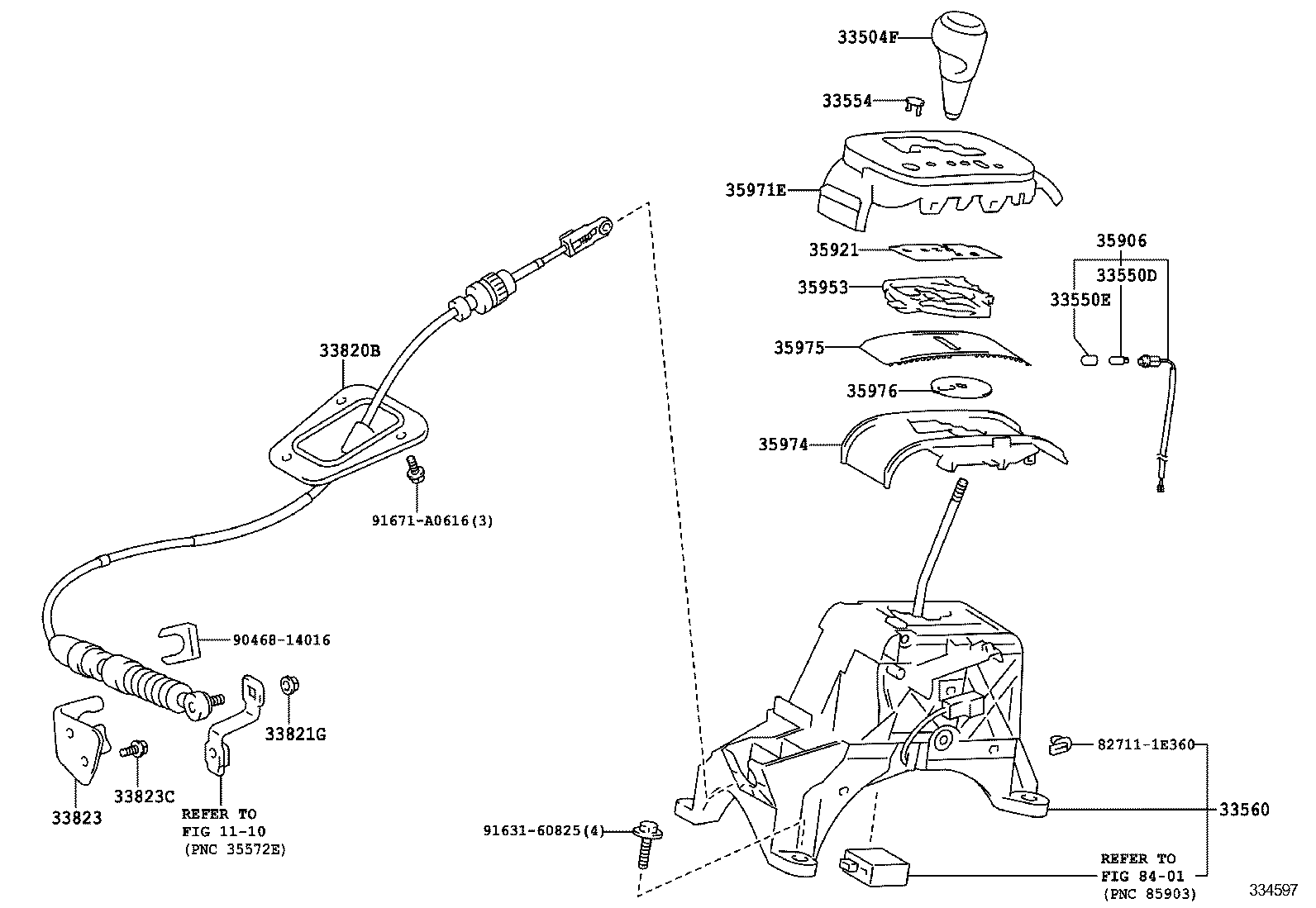

IQ EV | SHIFT LEVER RETAINER ** Refer Fig 33504F - KNOB SUB-ASSY, SHIFT LEVER 33550D - BULB, POSITION INDICATOR LAMP 33550E - CAP, POSITION INDICATOR LAMP 33554 - CAP, SHIFT LEVER 33560 - UNIT ASSY, SHIFT LOCK CONTROL 33820B - CABLE ASSY, TRANSMISSION CONTROL 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35921 - PLATE, CONTROL POSITION INDICATOR 35953 - GUIDE, POSITION INDICATOR LIGHT 35971E - HOUSING, POSITION INDICATOR 35974 - HOUSING, POSITION INDICATOR, LOWER 35975 - COVER, SLIDE (FOR POSITION INDICATOR) 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part
