TOYOTA AYGO KGB10R-AHGGKW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FUEL TANK TUBE

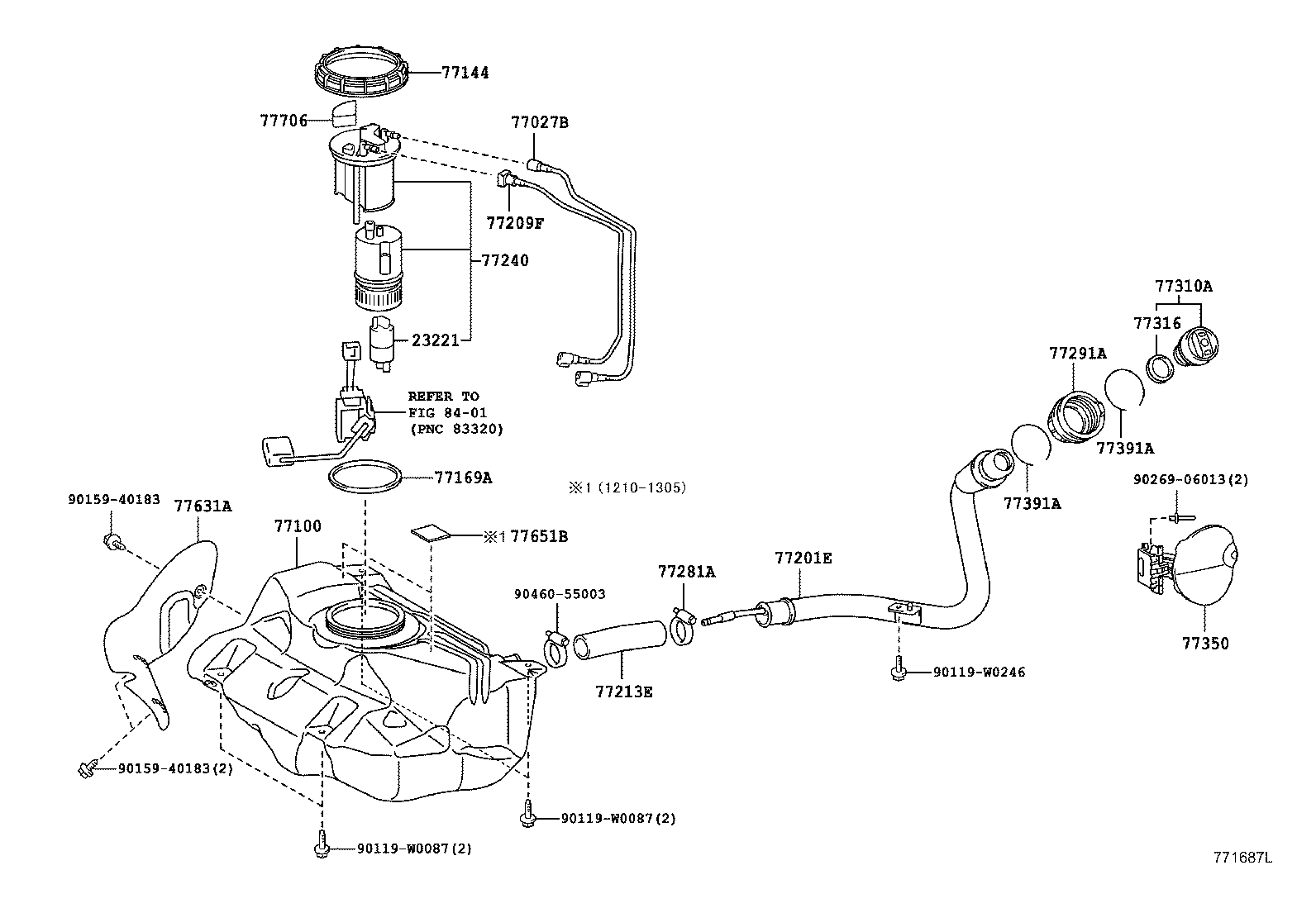

FUEL TANK ILLUST NO. 1 OF 2(0502- )KGB10

AYGO | FUEL TANK TUBE 23221 - PUMP, FUEL 77027B - TUBE SUB-ASSY, FUEL EMISSION, NO.1 77100 - TANK ASSY, FUEL 77144 - RETAINER, FUEL PUMP GAUGE 77169A - GASKET, FUEL SUCTION TUBE SET 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77209F - TUBE SUB-ASSY, FUEL TANK MAIN 77213E - HOSE, FUEL TANK TO FILLER PIPE 77240 - TUBE ASSY, FUEL SUCTION 77281A - CLAMP, FUEL FILLER PIPE 77291A - SHIELD, FUEL TANK FILLER PIPE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77391A - RING, FUEL INLET BOX 77391A - RING, FUEL INLET BOX 77631A - PROTECTOR, FUEL TANK, LOWER CENTER 77651B - CUSHION, FUEL TANK 77706 - FILTER SUB-ASSY, CHARCOAL CANISTER ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
