TOYOTA AYGO KGB10R-AHGGKW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

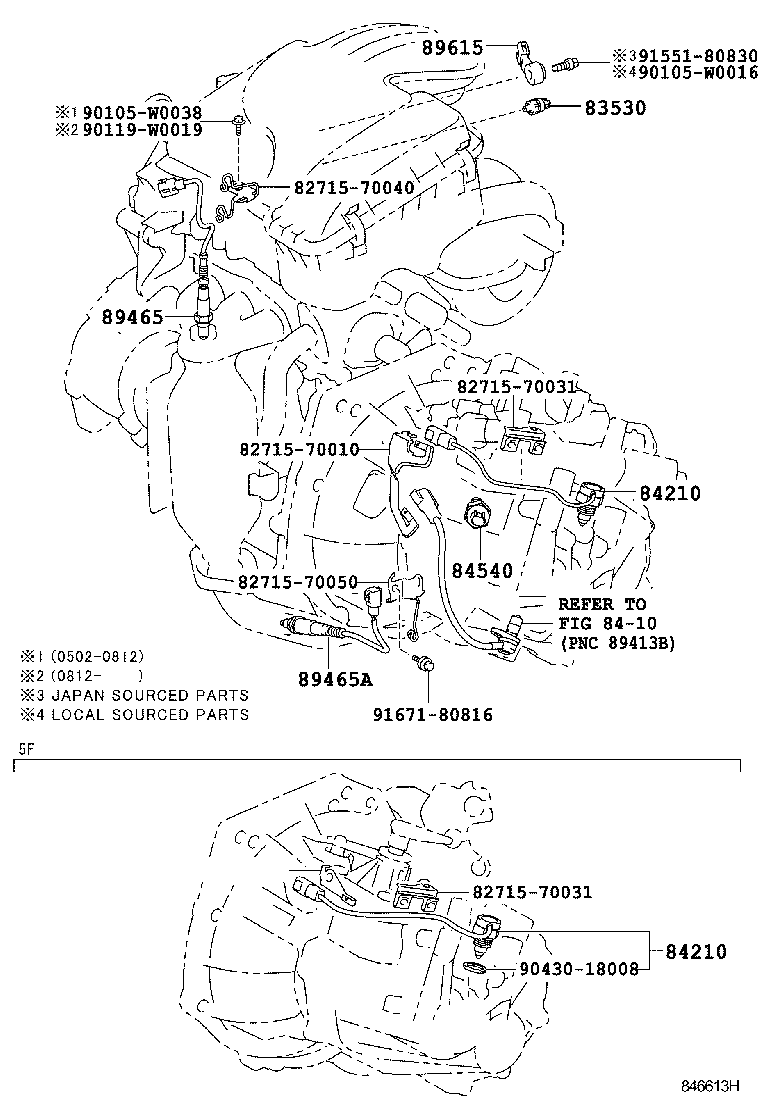

ENGINE & TRANSMISSION ILLUST NO. 1 OF 7(0502- )KGB10

 AYGO |  SWITCH RELAY COMPUTER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) ** Refer Fig 84210 - SWITCH ASSY, BACK-UP LAMP 84210 - SWITCH ASSY, BACK-UP LAMP 84540 - SWITCH ASSY, NEUTRAL START 89465 - SENSOR, OXYGEN 89465A - SENSOR, OXYGEN NO.2 89615 - SENSOR, KNOCK CONTROL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
