TOYOTA CAMRY HYBRID AVV50R-AEXNBW / TOOL-ENGINE-FUEL / EXHAUST GAS RECIRCULATION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

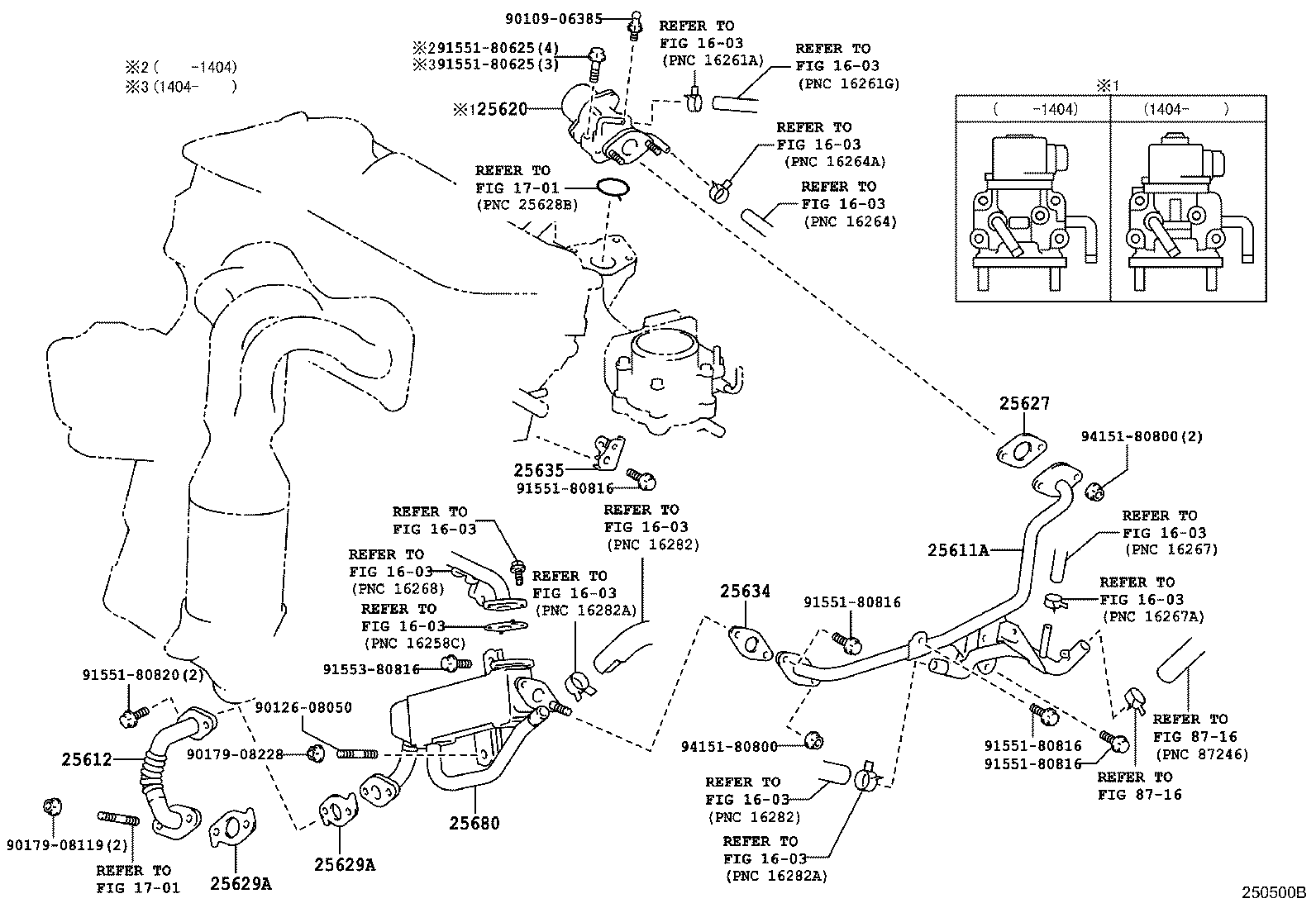

EXHAUST GAS RECIRCULATION SYSTEM

(1310- )2ARFXE..RHD

 CAMRY HYBRID |  EXHAUST GAS RECIRCULATION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 25611A - PIPE, EGR, NO.1 25612 - PIPE, EGR, NO.2 25620 - VALVE ASSY, EGR 25627 - GASKET, EGR VALVE 25629A - GASKET, EGR PIPE, NO.2 25629A - GASKET, EGR PIPE, NO.2 25634 - GASKET, EGR PIPE 25635 - BRACKET, EGR PIPE, NO.1 25680 - COOLER ASSY, EGR ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
