TOYOTA YARIS JPP NSP130R-AHXNKW / BODY / BACK DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BACK DOOR PANEL GLASS

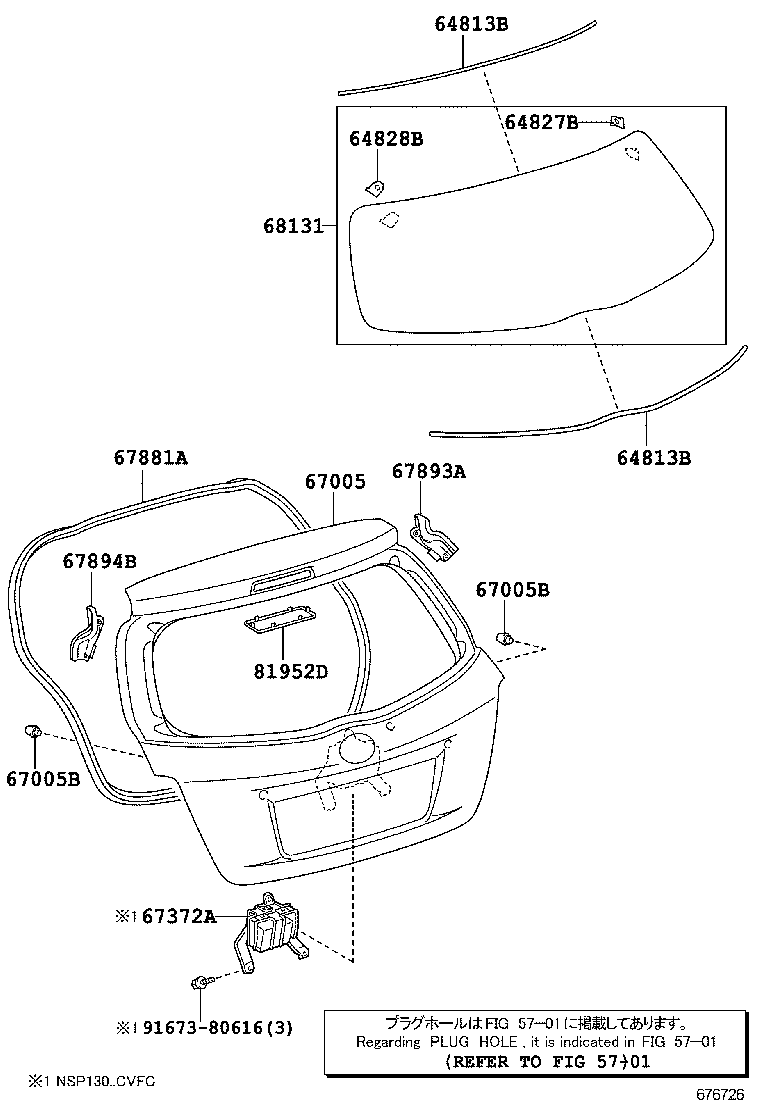

DOOR PANEL ILLUST NO. 1 OF 2(1108- )

 YARIS JPP |  BACK DOOR PANEL GLASS ** Refer Fig 64813B - DAM, BACK WINDOW GLASS ADHESIVE 64813B - DAM, BACK WINDOW GLASS ADHESIVE 64827B - CLIP, BACK WINDOW GLASS, RH 64828B - CLIP, BACK WINDOW GLASS, LH 67005 - PANEL SUB-ASSY, BACK DOOR 67005B - CUSHION(FOR BACK DOOR PANEL) 67005B - CUSHION(FOR BACK DOOR PANEL) 67372A - WEIGHT, BACK DOOR 67881A - WEATHERSTRIP, BACK DOOR 67893A - PROTECTOR, BACK DOOR PANEL, NO.1 67894B - PROTECTOR, BACK DOOR PANEL, NO.2 68131 - GLASS, BACK DOOR 81952D - COVER, REAR LAMP  ** Std Part
