TOYOTA AURIS HYBRID UKP ZRE185L-DHXNPW / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SIDE MEMBER

RH (1210- )HB

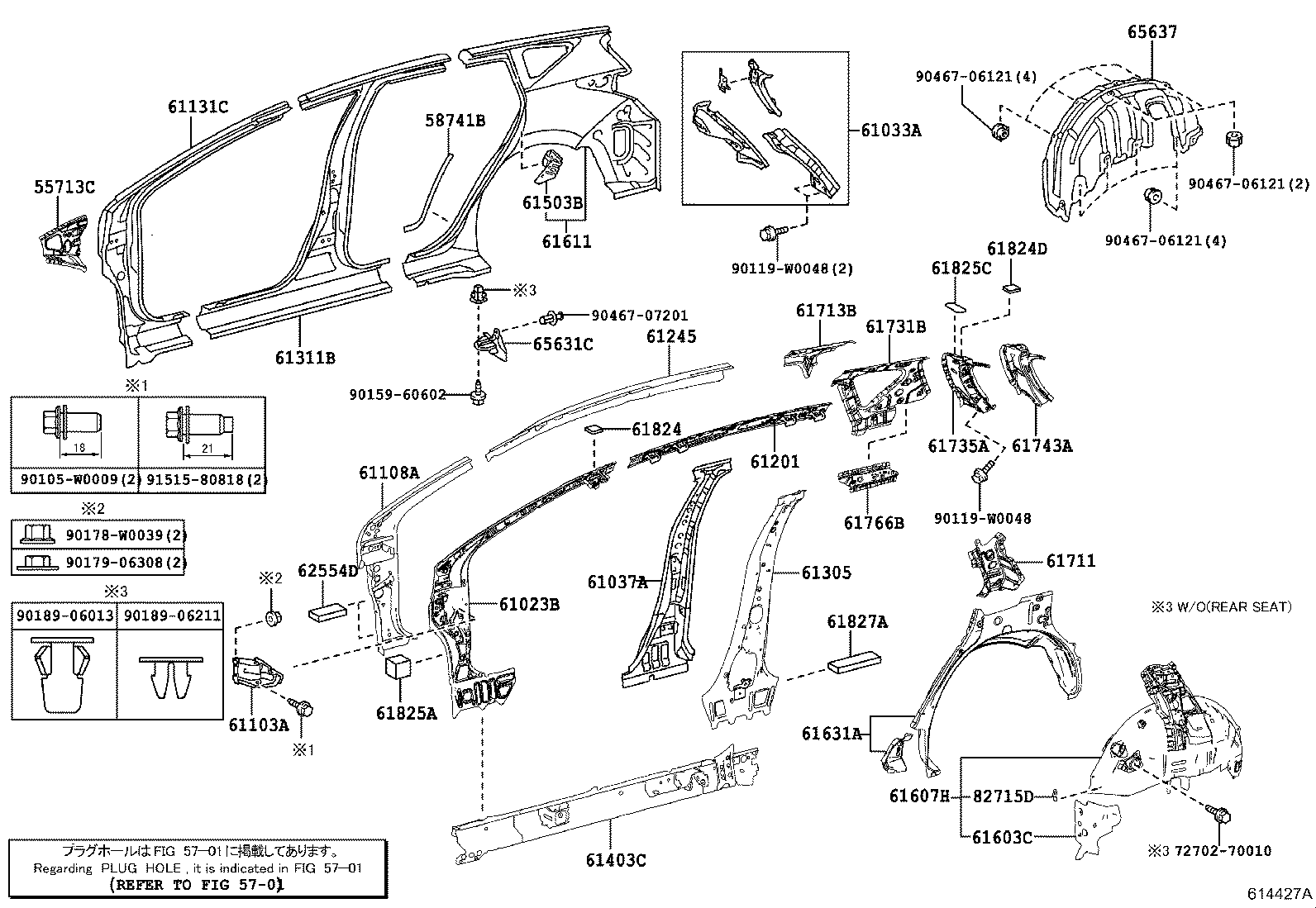

AURIS HYBRID UKP | SIDE MEMBER 55713C - PANEL, COWL TOP SIDE, RH ** Refer Fig 58741B - PROTECTOR, QUARTER PANEL, RH 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH 61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH 61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH 61131C - PILLAR, FRONT BODY, OUTER RH 61201 - RAIL SUB-ASSY, ROOF SIDE, RH 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH 61311B - PILLAR, CENTER BODY, OUTER RH 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH 61607H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH 61611 - PANEL, QUARTER, RH 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH 61711 - PANEL, ROOF SIDE, OUTER RH 61713B - REINFORCE, ROOF SIDE, OUTER RH 61731B - PANEL, ROOF SIDE, INNER RH 61735A - PANEL, ROOF SIDE, INNER REAR RH 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH 61824 - PLATE, NOISE CONTROL, NO.1 61824D - PLATE, NOISE CONTROL, NO.1 61825A - PLATE, NOISE CONTROL, NO.2 61825C - PAD, NOISE SHUTTER, NO.2 61827A - PLATE, NOISE CONTROL, NO.4 62554D - PAD, FRONT PILLER 65631C - PLATE, REAR WHEEL HOUSE, FRONT RH 65637 - LINER, REAR WHEEL HOUSE, RH ** Std Part 82715D - BRACKET, WIRING HARNESS CLAMP ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
