TOYOTA AURIS HYBRID UKP ZRE185L-DWXNPW / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FLOOR PAN LOWER BACK PANEL

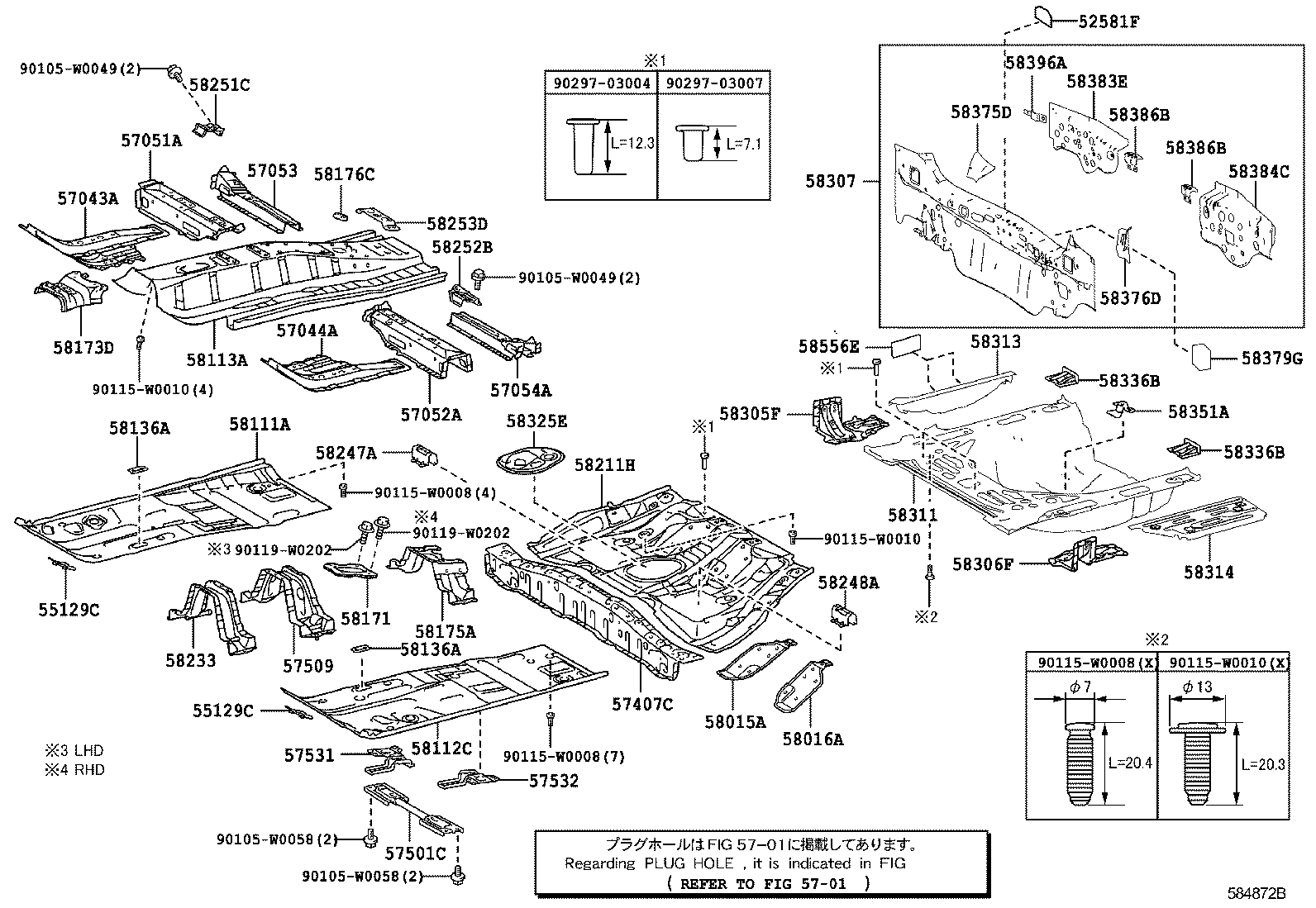

FLOOR PANEL & LOWER BACK PANEL ILLUST NO. 1 OF 3(1306- )ADE186,NDE180,NRE180,ZRE185..WG

 AURIS HYBRID UKP |  FLOOR PAN LOWER BACK PANEL 52581F - PROTECTOR, REAR BUMPER 55129C - COVER, DASH PANEL HOLE 55129C - COVER, DASH PANEL HOLE ** Refer Fig 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH 57407C - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 57501C - BRACE SUB-ASSY, FRONT FLOOR, CENTER 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER 57531 - BRACKET, FRONT FLOOR CENTER BRACE, RH 57532 - BRACKET, FRONT FLOOR CENTER BRACE, LH 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH 58111A - PAN, FRONT FLOOR, RH 58112C - PAN, FRONT FLOOR, LH 58113A - PANEL, FRONT FLOOR, CENTER 58136A - COVER, FRONT FLOOR SERVICE HOLE 58136A - COVER, FRONT FLOOR SERVICE HOLE 58171 - REINFORCEMENT, PARKING BRAKE BASE 58173D - BRACKET, COMPUTER MOUNTING, NO.4 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 58176C - REINFORCEMENT, PARKING BRAKE BASE, NO.2 58211H - PAN, CENTER FLOOR 58233 - BRACKET, EXHAUST PIPE MOUNTING 58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH 58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH 58251C - BRACE, FLOOR PANEL, FRONT RH 58252B - BRACE, FLOOR PANEL, FRONT LH 58253D - BRACKET, PARKING BRAKE CABLE 58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH 58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313 - PANEL, REAR FLOOR SIDE, RH 58314 - PANEL, REAR FLOOR SIDE, LH 58325E - COVER, REAR FLOOR SERVICE HOLE 58336B - REINFORCEMENT, REAR FLOOR PAN 58336B - REINFORCEMENT, REAR FLOOR PAN 58351A - BRACKET, SPARE WHEEL CARRIER 58375D - REINFORCEMENT, BODY LOWER BACK PANEL, RH 58376D - REINFORCEMENT, BODY LOWER BACK, LH 58379G - PAD, BODY LOWER BACK 58383E - REINFORCEMENT, BODY LOWER BACK, NO.2 RH 58384C - REINFORCEMENT, BODY LOWER BACK, NO.2 LH 58386B - BRACKET, REAR BUMPER COVER, NO.2 58386B - BRACKET, REAR BUMPER COVER, NO.2 58396A - BRACKET, WIRE HARNESS CLAMP 58556E - SILENCER, REAR FLOOR, NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
