TOYOTA AVENSIS ADT271R-AETGXW / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

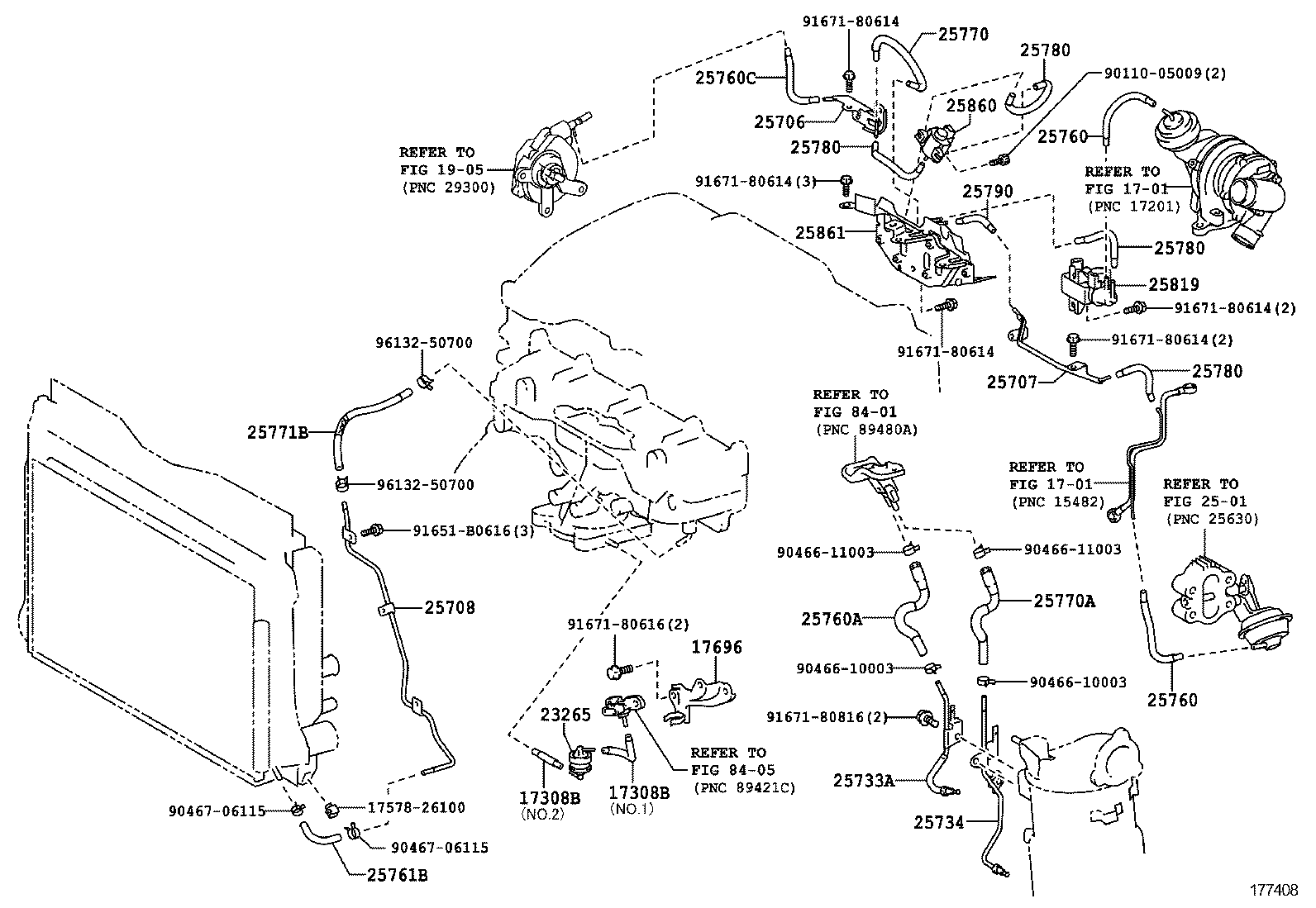

VACUUM PIPING

*119 (1110- )2AD#

 AVENSIS |  VACUUM PIPING ** Refer Fig ** Refer Fig 17308B - HOSE SUB-ASSY, VACUUM 17308B - HOSE SUB-ASSY, VACUUM  ** Std Part 17696 - BRACKET, GAS FILTER ** Refer Fig 23265 - FILTER, GAS, NO.1 ** Refer Fig 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 25708 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.3 25733A - PIPE, VACUUM, NO.1 25734 - PIPE, VACUUM, NO.2 25760 - HOSE ASSY, VACUUM TRANSMITTING 25760 - HOSE ASSY, VACUUM TRANSMITTING 25760A - HOSE ASSY, VACUUM TRANSMITTING 25760C - HOSE ASSY, VACUUM TRANSMITTING, NO.3 25761B - HOSE, VACCUM TRANSMITTING, NO.1 25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2 25770A - HOSE ASSY, VACUUM TRANSMITTING, NO.2 25771B - HOSE, VACCUM TRANSMITTING, NO.2 25780 - HOSE ASSY, VACUUM TRANSMITTING, NO.3 25780 - HOSE ASSY, VACUUM TRANSMITTING, NO.3 25780 - HOSE ASSY, VACUUM TRANSMITTING, NO.3 25780 - HOSE ASSY, VACUUM TRANSMITTING, NO.3 25790 - HOSE ASSY, VACUUM TRANSMITTING, NO.4 25819 - VALVE ASSY, VACUUM REGULATING 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25861 - BRACKET, VACUUM SWITCHING VALVE ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
