TOYOTA DYNA XZU710L-PKMQKV3 / BODY / FRONT FLOOR PANEL FRONT FLOOR MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FRONT FLOOR PANEL FRONT FLOOR MEMBER

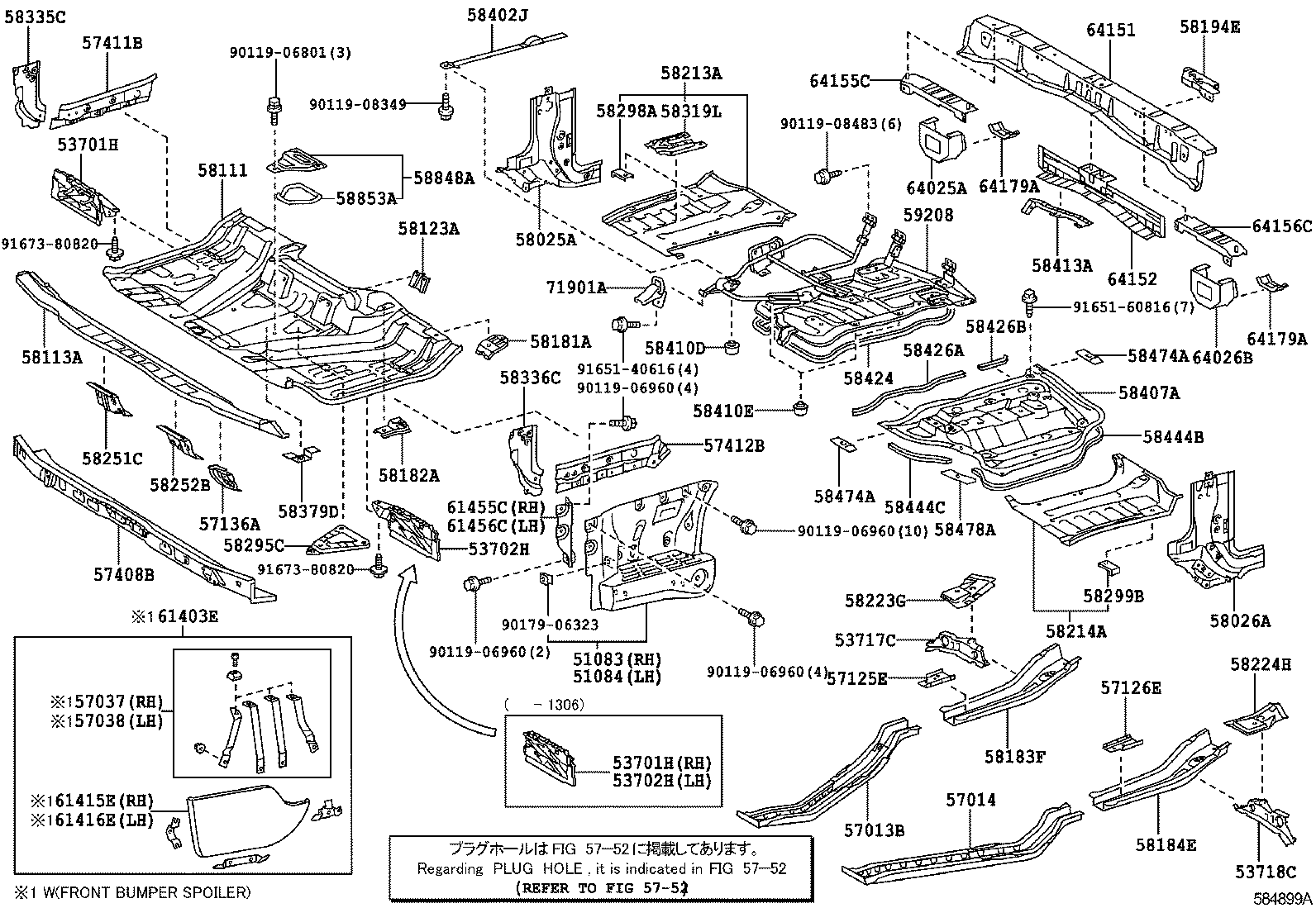

ILLUST NO. 1 OF 2(1305- )XZU710..GCC..IV3

DYNA | FRONT FLOOR PANEL FRONT FLOOR MEMBER 51083 - STEP SUB-ASSY, RH 51084 - STEP SUB-ASSY, LH 53701H - APRON SUB-ASSY, FRONT FENDER, RH 53701H - APRON SUB-ASSY, FRONT FENDER, RH 53702H - APRON SUB-ASSY, FENDER, LH 53702H - APRON SUB-ASSY, FENDER, LH 53717C - APRON, FRPNT FENDER, NO.2 RH 53718C - APRON, FRONT FENDER, NO.2 LH 57013B - MEMBER SUB-ASSY, FLOOR, FRONT RH 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH 57037 - STAY SUB-ASSY, FRONT STEP, RH 57038 - STAY SUB-ASSY, FRONT STEP, LH 57125E - REINFORCEMENT, FRONT SIDE MEMBER, RH 57126E - REINFORCEMENT, FRONT SIDE MEMBER, LH 57136A - BRACKET, FRONT FLOOR SIDE, LH 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS 57411B - MEMBER, FLOOR SIDE, INNER RH 57412B - MEMBER, FLOOR SIDE, INNER LH ** Refer Fig 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH 58111 - PAN, FRONT FLOOR 58113A - PANEL, FRONT FLOOR, CENTER 58123A - SUPPORT, SHIFT & SELECT LEVER 58181A - RETAINER, SEAT RAIL, FRONT 58182A - RETAINER, SEAT RAIL, NO.2 58183F - REINFORCEMENT, REAR MOUNTING, RH 58184E - REINFORCEMENT, REAR MOUNTING, LH 58194E - RETAINER, ENGINE COVER HINGE 58213A - PANEL, SEAT FLOOR, RH 58214A - PANEL, SEAT FLOOR, LH 58223G - REINFORCEMENT, SEAT SET, NO.1 58224H - REINFORCEMENT, SEAT SET, NO.2 58251C - BRACE, FLOOR PANEL, FRONT RH 58252B - BRACE, FLOOR PANEL, FRONT LH 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH 58319L - BRACKET, FRONT FLOOR SIDE PANEL 58335C - PLATE, FLOOR SIDE, FRONT RH 58336C - PLATE, FLOOR SIDE, FRONT LH 58379D - BRACKET, HEATER HOSE CLAMP 58402J - BAND SUB-ASSY, ENGINE SERVICE COVER SUPPORT 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB 58410D - CUSHION, NO.1 58410E - CUSHION, NO.3 58413A - REINFORCEMENT, ENGINE SUB COVER, NO.2 58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1 58426A - PROTECTOR, ENGINE SERVICE HOLE 58426B - PROTECTOR, ENGINE SUB COVER 58444B - PACKING, ENGINE SUB COVER 58444C - PACKING, ENGINE SUB COVER, NO.1 58474A - PACKING, ENGINE SUB COVER, NO.2 58474A - PACKING, ENGINE SUB COVER, NO.2 58478A - PACKING, ENGINE SUB COVER, NO.2 58848A - COVER, SHIFT LEVER HOLE 58853A - PACKING, SHIFT LEVER HOLE 59208 - COVER SUB-ASSY, ENGINE SERVIS HOLE MAIN 61403E - PANEL SUB-ASSY, FRONT STEP 61415E - PANEL, FRONT STEP UNDER, RH 61416E - PANEL, FRONT STEP UNDER, LH 61455C - RETAINER, FRONT STEP, RH 61456C - RETAINER, FRONT STEP, LH 64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH 64151 - FRAME, BACK 64152 - FRAME, BACK, LOWER 64155C - PLATE, BACK FRAME, RH 64156C - PLATE, BACK FRAME, LH 64179A - PATCH, REAR MOUNTING BRACKET 64179A - PATCH, REAR MOUNTING BRACKET 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
