TOYOTA DYNA XZU710L-PKMQKV3 / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

MANIFOLD

(1107- )N04C..XZU710,720..GCC

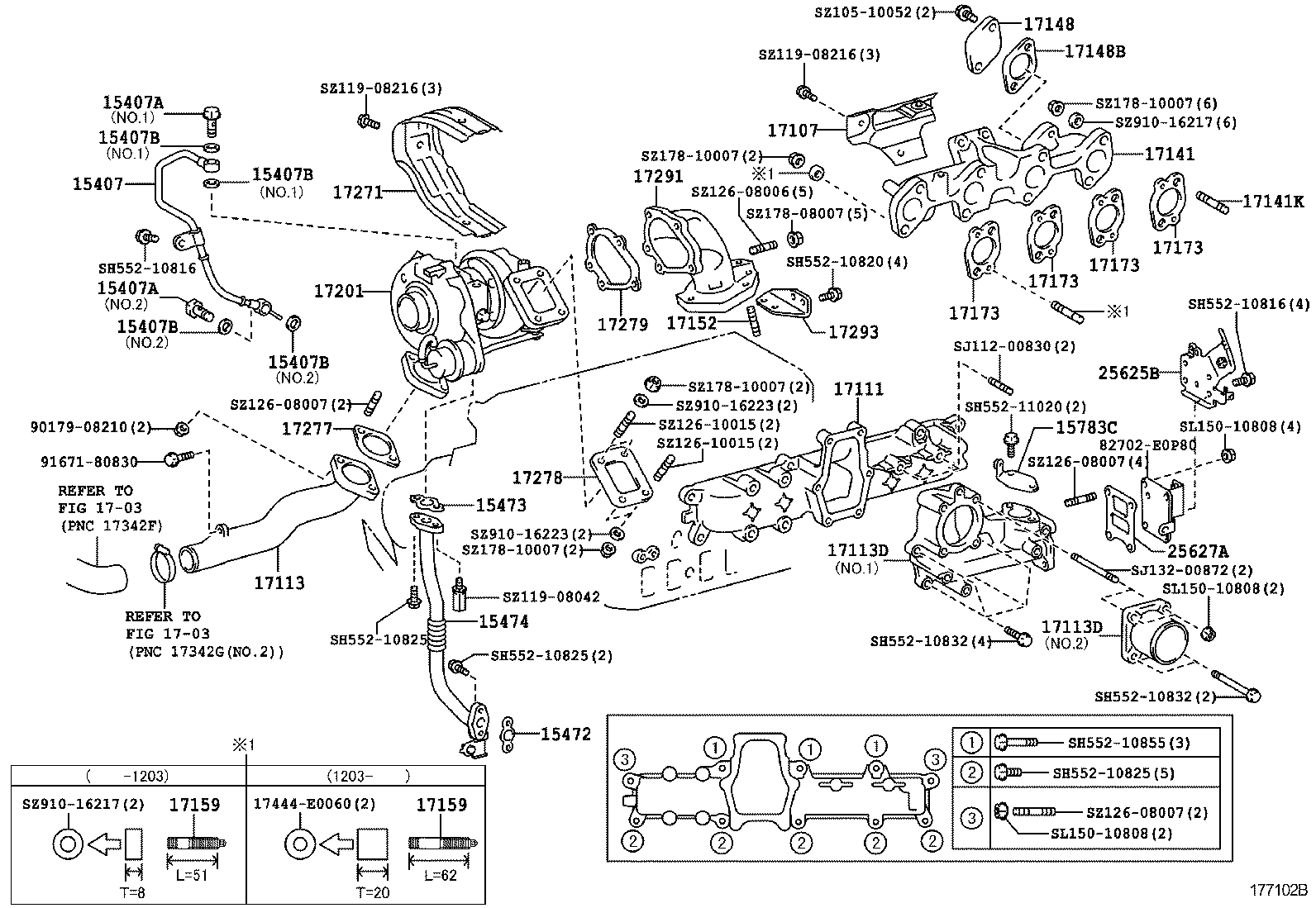

DYNA | MANIFOLD 15407 - PIPE SUB-ASSY, TURBO OIL INLET 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15472 - GASKET, TURBO OIL OUTLET, NO.1 15473 - GASKET, TURBO OIL OUTLET, NO.2 15474 - PIPE, TURBO OIL OUTLET 15783C - BRACKET, OIL PIPE CLAMP ** Refer Fig ** Refer Fig 17107 - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT 17111 - MANIFOLD, INTAKE 17113 - PIPE, INTAKE 17113D - PIPE, INTAKE, NO.1 17113D - PIPE, INTAKE, NO.1 17141 - MANIFOLD, EXHAUST 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) 17148 - PLATE, EXHAUST MANIFOLD(FOR EGR INLET) 17148B - GASKET, EGR INLET 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17201 - TURBOCHARGER SUB-ASSY 17271 - INSULATOR, TURBO, NO.1 17277 - GASKET, COMPRESSOR OUTLET 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17279 - GASKET, TURBINE OUTLET ELBOW 17291 - ELBOW, TURBINE OUTLET 17293 - STAY, TURBOCHARGER ** Std Part 25625B - BRACKET, EGR VALVE 25627A - GASKET, EGR HOLE COVER PLATE, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
