TOYOTA DYNA XZU730L-TKFRSW3 / TOOL-ENGINE-FUEL / INJECTION PUMP ASSEMBLY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

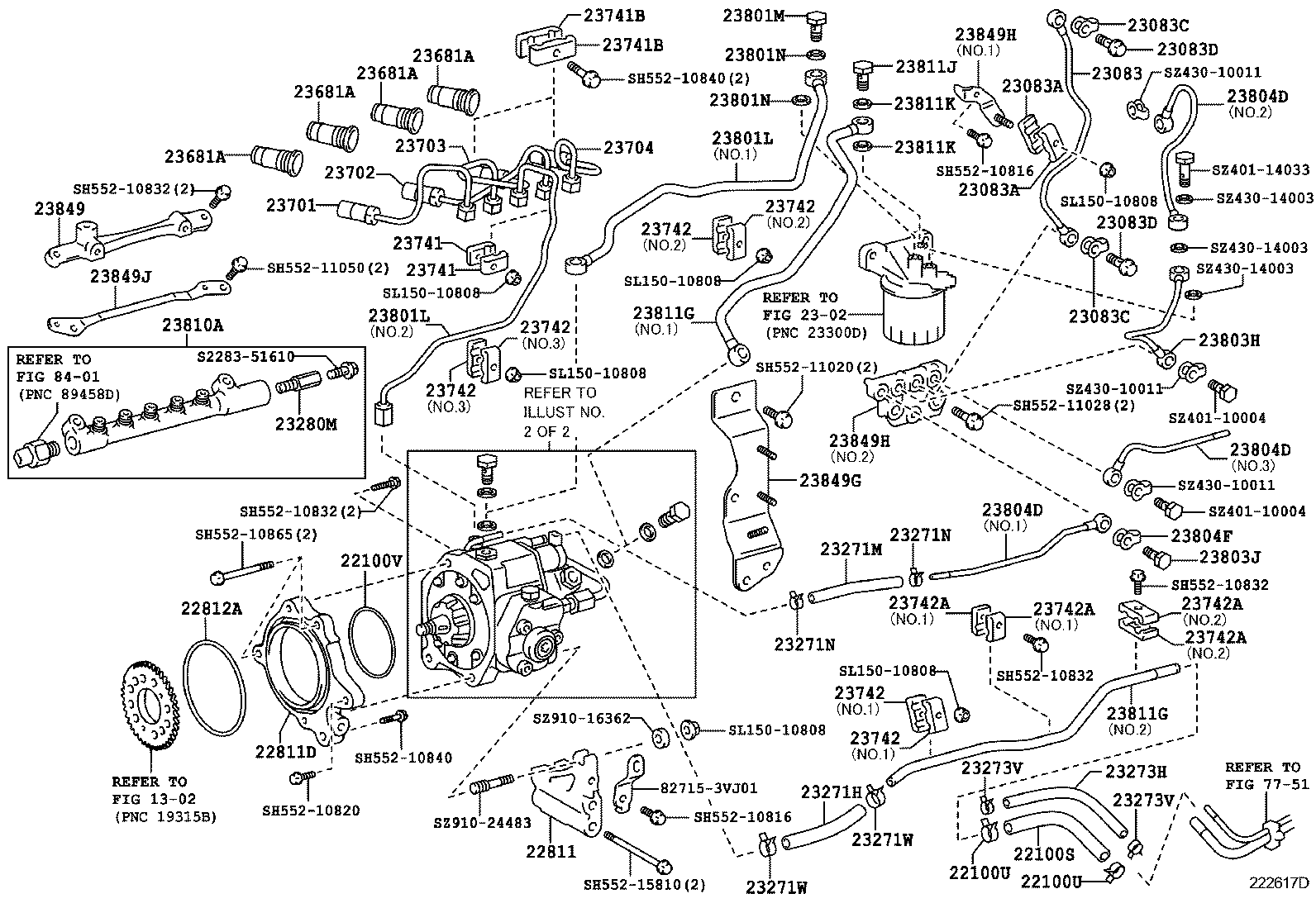

INJECTION PUMP ASSEMBLY

ILLUST NO. 1 OF 2(1306- )N04C..EUR

DYNA | INJECTION PUMP ASSEMBLY ** Refer Fig 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) 22100V - RING, O(FOR INJECTION PUMP) 22811 - STAY, INJECTION PUMP, NO.1 22811D - STAY, INJECTION PUMP, NO.2 22812A - RING, O ** Refer Fig 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 23083A - CLAMP, NOZZLE LEAKAGE 23083A - CLAMP, NOZZLE LEAKAGE 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) 23271H - HOSE, FUEL, NO.1 23271M - HOSE, FUEL 23271N - CLIP, HOSE 23271N - CLIP, HOSE 23271W - CLIP(FOR FUEL HOSE NO.1) 23271W - CLIP(FOR FUEL HOSE NO.1) 23273H - HOSE, FUEL, NO.2 23273V - CLIP(FOR FUEL HOSE NO.2) 23273V - CLIP(FOR FUEL HOSE NO.2) 23280M - LIMITTER ASSY, FUEL PRESSURE 23681A - SEAL, NOZZLE HOLDER 23681A - SEAL, NOZZLE HOLDER 23681A - SEAL, NOZZLE HOLDER 23681A - SEAL, NOZZLE HOLDER 23701 - PIPE SUB-ASSY, INJECTION, NO.1 23702 - PIPE SUB-ASSY, INJECTION, NO.2 23703 - PIPE SUB-ASSY, INJECTION, NO.3 23704 - PIPE SUB-ASSY, INJECTION, NO.4 23741 - CLAMP, INJECTION PIPE, NO.1 23741 - CLAMP, INJECTION PIPE, NO.1 23741B - CLAMP, INJECTION PIPE 23741B - CLAMP, INJECTION PIPE 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23742A - CLAMP, INJECTION PIPE, NO.3 23742A - CLAMP, INJECTION PIPE, NO.3 23742A - CLAMP, INJECTION PIPE, NO.3 23742A - CLAMP, INJECTION PIPE, NO.3 23801L - PIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP) 23801L - PIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP) 23801M - BOLT, UNION 23801N - GASKET 23801N - GASKET 23803H - PIPE SUB-ASSY, FUEL RETURN 23803J - BOLT, UNION(FOR FUEL RETURN PIPE) 23804D - PIPE SUB-ASSY, FUEL, NO.4 23804D - PIPE SUB-ASSY, FUEL, NO.4 23804D - PIPE SUB-ASSY, FUEL, NO.4 23804F - GASKET(FOR FUEL PIPE NO.4) 23810A - RAIL ASSY, COMMON 23811G - PIPE, FUEL, NO.1 23811G - PIPE, FUEL, NO.1 23811J - BOLT, UNION 23811K - GASKET 23811K - GASKET 23849 - SUPPORT, FUEL 23849G - SUPPORT, FUEL PIPE 23849H - SUPPORT, FUEL PIPE 23849H - SUPPORT, FUEL PIPE 23849J - SUPPORT, FUEL PIPE(FOR RAIL ASSY, COMMON) ** Refer Fig ** Std Part ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
