TOYOTA LAND CRUISER 150 KDJ150R-GKFEYW / TOOL-ENGINE-FUEL / MANIFOLD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

MANIFOLD

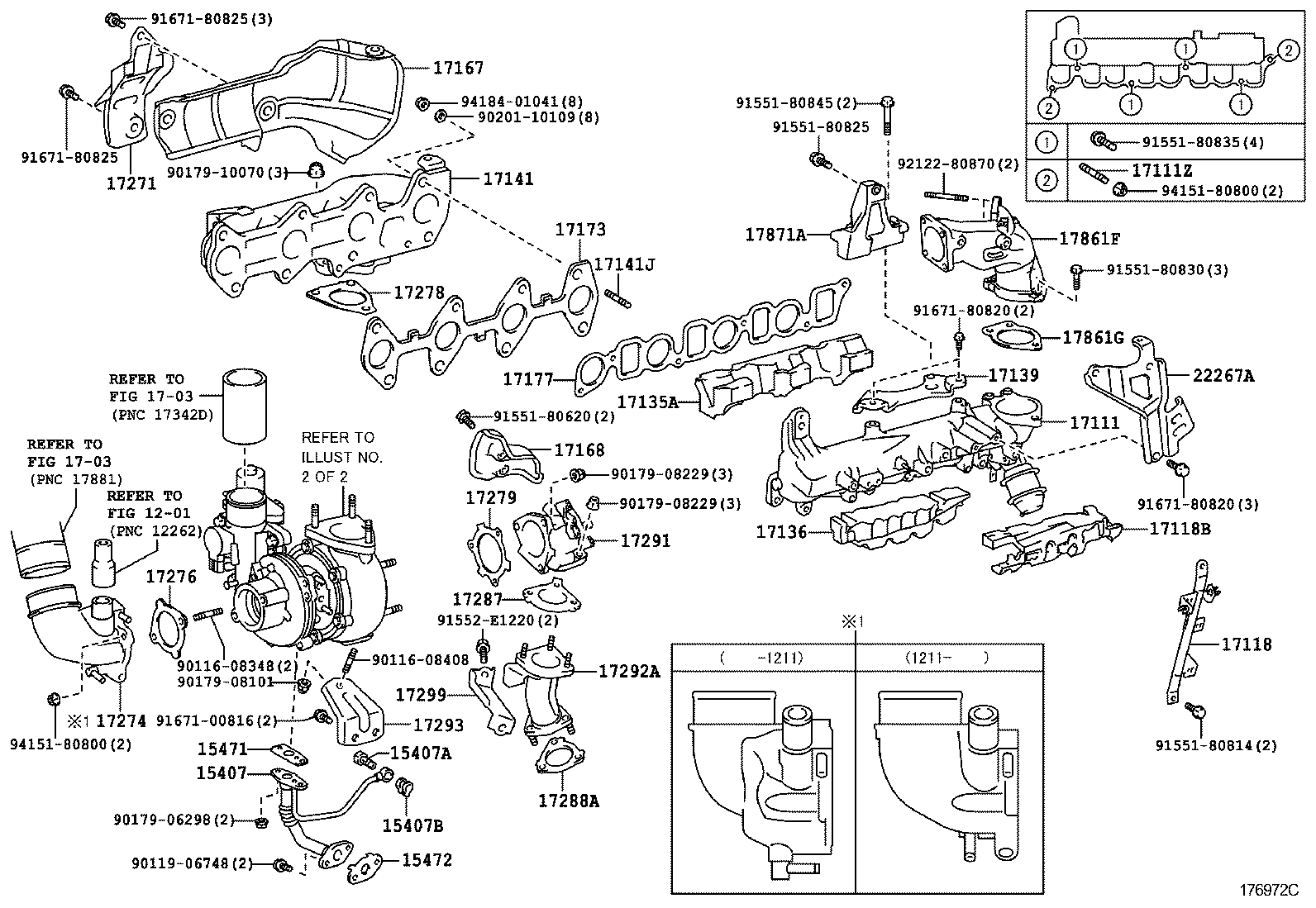

FOR EURO 5 OR EURO 5+ CONFORMITY ILLUST NO. 1 OF 2(1010- )1KDFTV

LAND CRUISER 150 | MANIFOLD ** Refer Fig 15407 - PIPE SUB-ASSY, TURBO OIL INLET 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) 15407B - GASKET(FOR TURBO OIL INLET PIPE) 15471 - GASKET, TURBO OIL INLET 15472 - GASKET, TURBO OIL OUTLET, NO.1 ** Refer Fig ** Refer Fig 17111 - MANIFOLD, INTAKE 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) 17118 - STAY, MANIFOLD 17118B - INSULATOR, INTAKE MANIFOLD 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 17136 - INSULATOR, INTAKE MANIFOLD, NO.2 17139 - STAY, MANIFOLD, NO.2 17141 - MANIFOLD, EXHAUST 17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH) 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 17173 - GASKET, EXHAUST MANIFOLD TO HEAD 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17271 - INSULATOR, TURBO, NO.1 17274 - ELBOW, COMPRESSOR INLET 17276 - GASKET, COMPRESSOR INLET 17278 - GASKET, TURBO TO EXHAUST MANIFOLD 17279 - GASKET, TURBINE OUTLET ELBOW 17287 - GASKET, TURBINE OUTLET ELBOW, NO.2 17288A - GASKET, TURBINE OUTLET ELBOW, NO.3 17291 - ELBOW, TURBINE OUTLET 17292A - ELBOW, TURBINE OUTLET, NO.2 17293 - STAY, TURBOCHARGER 17299 - STAY, TURBINE OUTLET ELBOW 17861F - CONNECTOR, INTAKE AIR 17861G - GASKET, INTAKE AIR CONNECTOR 17871A - STAY, AIR CONNECTOR 22267A - BRACKET, THROTTLE BODY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
