INSTRUMENT PANEL GLOVE COMPARTMENT

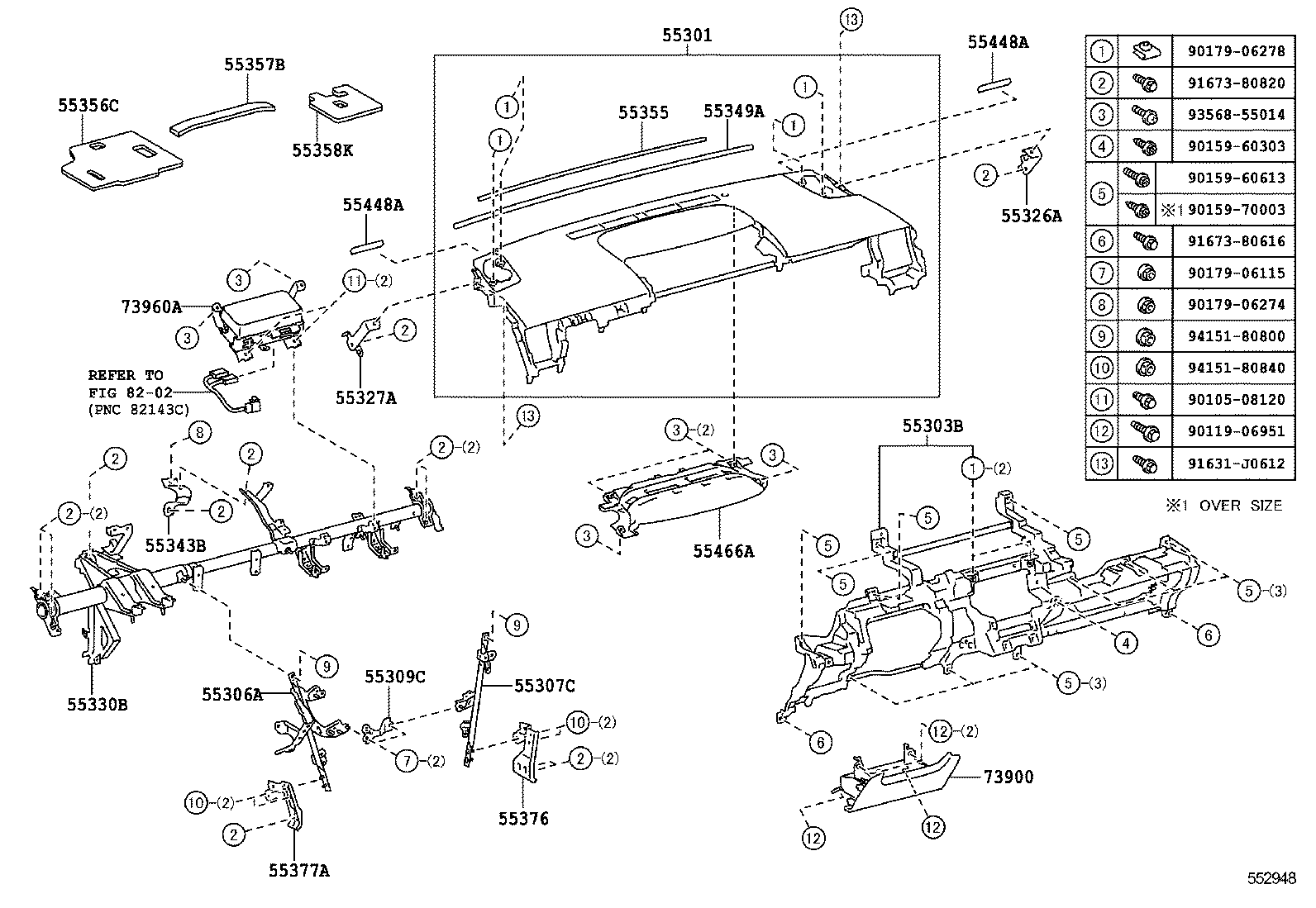

ILLUST NO. 1 OF 2(1203- )LHD

PRIUS PRIUS V | INSTRUMENT PANEL GLOVE COMPARTMENT 55301 - PANEL SUB-ASSY, INSTRUMENT 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 55309C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER 55326A - STAY, INSTRUMENT PANEL, NO.1 55327A - STAY, INSTRUMENT PANEL, NO.2 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER 55349A - CUSHION, INSTRUMENT PANEL 55355 - CUSHION, INSTRUMENT PANEL, NO.1 55356C - CUSHION, INSTRUMENT PANEL, NO.2 55357B - CUSHION, INSTRUMENT PANEL, NO.3 55358K - CUSHION, INSTRUMENT PANEL, NO.4 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 55466A - RETAINER, INSTRUMENT PANEL SAFETY PAD 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
