TOYOTA PRIUS PRIUS V ZVW40L-AWXEBW / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

WIRING CLAMP

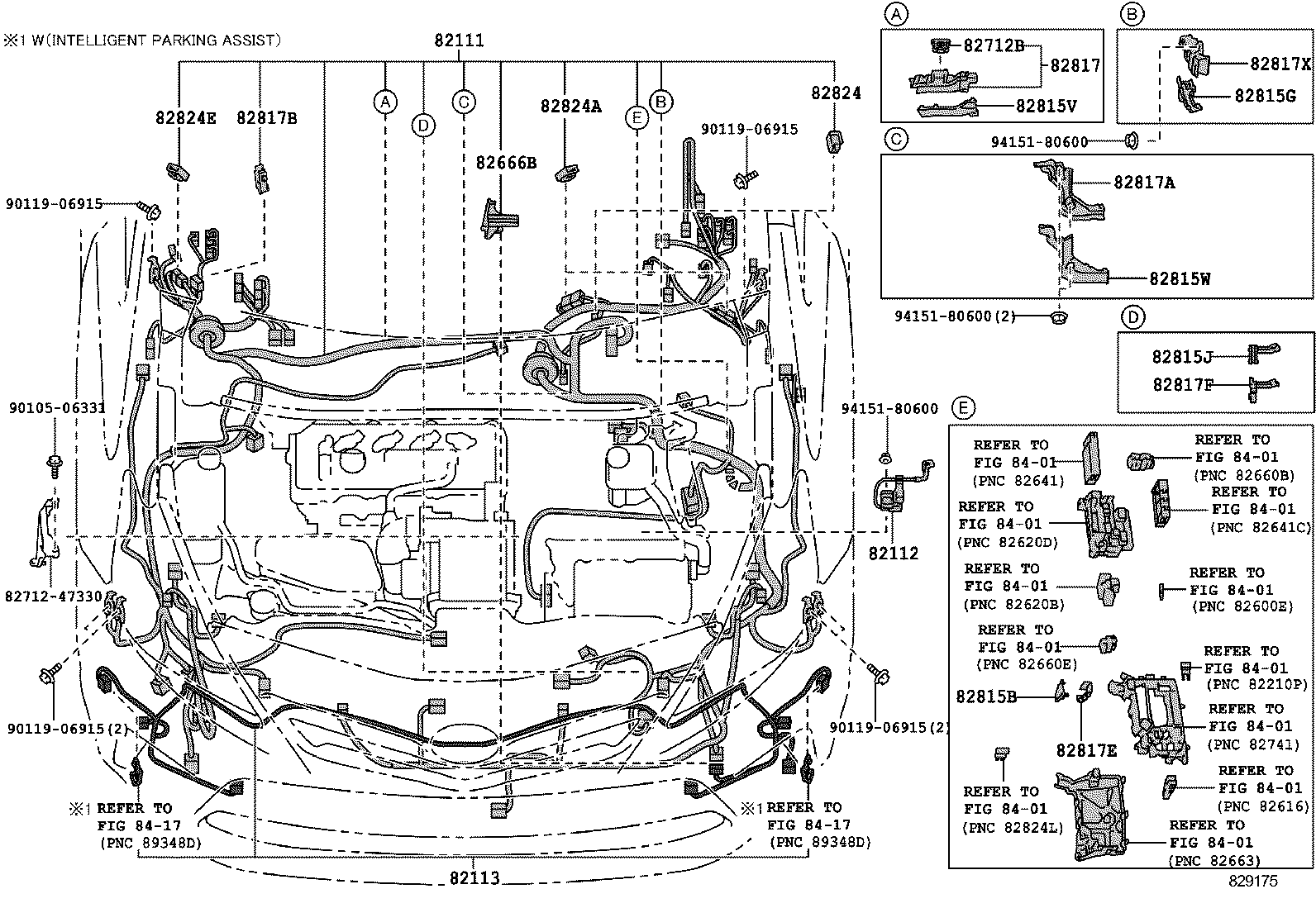

ENGINE ROOM ILLUST NO. 1 OF11(1210- )LHD

PRIUS PRIUS V | WIRING CLAMP 82111 - WIRE, ENGINE ROOM MAIN 82112 - WIRE, ENGINE ROOM, NO.2 82113 - WIRE, ENGINE ROOM, NO.3 82666B - HOLDER, CONNECTOR NO.3 ** Std Part 82712B - SUPPORT, WIRING HARNESS 82815B - COVER, WIRING HARNESS PROTECTOR 82815G - COVER, WIRING HARNESS PROTECTOR 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 82817 - PROTECTOR, WIRING HARNESS, NO.1 82817A - PROTECTOR, WIRING HARNESS, NO.2 82817B - PROTECTOR, WIRING HARNESS, NO.3 82817E - PROTECTOR, WIRING HARNESS, NO.6 82817F - PROTECTOR, WIRING HARNESS, NO.7 82817X - PROTECTOR, WIRING HARNESS, N0.17 82824 - CONNECTOR, WIRING HARNESS 82824A - CONNECTOR, WIRING HARNESS 82824E - CONNECTOR, WIRING HARNESS ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
