TOYOTA HILUX RN22-KD / POWERTRAIN-CHASSIS / FRONT DRUM BRAKE WHEEL CYLINDER BACKING PLATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

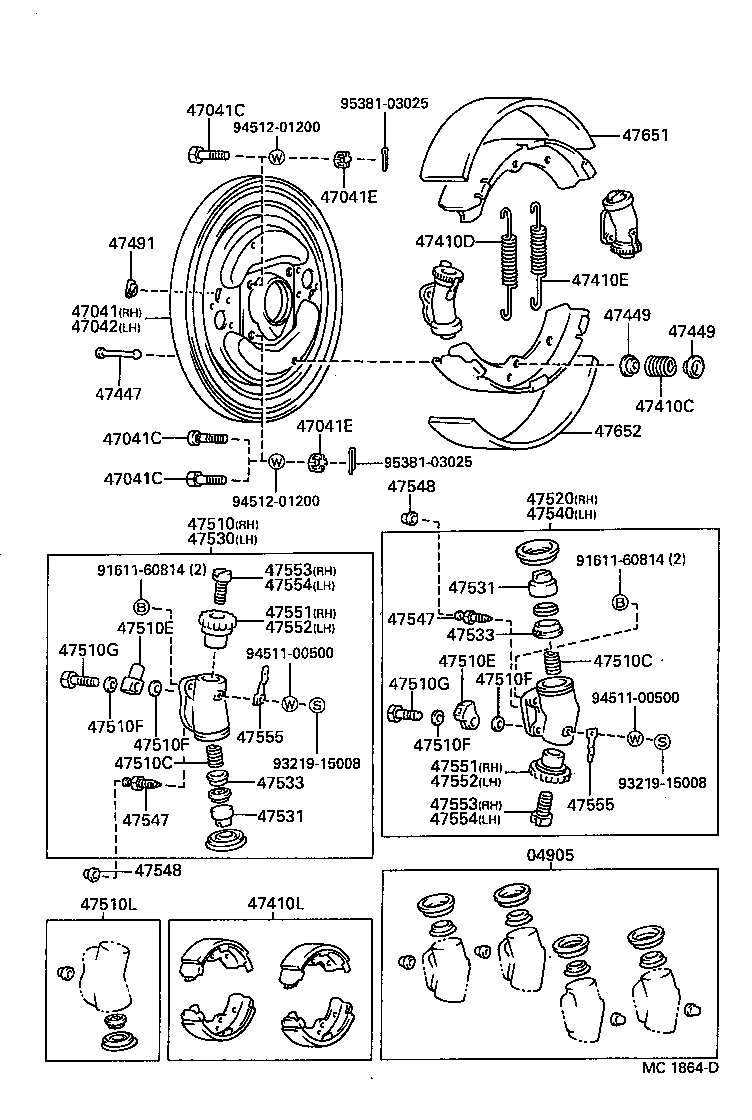

FRONT DRUM BRAKE WHEEL CYLINDER BACKING PLATE

(7205-7507)

HILUX | FRONT DRUM BRAKE WHEEL CYLINDER BACKING PLATE 04905 - CUP KIT, FRONT WHEEL CYLINDER 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) 47410L - SHOE KIT, FRONT BRAKE 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) 47491 - PLUG, HOLE(FOR FRONT BRAKE) 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER) 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) 47510E - UNION(FOR FRONT WHEEL BRAKE CYLINDER) 47510E - UNION(FOR FRONT WHEEL BRAKE CYLINDER) 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) 47510F - GASKET(FOR FRONT WHEEL BRAKE CYLINDER) 47510G - BOLT, UNION(FOR FRONT WHEEL BRAKE CYLINDER) 47510G - BOLT, UNION(FOR FRONT WHEEL BRAKE CYLINDER) 47510L - CUP KIT, FRONT WHEEL CYLINDER 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER) 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE) 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE) 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE) 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE) 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE) 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE) 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE) 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE) 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) 47651 - LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER) 47652 - LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
