TOYOTA HILUX RN22-KD / TOOL-ENGINE-FUEL / TIMING CHAIN

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

TIMING CHAIN

(7404-7509)18R

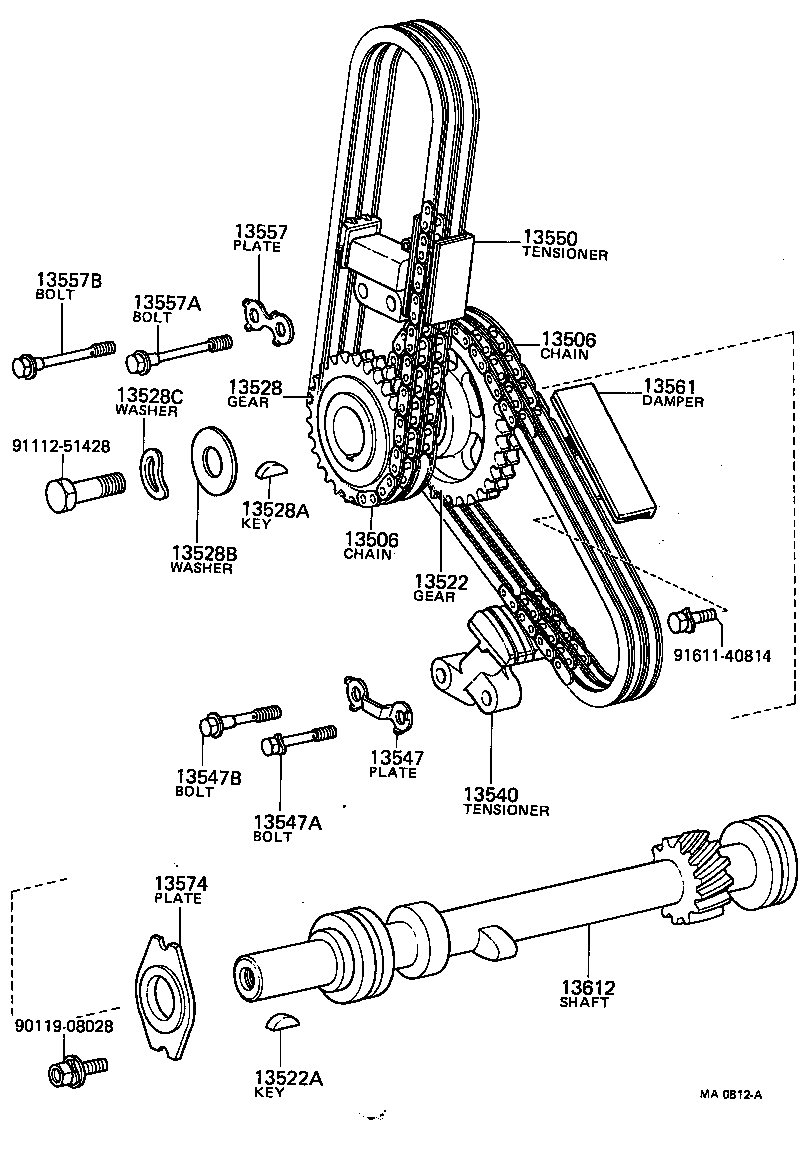

HILUX | TIMING CHAIN 13506 - CHAIN SUB-ASSY 13506 - CHAIN SUB-ASSY 13522 - GEAR, PUMP DRIVE SHAFT 13522A - KEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR) 13528 - GEAR, CAMSHAFT DRIVE 13528A - KEY, WOODRUFF(FOR CAMSHAFT DRIVE GEAR) 13528B - WASHER, PLATE(FOR CAMSHAFT DRIVE GEAR SET) 13528C - WASHER, WAVE(FOR CAMSHAFT DRIVE GEAR SET) 13540 - TENSIONER ASSY, CHAIN, NO.1 13547 - PLATE, TENSIONER BOLT LOCK, NO.1 13547A - BOLT(FOR TENSIONER LOCK PLATE SET) 13547B - BOLT, UNION(FOR TENSIONER LOCK PLATE) 13550 - TENSIONER ASSY, CHAIN, NO.2 13557 - PLATE, TENSIONER BOLT LOCK, NO.2 13557A - BOLT(FOR TENSIONER LOCK PLATE SET) 13557B - BOLT, UNION(FOR TENSIONER LOCK PLATE) 13561 - DAMPER, CHAIN VIBRATION, NO.1 13574 - PLATE, PUMP DRIVE SHAFT 13612 - SHAFT, PUMP DRIVE ** Std Part ** Std Part ** Std Part
