TOYOTA STOUT RK110R-JRN / TOOL-ENGINE-FUEL / STARTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

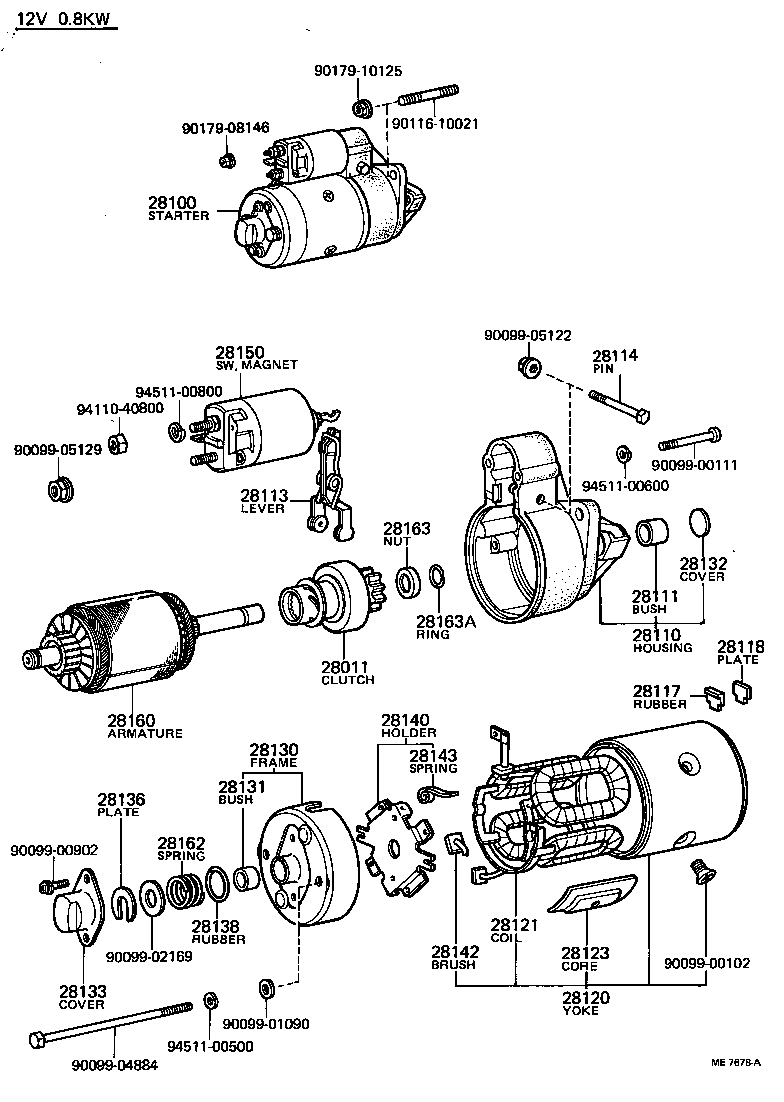

STARTER

(7903-7909)

STOUT | STARTER 28011 - CLUTCH SUB-ASSY, STARTER 28100 - STARTER ASSY 28110 - HOUSING ASSY, STARTER DRIVE 28111 - BUSH(FOR STARTER HOUSING) 28113 - LEVER, STARTER PINION DRIVE 28114 - PIN, STARTER DRIVE LEVER SET 28117 - RUBBER(FOR STARTER YOKE) 28118 - PLATE(FOR STARTER YOKE) 28120 - YOKE ASSY, STARTER 28121 - COIL, STARTER FIELD 28123 - CORE, STARTER POLE 28130 - FRAME ASSY, STARTER COMMUTATOR END 28131 - BUSH, COMMUTATOR END FRAME 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) 28133 - COVER, BEARING(FOR END FRAME) 28136 - PLATE, STARTER LOCK 28138 - RUBBER(FOR STARTER BEARING COVER) 28140 - HOLDER ASSY, STARTER BRUSH 28142 - BRUSH, STARTER 28143 - SPRING, STARTER BRUSH 28150 - SWITCH ASSY, MAGNET STARTER 28160 - ARMATURE ASSY, STARTER 28162 - SPRING, STARTER BRAKE 28163 - NUT OR COLLAR, PINION STOP, STARTER 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
