TOYOTA CARINA TA60L-AEKDSW / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

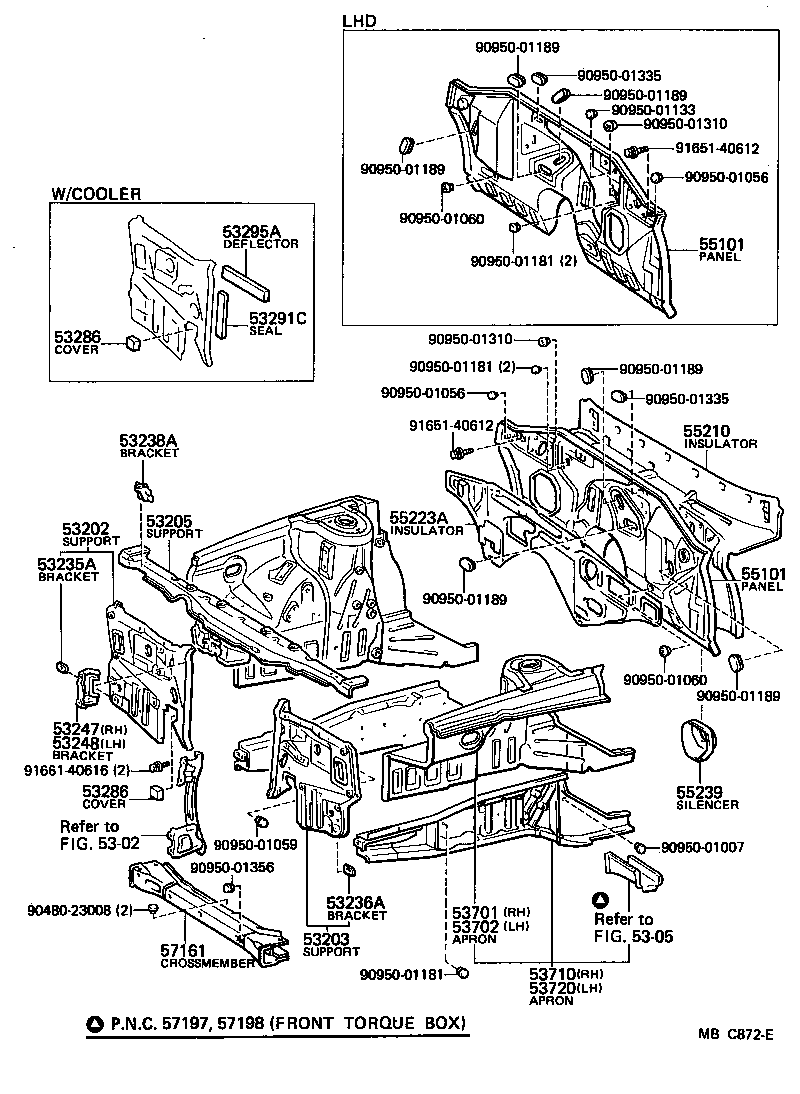

FRONT FENDER APRON DASH PANEL

(8108- )

 CARINA |  FRONT FENDER APRON DASH PANEL ** Refer Fig ** Refer Fig 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53235A - BRACKET, HORN MOUNTING, RH 53236A - BRACKET, HORN MOUNTING, LH 53238A - BRACKET, HOOD BUMPER MOUNTING 53247 - BRACKET, HEADLAMP MOUNTING, INNER RH 53248 - BRACKET, HEADLAMP MOUNTING, INNER LH 53286 - COVER, FRONT BUMPER ARM HOLE 53286 - COVER, FRONT BUMPER ARM HOLE 53291C - SEAL, RADIATOR SUPPORT TO FRAME 53295A - DEFLECTOR, RADIATOR UPPER AIR 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53710 - APRON ASSY, W/FRONT SIDE MEMBER, RH 53720 - APRON ASSY, W/FRONT SIDE MEMBER, LH 55101 - PANEL SUB-ASSY, DASH 55101 - PANEL SUB-ASSY, DASH 55210 - INSULATOR ASSY, DASH PANEL 55223A - INSULATOR, DASH PANEL, OUTER 55239 - SILENCER, STEERING COLUMN HOLE COVER 57161 - CROSSMEMBER, FRONT  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
