TOYOTA CRESSIDA MX62R-XEPNEQ / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

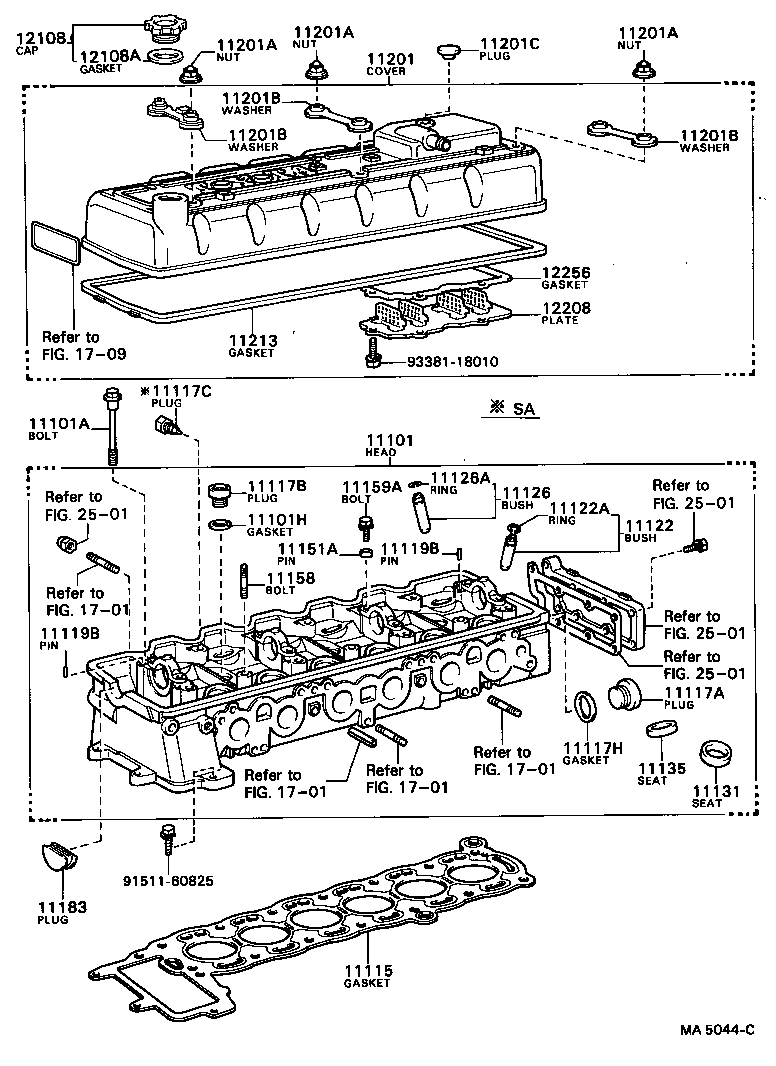

CYLINDER HEAD

(8009- )5ME

CRESSIDA | CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) 11115 - GASKET, CYLINDER HEAD 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 11117C - PLUG, W/HEAD TAPER SCREW, NO.3 11117H - GASKET(FOR WATER HOLE) 11119B - PIN, STRAIGHT, NO.2 11119B - PIN, STRAIGHT, NO.2 11122 - BUSH, INTAKE VALVE GUIDE 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) 11126 - BUSH, EXHAUST VALVE GUIDE 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11183 - PLUG, SEMICIRCULAR 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) 11201C - PLUG(FOR POSITIVE CRANKCASE VENTILATION VALVE HOLE) 11213 - GASKET, CYLINDER HEAD COVER 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) 12208 - PLATE SUB-ASSY, VENTILATION BAFFLE 12256 - GASKET, VENTILATION BAFFLE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part
