TOYOTA CRESSIDA MX62RG-XWPDEQ / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

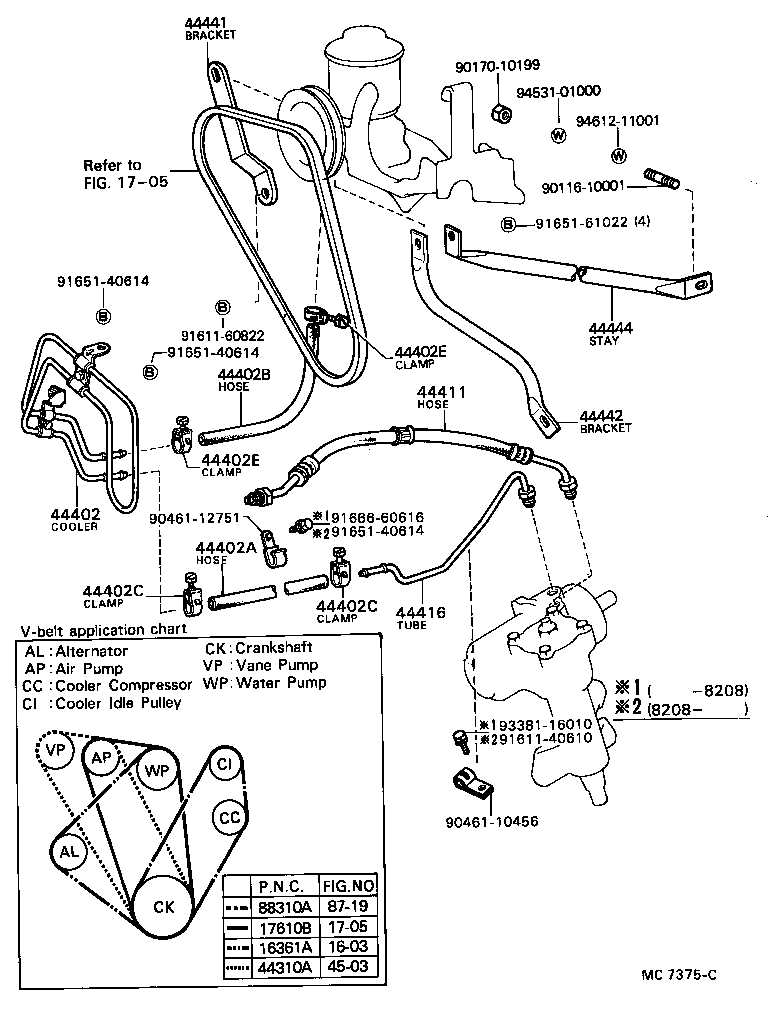

POWER STEERING TUBE

(8009- )MX62

CRESSIDA | POWER STEERING TUBE ** Refer Fig 16361A - BELT, V(FOR FAN & ALTERNATOR) ** Refer Fig ** Refer Fig 17610B - BELT, V(FOR AIR PUMP) 44310A - BELT, V(FOR VANE PUMP) 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 44402A - HOSE, POWER STEERING OIL COOLER INLET 44402B - HOSE, POWER STEERING OIL COOLER OUTLET 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE 44411 - HOSE, PRESSURE FEED 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44441 - BRACKET, PUMP, FRONT 44442 - BRACKET, PUMP, REAR 44444 - STAY, PUMP, REAR ** Refer Fig ** Refer Fig 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
