TOYOTA CROWN MS112L-SEHQS / ELECTRICAL / HEATING AIR CONDITIONING HEATER UNIT BLOWER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

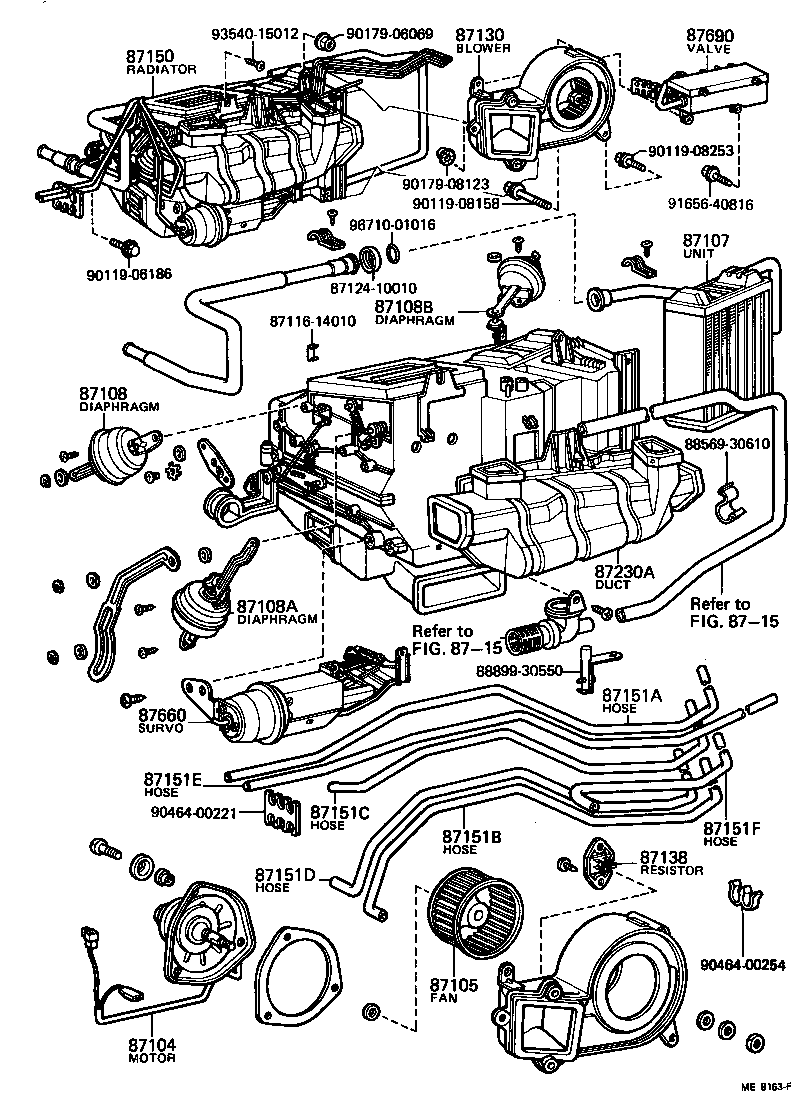

HEATING AIR CONDITIONING HEATER UNIT BLOWER

(7909- )LHD..ROY

CROWN | HEATING AIR CONDITIONING HEATER UNIT BLOWER 87104 - MOTOR SUB-ASSY, HEATER BLOWER 87105 - FAN SUB-ASSY, HEATER BLOWER 87107 - UNIT SUB-ASSY, HEATER RADIATOR 87108 - DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL 87108A - DIAPHRAGM SUB-ASSY, VENTILATOR DOOR CONTROL 87108B - DIAPHRAGM SUB-ASSY, BI-LEVEL DOOR CONTROL ** Std Part ** Std Part 87130 - BLOWER ASSY, HEATER, FRONT 87138 - RESISTOR, HEATER BLOWER ** Refer Fig ** Refer Fig 87150 - RADIATOR ASSY, HEATER 87151A - HOSE, VACUUM, A 87151B - HOSE, VACUUM, B 87151C - HOSE, VACUUM, C 87151D - HOSE, VACUUM, D 87151E - HOSE, VACUUM, E 87151F - HOSE, VACUUM, F 87230A - DUCT ASSY, HEATER AIR 87660 - SERVO ASSY, AIR CONDITIONER 87690 - VALVE ASSY, MAGNET ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
