TOYOTA CELICA AA63L-BCMQFW / POWERTRAIN-CHASSIS / REAR DISC BRAKE CALIPER DUST COVER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR DISC BRAKE CALIPER DUST COVER

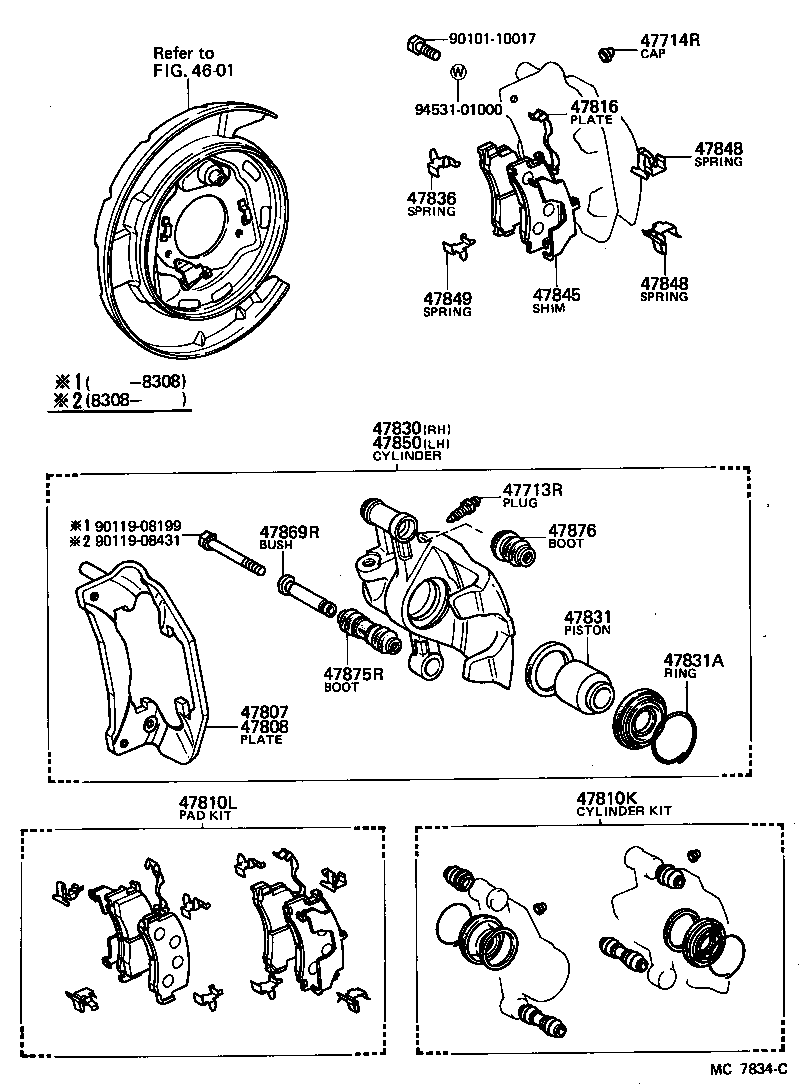

ILLUST NO. 1 OF 2(8108- )AA63,MA61,RA63..GT,SPR

 CELICA |  REAR DISC BRAKE CALIPER DUST COVER ** Refer Fig 47713R - PLUG, BLEEDER(FOR REAR DISC BRAKE) 47714R - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) 47807 - PLATE SUB-ASSY, DISC BRAKE TORQUE, RH 47808 - PLATE SUB-ASSY, DISC BRAKE TORQUE, LH 47810K - CYLINDER KIT, DISC BRAKE, REAR 47810L - PAD KIT, DISC BRAKE, REAR 47816 - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH 47831 - PISTON, REAR DISC BRAKE 47831A - RING, SET(FOR REAR DISC BRAKE PISTON) 47836 - PLATE, DISC BRAKE PAD GUIDE 47845 - SHIM, ANTISQUEAL, NO.2(FOR REAR DISC BRAKE) 47848 - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE) 47848 - SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE) 47849 - SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE) 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH 47869R - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) 47875R - BOOT, BUSH DUST(FOR REAR DISC BRAKE) 47876 - BOOT, MAIN PIN(FOR REAR DISC BRAKE)  ** Std Part  ** Std Part  ** Std Part  ** Std Part
