TOYOTA LAND CRUISER 70 BJ73RV-MNQ / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING WATER PIPING

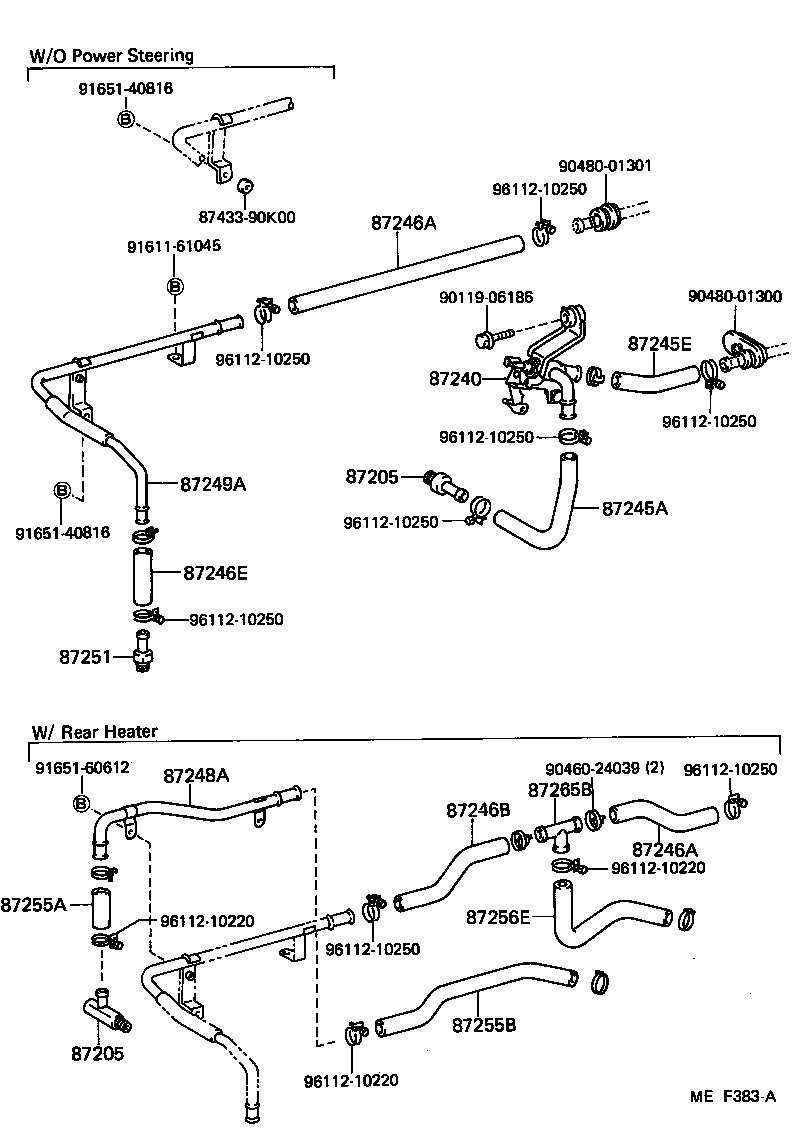

ILLUST NO. 1 OF 2(8411- )BJ70,73,75

 LAND CRUISER 70 |  HEATING AIR CONDITIONING WATER PIPING 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE 87240 - VALVE ASSY, HEATER WATER 87245A - HOSE, HEATER WATER, INLET A 87245E - HOSE, HEATER WATER, INLET E 87246A - HOSE, HEATER WATER, OUTLET A 87246A - HOSE, HEATER WATER, OUTLET A 87246B - HOSE, HEATER WATER, OUTLET B 87246E - HOSE, HEATER WATER, OUTLET E 87248A - PIPE, HEATER WATER INLET, A 87249A - PIPE, HEATER WATER OUTLET, A 87251 - JOINT OR UNION, WATER HOSE THROUGH 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) 87255B - HOSE, REAR HEATER WATER INLET, B 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) 87265B - CONNECTOR, HEATER WATER HOSE, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
