TOYOTA LAND CRUISER 70 HJ75RV-MRQ / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

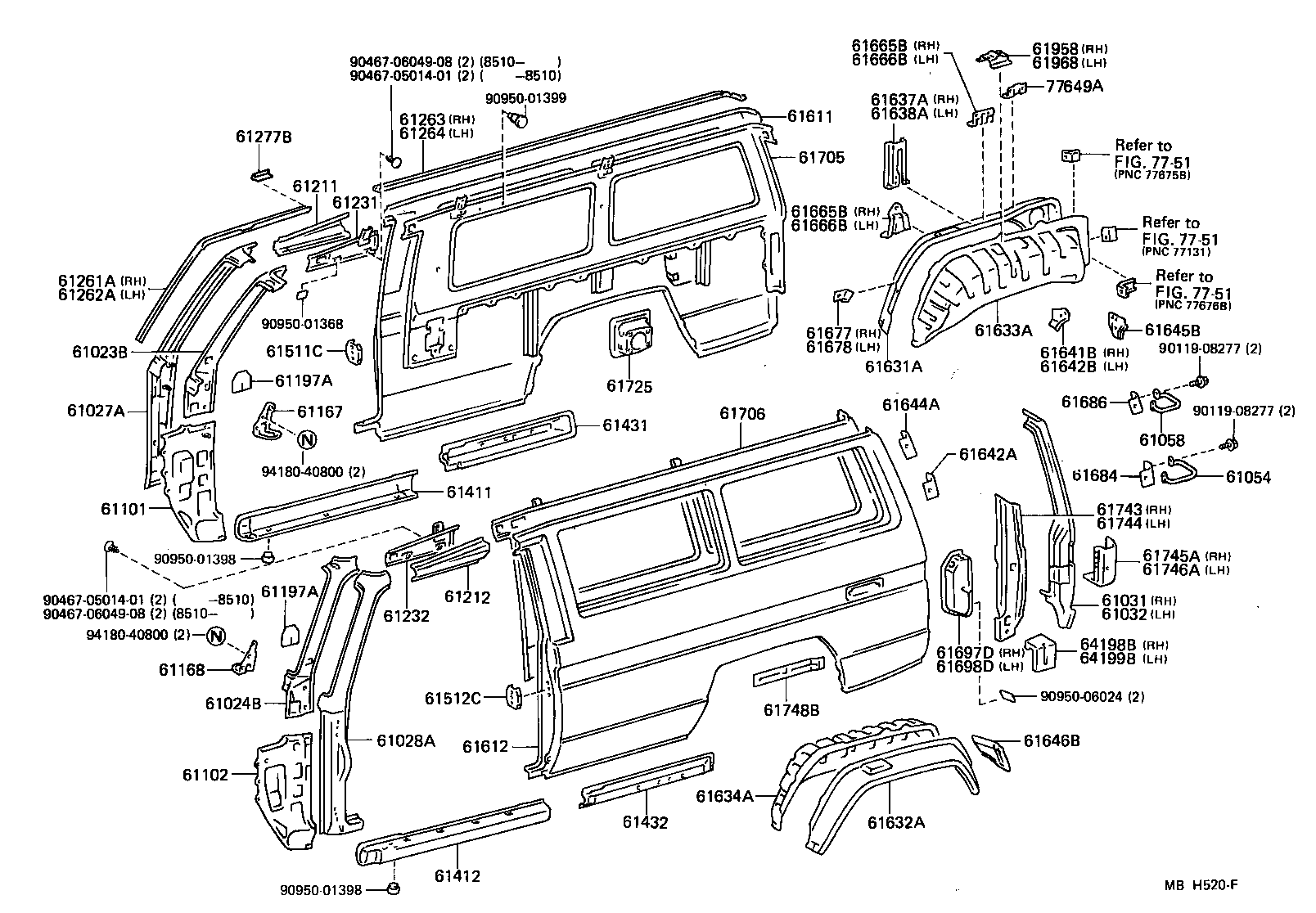

SIDE MEMBER

ILLUST NO. 1 OF 2(8411- )BJ75,FJ75,HJ75..HT

 LAND CRUISER 70 |  SIDE MEMBER 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH 61031 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH 61032 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH 61054 - STEP SUB-ASSY, QUARTER PANEL, NO.1 LH 61058 - STEP SUB-ASSY, QUARTER PANEL, NO.2 LH 61101 - PANEL SUB-ASSY, COWL SIDE, RH 61102 - PANEL SUB-ASSY, COWL SIDE, LH 61167 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH 61168 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH 61197A - COVER, FRONT PILLAR, RH 61197A - COVER, FRONT PILLAR, RH 61211 - RAIL, ROOF SIDE, OUTER RH 61212 - RAIL, ROOF SIDE, OUTER LH 61231 - RAIL, ROOF SIDE, INNER RH 61232 - RAIL, ROOF SIDE, INNER LH 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH 61263 - CHANNEL, ROOF DRIP, REAR RH 61264 - CHANNEL, ROOF DRIP, REAR LH 61277B - JOINT, ROOF DRIP CHANNEL 61411 - PANEL, ROCKER, OUTER RH 61412 - PANEL, ROCKER, OUTER LH 61431 - PANEL, ROCKER, OUTER REAR RH 61432 - PANEL, ROCKER, OUTER REAR LH 61511C - REINFORCEMENT, QUARTER LOCK PILLAR, RH 61512C - REINFORCEMENT, QUARTER LOCK PILLAR, LH 61611 - PANEL, QUARTER, RH 61612 - PANEL, QUARTER, LH 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH 61637A - BRACE, QUARTER PANEL, RH 61638A - BRACE, QUARTER PANEL, LH 61641B - GUSSET, QUARTER WHEEL HOUSE, RH 61642A - RETAINER, QUARTER PANEL STEP, NO.1 LH 61642B - GUSSET, QUARTER WHEEL HOUSE, LH 61644A - RETAINER, QUARTER PANEL STEP, NO.2 LH 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH 61665B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH 61665B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH 61666B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH 61666B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH 61677 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER RH 61678 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH 61684 - ORNAMENT, QUARTER PANEL STEP, NO.1 LH 61697D - HOUSING, QUARTER PANEL END, RH 61698D - HOUSING, QUARTER PANEL END, LH 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH 61725 - BOX, FUEL INLET 61743 - REINFORCEMENT, BACK DOOR OPENING, INNER RH 61744 - REINFORCEMENT, BACK DOOR OPENING, INNER LH 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH 61748B - REINFORCEMENT, ROOF SIDE, INNER REAR, LH 61958 - BRACKET, REAR SEAT LEG, NO.1 RH 61968 - BRACKET, REAR SEAT LEG, NO.1 LH 64198B - BRACKET, LOWER BACK RAIL, INNER SIDE RH 64199B - BRACKET, LOWER BACK RAIL, INNER SIDE LH ** Refer Fig ** Refer Fig ** Refer Fig 77649A - RETAINER, JACK HANDLE CLAMP  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
