TOYOTA CAMRY VZV21R-UEPGKQ / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

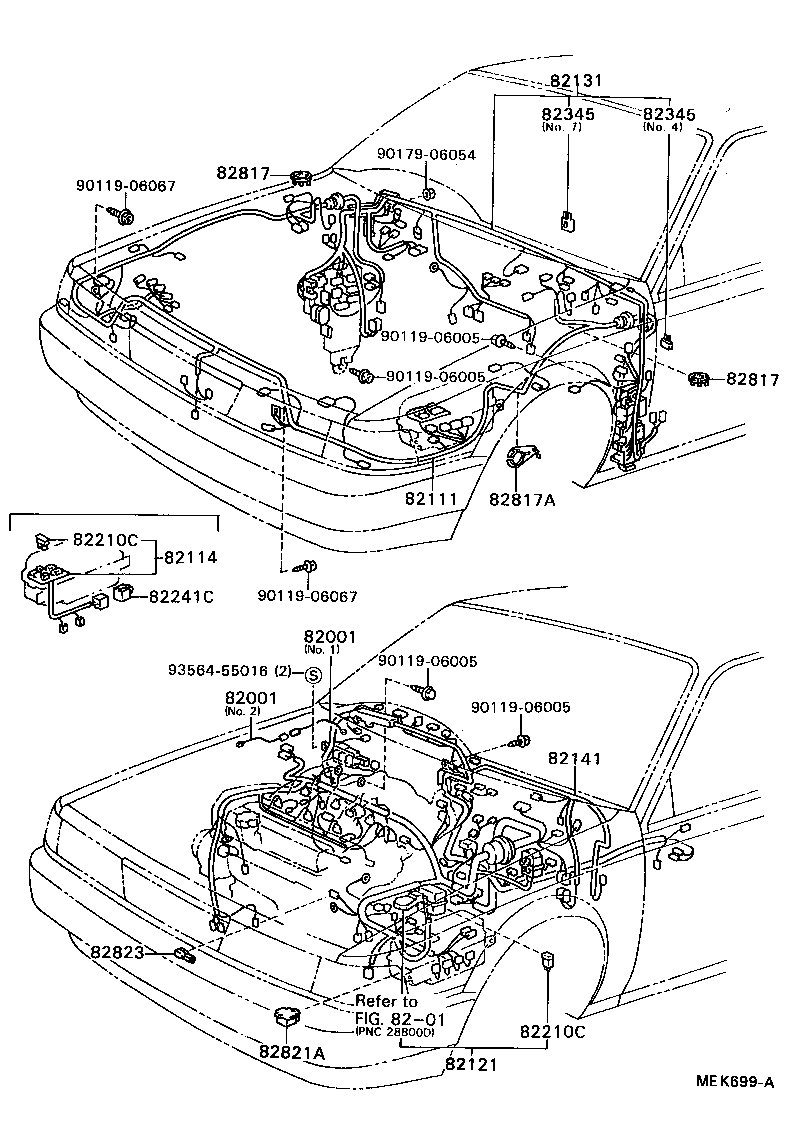

ILLUST NO. 1 OF 5(8802- )VZV21

 CAMRY |  WIRING CLAMP 82001 - CABLE, BOND, NO.1 82001 - CABLE, BOND, NO.1 ** Refer Fig 82111 - WIRE, ENGINE ROOM MAIN 82114 - WIRE, ENGINE ROOM, NO.4 82121 - WIRE, ENGINE 82131 - WIRE, COWL 82141 - WIRE, INSTRUMENT PANEL 82210C - FUSIBLE LINK 82210C - FUSIBLE LINK 82241C - WIRE, RELAY 82345 - DIODE 82345 - DIODE 82817 - PROTECTOR, WIRING HARNESS, NO.1 82817 - PROTECTOR, WIRING HARNESS, NO.1 82817A - PROTECTOR, WIRING HARNESS, NO.2 82821A - COVER, CONNECTOR 82823 - CAP, TERMINAL, NO.1  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
