TOYOTA HILUX YN58R-MSCQ / POWERTRAIN-CHASSIS / REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

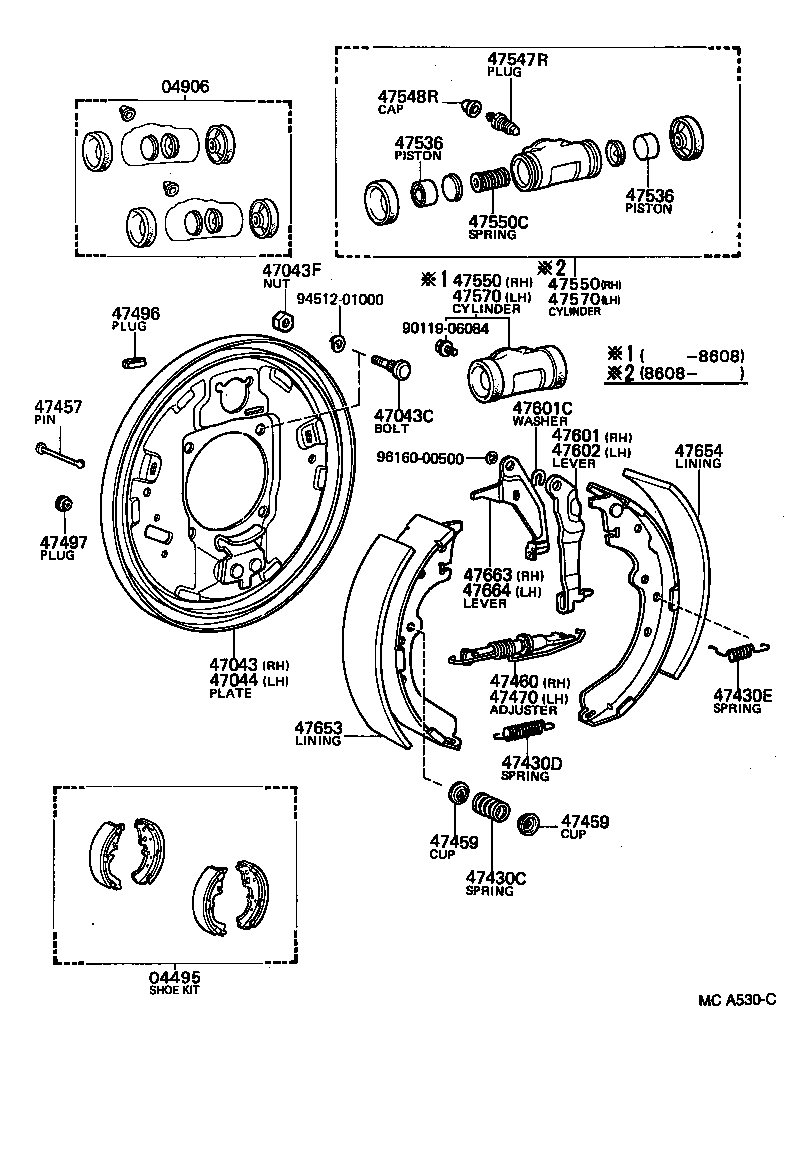

REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

(8309-8808)YN57,58..SR5..ARL

HILUX | REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE 04495 - SHOE KIT, REAR BRAKE 04906 - CUP KIT, REAR WHEEL CYLINDER 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) 47457 - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47459 - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) 47460 - ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE) 47470 - ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE) 47496 - PLUG, HOLE(FOR REAR BRAKE) 47497 - PLUG, HOLE NO.2(FOR REAR BRAKE) 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) 47601C - WASHER, C(FOR REAR BRAKE) 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) 47663 - LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) 47664 - LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) ** Std Part ** Std Part ** Std Part
