TOYOTA CELICA ST185R-BLMQZQ / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

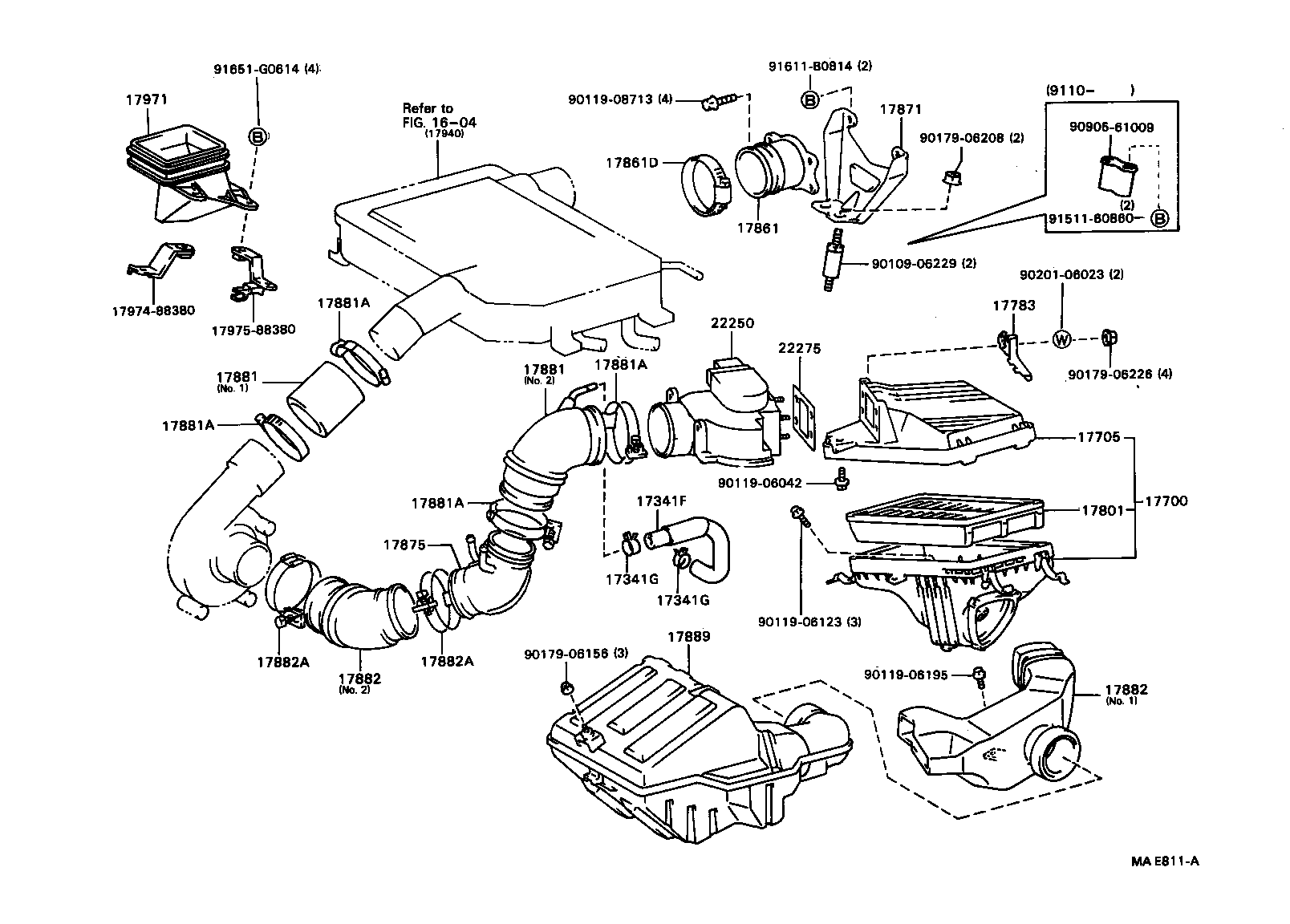

AIR CLEANER

(9108-9202)3SGTE

CELICA | AIR CLEANER ** Refer Fig 17341F - HOSE, AIR, NO.1 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17783 - PLATE, AIR CLEANER BAFFLE 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17861 - CONNECTOR, INTAKE AIR 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) 17871 - STAY, AIR CONNECTOR 17875 - PIPE, INTAKE AIR CONNECTOR 17881 - HOSE, AIR CLEANER, NO.1 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17889 - BOX, AIR CLEANER HOSE, NO.2 17971 - INLET, COOL AIR, NO.1 ** Std Part ** Std Part 22250 - METER ASSY, INTAKE AIR FLOW 22275 - GASKET, AIR FLOW METER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
