TOYOTA CROWN GS131R-AEMQK / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

STEERING COLUMN SHAFT

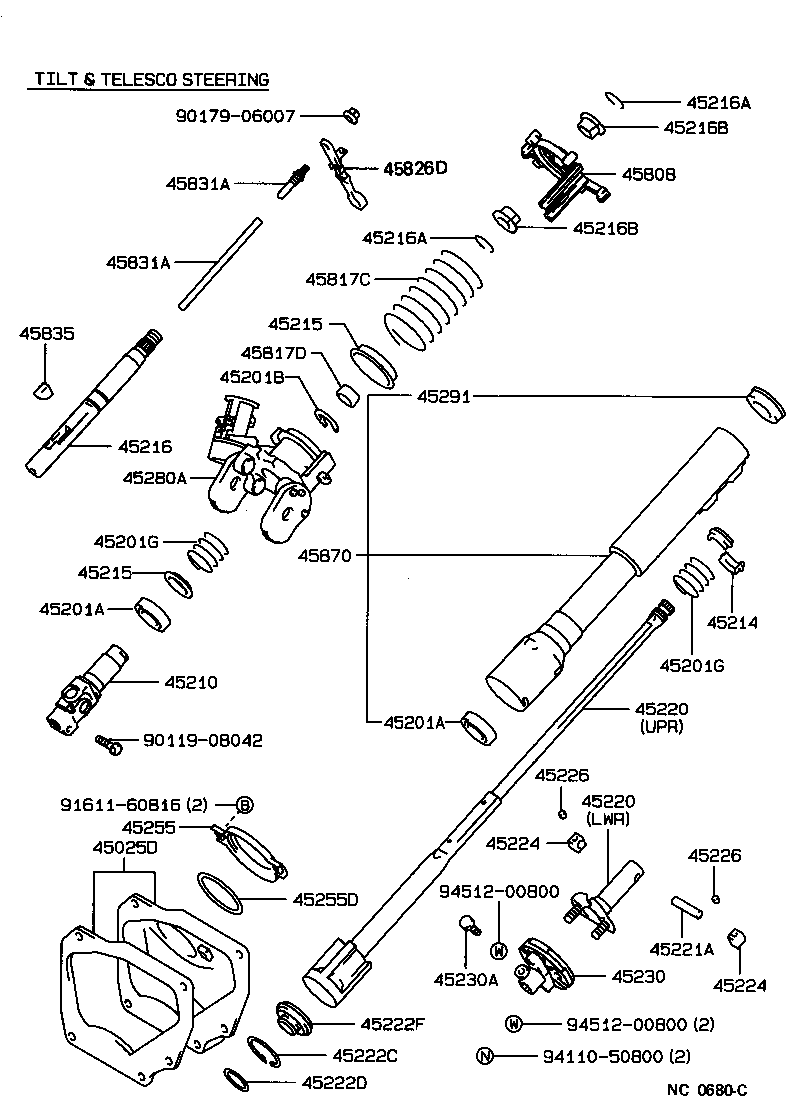

ILLUST NO. 1 OF 3(8709-8908)4FC,5F..ROY ; (8908- )4FC,5F..ROY

 CROWN |  STEERING COLUMN SHAFT 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) 45210 - SHAFT ASSY, STEERING MAIN 45214 - RETAINER, MAIN SHAFT SPRING 45215 - COLLAR, MAIN SHAFT BEARING THRUST 45215 - COLLAR, MAIN SHAFT BEARING THRUST 45216 - SHAFT, STEERING SLIDING 45216A - RING, SHAFT SNAP(FOR STEERING SLIDING SHAFT) 45216A - RING, SHAFT SNAP(FOR STEERING SLIDING SHAFT) 45216B - BUSH(FOR STEERING SLIDING SHAFT) 45216B - BUSH(FOR STEERING SLIDING SHAFT) 45220 - SHAFT ASSY, STEERING INTERMEDIATE 45220 - SHAFT ASSY, STEERING INTERMEDIATE 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) 45222C - RING, HOLE SNAP(FOR DUST COVER) 45222D - RING, O(FOR DUST COVER) 45222F - COVER, DUST 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) 45230 - COUPLING ASSY, FLEXIBLE 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) 45255 - PLATE, STEERING COLUMN HOLE COVER 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) 45280A - BRACKET ASSY, STEERING COLUMN, UPPER 45291 - SEAL, MAIN SHAFT UPPER DUST 45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST 45817C - SPRING, COMPRESSION(FOR STEERING SHAFT THRUST STOPPER) 45817D - CUSHION(FOR STEERING SHAFT THRUST STOPPER) 45826D - LEVER, STEERING TELESCOPIC 45831A - BOLT, TELESCOPE LEVER LOCK 45831A - BOLT, TELESCOPE LEVER LOCK 45835 - WEDGE, LOCK 45870 - TUBE ASSY, STEERING COLUMN  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
