TOYOTA CROWN GS131R-AEMQK / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE TUBE CLAMP

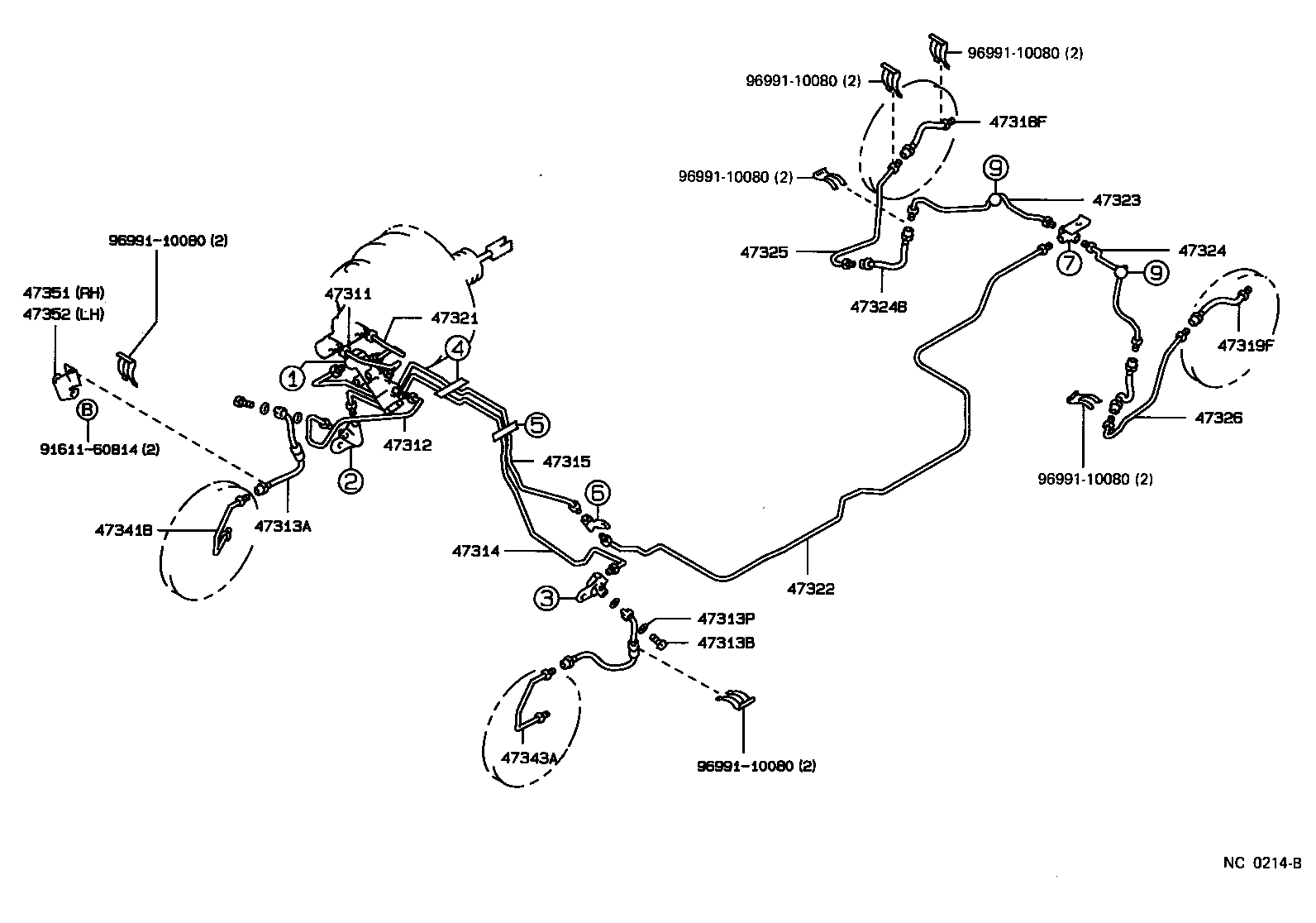

ILLUST NO. 1 OF 2(8709- )GS131,MS135..RHD

CROWN | BRAKE TUBE CLAMP 47311 - TUBE, FRONT BRAKE, NO.1 47312 - TUBE, FRONT BRAKE, NO.2 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47314 - TUBE, FRONT BRAKE, NO.4 47315 - TUBE, FRONT BRAKE, NO.5 47318F - HOSE, FLEXIBLE(FOR REAR RH) 47319F - HOSE, FLEXIBLE(FOR REAR LH) 47321 - TUBE, REAR BRAKE, NO.1 47322 - TUBE, REAR BRAKE, NO.2 47323 - TUBE, REAR BRAKE, NO.3 47324 - TUBE, REAR BRAKE, NO.4 47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2) 47325 - TUBE, REAR BRAKE, NO.5 47326 - TUBE, REAR BRAKE, NO.6 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
