TOYOTA CROWN GS131R-AEMQK / POWERTRAIN-CHASSIS / FRONT SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SPRING SHOCK ABSORBER

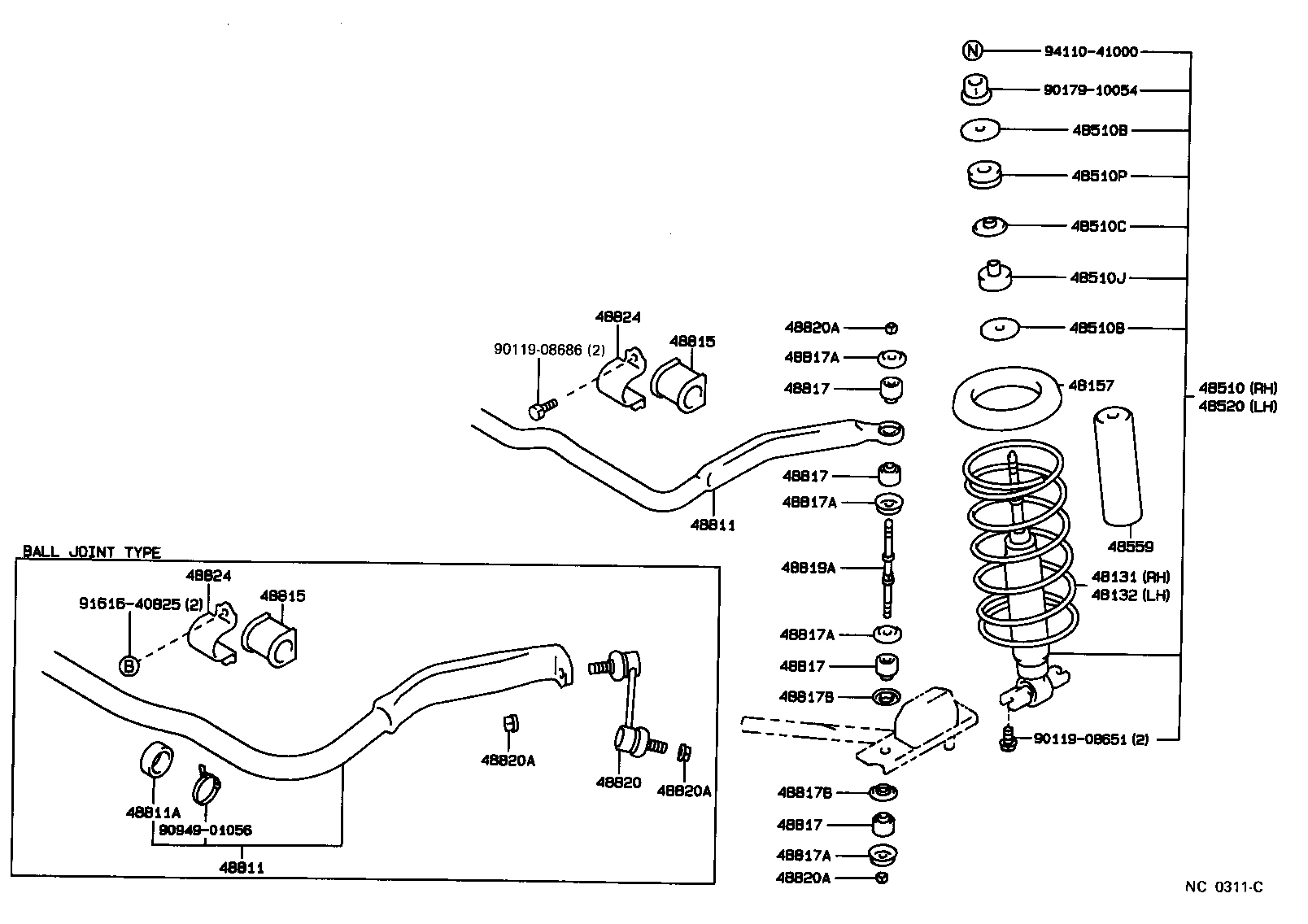

ILLUST NO. 1 OF 2(8709- )

CROWN | FRONT SPRING SHOCK ABSORBER 48131 - SPRING, FRONT COIL, RH 48132 - SPRING, FRONT COIL, LH 48157 - INSULATOR, FRONT COIL SPRING, UPPER 48510 - ABSORBER ASSY, SHOCK, FRONT RH 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) 48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1 48510P - CUSHION, FRONT SHOCK ABSORBER, NO.2 48520 - ABSORBER ASSY, SHOCK, FRONT LH 48559 - COVER, SHOCK ABSORBER, DUST 48811 - BAR, STABILIZER, FRONT 48811 - BAR, STABILIZER, FRONT 48811A - BUSH(FOR FRONT STABILIZER BAR) 48815 - BUSH, FRONT STABILIZER BAR, NO.1 48815 - BUSH, FRONT STABILIZER BAR, NO.1 48817 - CUSHION, FRONT STABILIZER 48817 - CUSHION, FRONT STABILIZER 48817 - CUSHION, FRONT STABILIZER 48817 - CUSHION, FRONT STABILIZER 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) 48819A - BOLT, FRONT STABILIZER 48820 - LINK ASSY, FRONT STABILIZER 48820A - NUT(FOR FRONT STABILIZER LINK) 48820A - NUT(FOR FRONT STABILIZER LINK) 48820A - NUT(FOR FRONT STABILIZER LINK) 48820A - NUT(FOR FRONT STABILIZER LINK) 48824 - BRACKET, STABILIZER, FRONT 48824 - BRACKET, STABILIZER, FRONT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
