RADIATOR WATER OUTLET

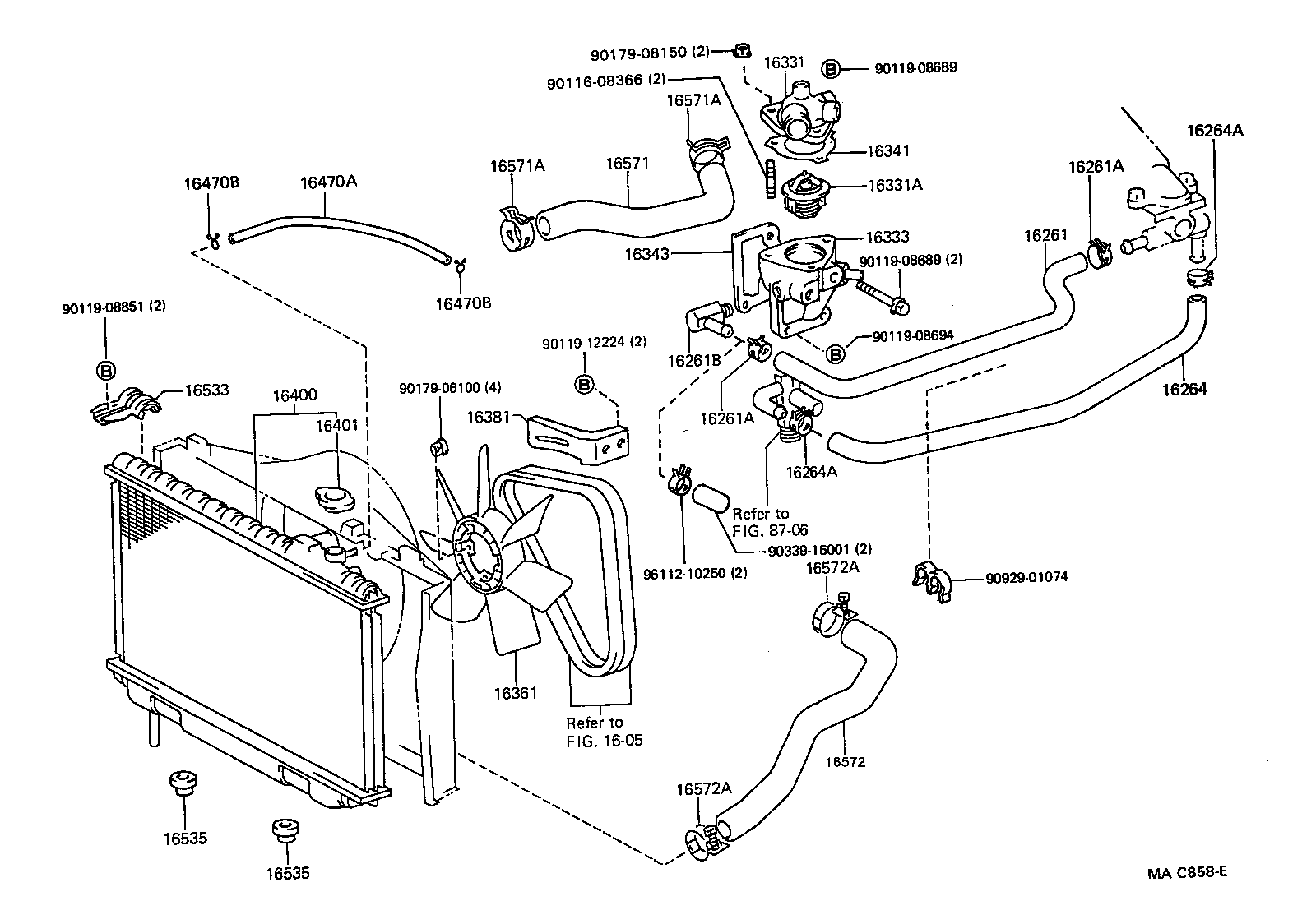

ILLUST NO. 1 OF 3(8908- )2L

CROWN | RADIATOR WATER OUTLET ** Refer Fig 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261B - UNION(FOR WATER BY-PASS HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16331 - OUTLET, WATER 16331A - THERMOSTAT 16333 - HOUSING, WATER OUTLET 16341 - GASKET, WATER OUTLET 16343 - GASKET, WATER OUTLET HOUSING 16361 - FAN 16381 - BAR, FAN BELT ADJUSTING 16400 - RADIATOR ASSY 16401 - CAP SUB-ASSY, RADIATOR 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16533 - SUPPORT, RADIATOR, UPPER 16535 - SUPPORT, RADIATOR, LOWER 16535 - SUPPORT, RADIATOR, LOWER 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
