TOYOTA CROWN JZS133-AEPQF / BODY / CONSOLE BOX BRACKET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

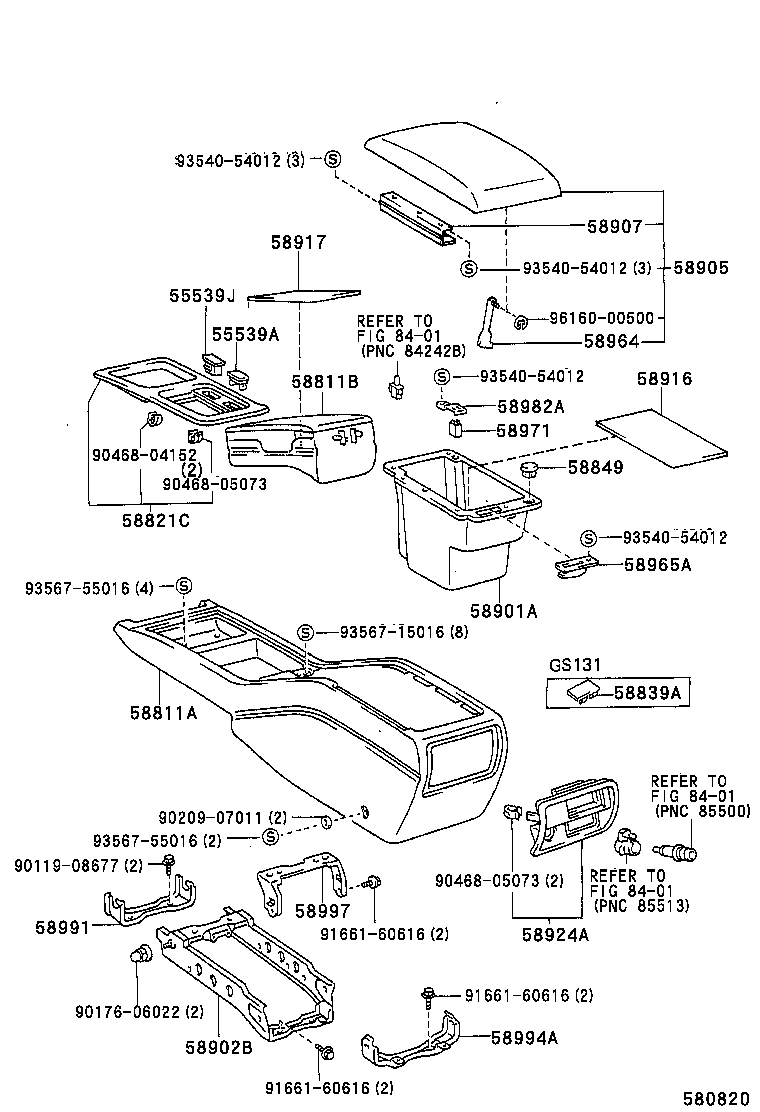

CONSOLE BOX BRACKET

(9110- )RHD..4FC..Q

 CROWN |  CONSOLE BOX BRACKET 55539A - COVER, SPARE SWITCH HOLE 55539J - COVER, SPARE SWITCH HOLE 58811A - BOX, CONSOLE, FRONT 58811B - BOX, CONSOLE 58821C - PANEL, CONSOLE, UPPER 58839A - COVER, CONSOLE BOX HOLE 58849 - COVER, CONSOLE BOX HOLE, NO.2 58901A - BOX SUB-ASSY, CONSOLE, REAR 58902B - BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR 58916 - MAT, BOX BOTTOM 58917 - MAT, BOX BOTTOM, NO.2 58924A - PANEL, CONSOLE REAR END, NO.2 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 58971 - LOCK, CONSOLE COMPARTMENT DOOR 58982A - RETAINER, CONSOLE COMPARTMENT DOOR LOCK 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER 58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4 58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3 ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
