TOYOTA CROWN JZS133-AEPQF / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

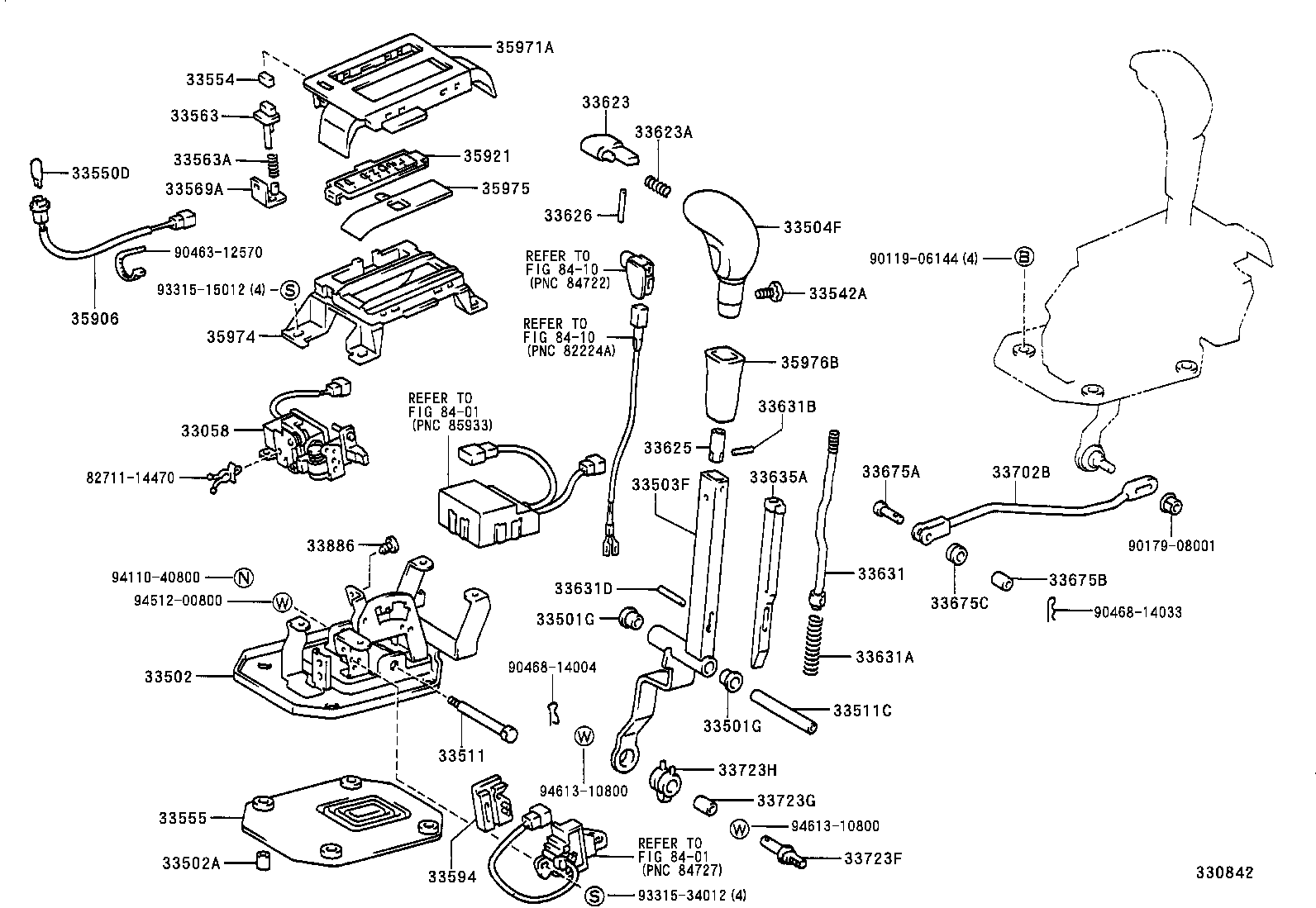

SHIFT LEVER RETAINER

(9110-9308)EECC

CROWN | SHIFT LEVER RETAINER 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33502 - PLATE SUB-ASSY, SHIFT LEVER 33502A - COLLAR (FOR FLOOR SHIFT SETTING) 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) 33504F - KNOB SUB-ASSY, SHIFT LEVER 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) 33511C - COLLAR (FOR CONTROL SHAFT) 33542A - SCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB) 33550D - BULB, POSITION INDICATOR LAMP 33554 - CAP, SHIFT LEVER 33555 - BOOT, SHIFT LEVER 33563 - BUTTON, SHIFT LOCK RELEASE 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) 33569A - GUIDE, SHIFT LOCK RELEASE BUTTON 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) 33623 - BUTTON, SHIFT LEVER KNOB 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) 33625 - SLEEVE, SHIFT LEVER KNOB 33626 - STOPPER, SHIFT LEVER BUTTON 33631 - ROD, DETENT 33631A - SPRING, COMPRESSION (FOR DETENT ROD) 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) 33631D - PIN, GROOVED (FOR DETENT ROD) 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) 33886 - STOPPER, SHIFT LEVER 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35921 - PLATE, CONTROL POSITION INDICATOR 35971A - HOUSING, POSITION INDICATOR, UPPER 35974 - HOUSING, POSITION INDICATOR, LOWER 35975 - COVER, SLIDE (FOR POSITION INDICATOR) 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
