TOYOTA CROWN JZS133R-AEMQF / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

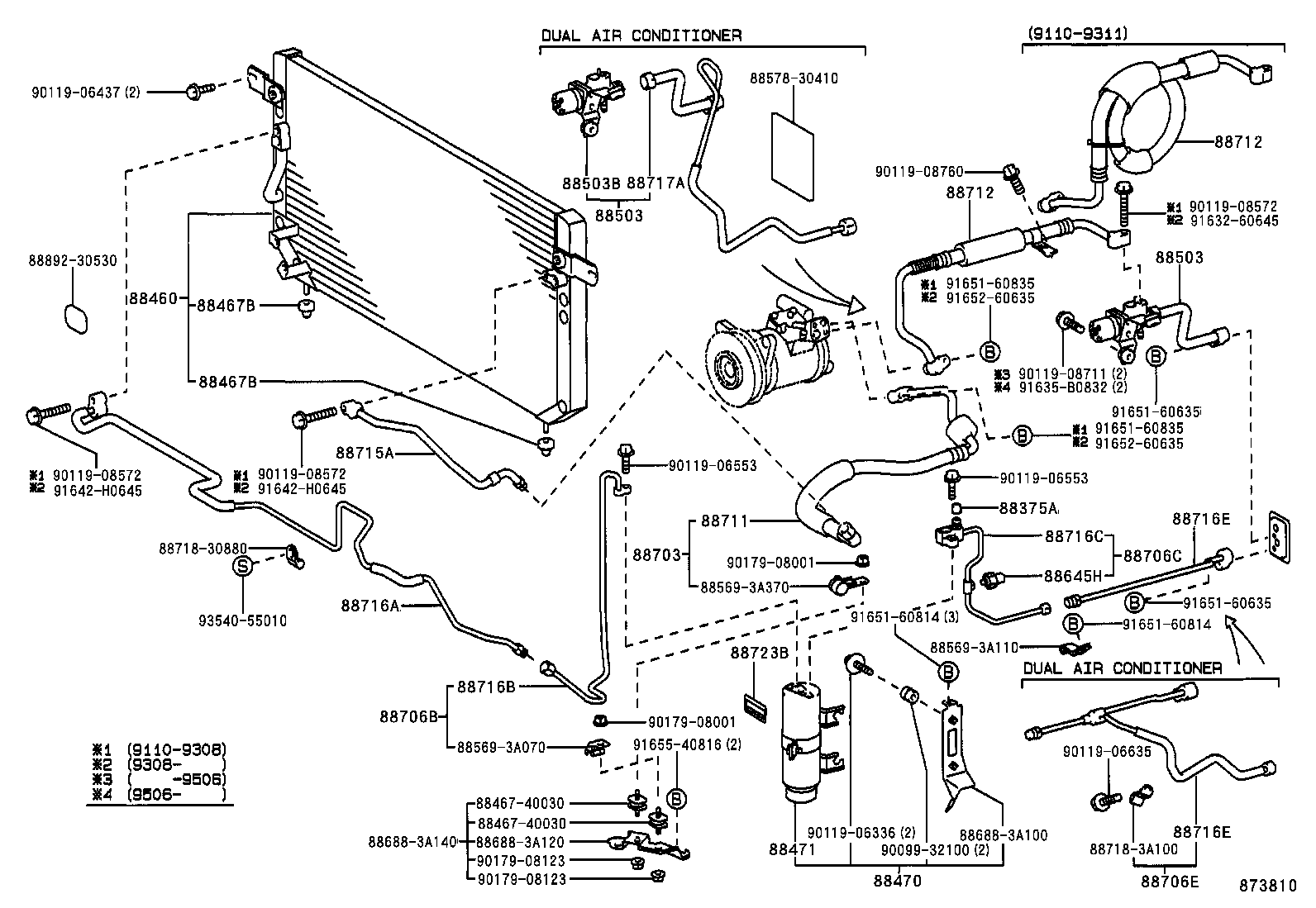

FRONT ILLUST NO. 1 OF 3(9110- )JZS133..RHD

 CROWN |  HEATING AIR CONDITIONING COOLER PIPING 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) 88460 - CONDENSER ASSY, COOLER  ** Std Part  ** Std Part 88467B - INSULATOR, COOLER CONDENSER MOUNTING 88467B - INSULATOR, COOLER CONDENSER MOUNTING 88470 - RECEIVER & DRYER ASSY, COOLER 88471 - TANK, RECEIVER AIR CONDITIONER 88503 - REGULATOR ASSY, PRESSURE 88503 - REGULATOR ASSY, PRESSURE 88503B - REGULATOR SUB-ASSY, PRESSURE  ** Std Part  ** Std Part  ** Std Part  ** Std Part 88645H - SWITCH, PRESSURE NO.1  ** Std Part  ** Std Part  ** Std Part 88703 - HOSE SUB-ASSY, DISCHARGE 88706B - TUBE SUB-ASSY, LIQUID, B 88706C - TUBE SUB-ASSY, LIQUID, C 88706E - TUBE SUB-ASSY, LIQUID, E 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716C - PIPE, COOLER REFRIGERANT LIQUID, C 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88717A - PIPE, COOLER REFRIGERANT SUCTION, A  ** Std Part  ** Std Part 88723B - LABEL, COOLER SERVICE CAUTION  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
