TOYOTA CROWN JZS133R-AEMQF / TOOL-ENGINE-FUEL / CYLINDER BLOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

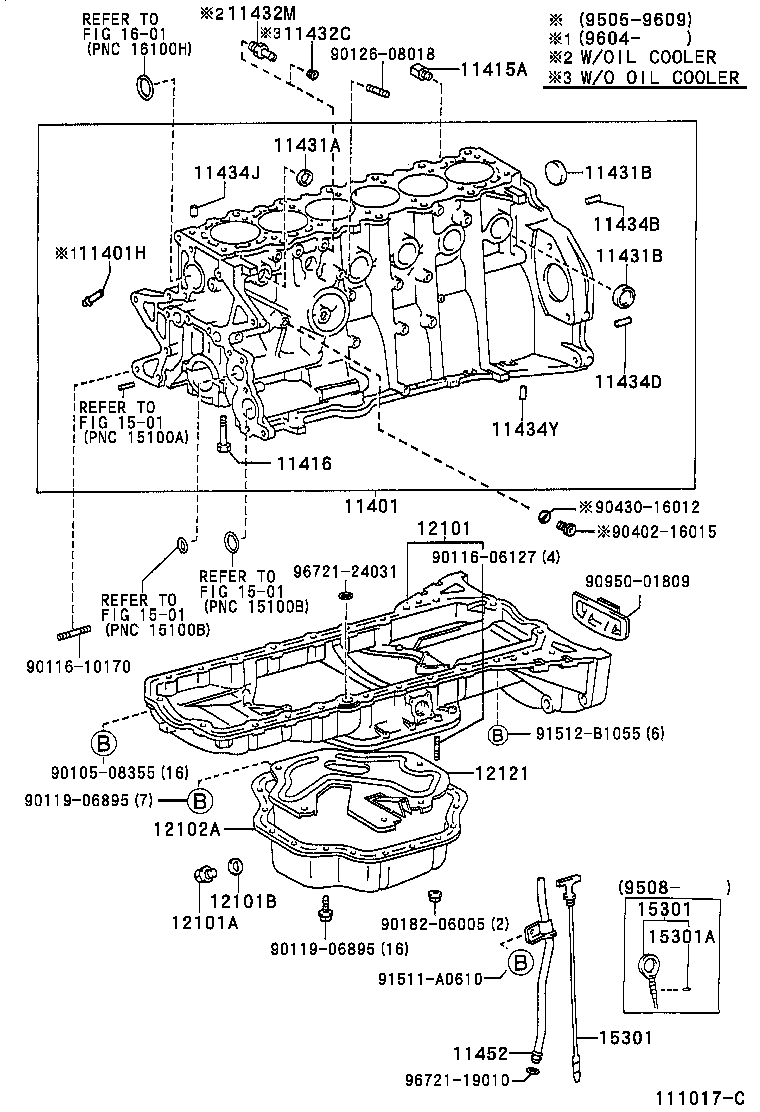

CYLINDER BLOCK

(9110- )2JZGE

 CROWN |  CYLINDER BLOCK 11401 - BLOCK SUB-ASSY, CYLINDER 11401H - UNION(FOR CYLINDER BLOCK LLC DRAIN) 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) 11432C - PLUG, W/HEAD TAPER SCREW, NO.3 11432M - UNION(FOR CYLINDER BLOCK) 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) 11434J - PIN, RING (FOR CYLINDER HEAD SET) 11434Y - PIN, STRAIGHT(FOR OIL PAN) 11452 - GUIDE, OIL LEVEL GAGE 12101 - PAN SUB-ASSY, OIL 12101A - PLUG(FOR OIL PAN DRAIN) 12101B - GASKET(FOR OIL PAN DRAIN PLUG) 12102A - PAN SUB-ASSY, OIL, NO.2 12121 - PLATE, OIL PAN BAFFLE, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig 15301 - GAGE SUB-ASSY, OIL LEVEL 15301 - GAGE SUB-ASSY, OIL LEVEL 15301A - RING, O(FOR OIL LEVEL GAGE) ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
