TOYOTA CROWN LS130R-AEJBS / POWERTRAIN-CHASSIS / TRANSMISSION GEAR MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

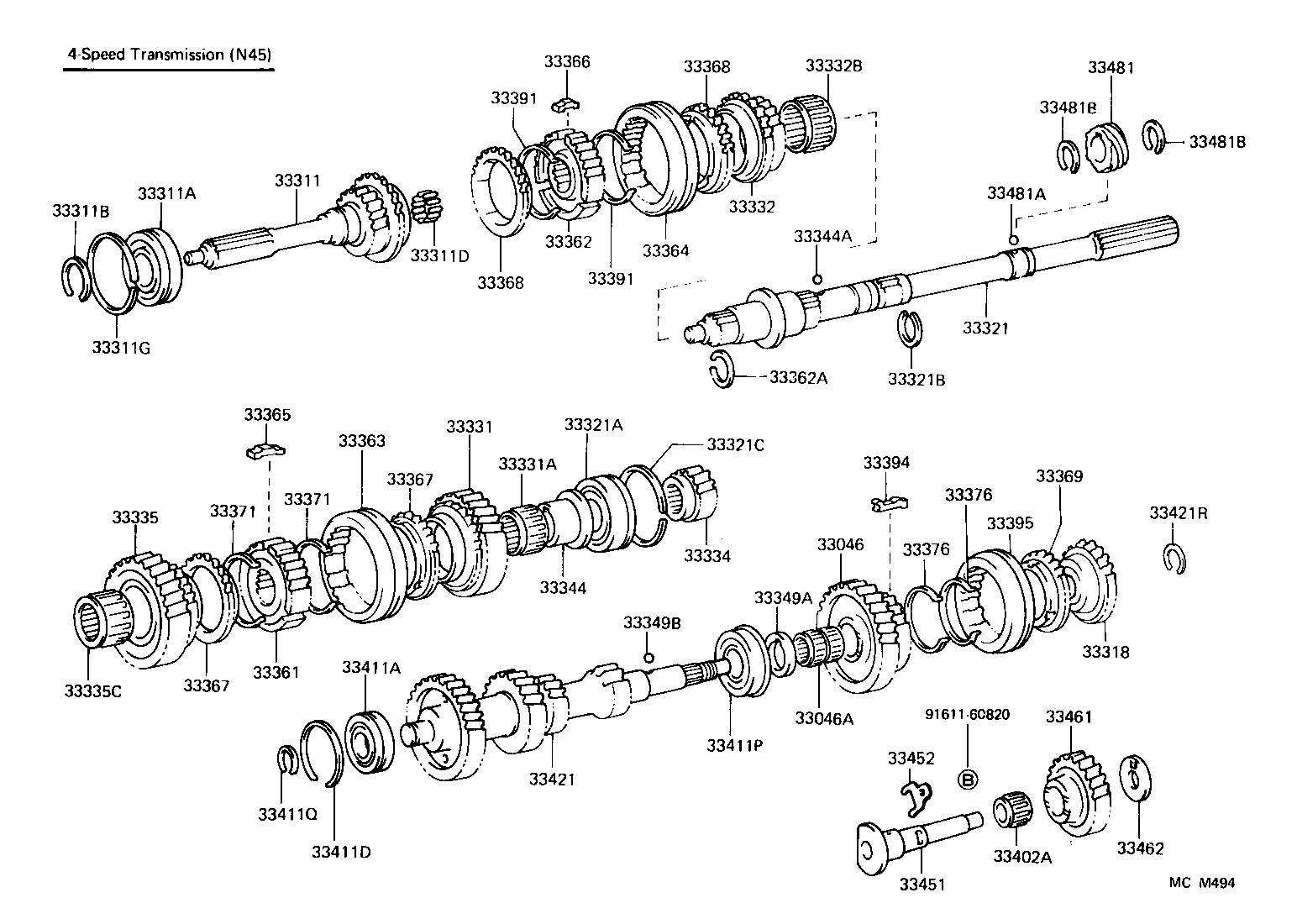

TRANSMISSION GEAR MTM

(9110-9512)4H

 CROWN |  TRANSMISSION GEAR MTM 33046 - GEAR SUB-ASSY, COUNTERSHAFT, 4TH 33046A - BEARING(FOR COUNTERSHAFT 4TH GEAR) 33311 - SHAFT, INPUT 33311A - BEARING (FOR INPUT SHAFT FRONT) 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) 33311D - BEARING, INPUT SHAFT 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) 33318 - PIECE, GEAR SPLINE, NO.5 33321 - SHAFT, OUTPUT 33321A - BEARING (FOR OUTPUT SHAFT REAR) 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) 33331 - GEAR, REVERSE 33331A - BEARING (FOR REVERSE GEAR) 33332 - GEAR, 2ND 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) 33334 - GEAR, 4TH 33335 - GEAR, 1ST 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) 33344 - BUSH, REVERSE GEAR 33344A - KEY OR BALL, REVERSE GEAR BEARING 33349A - WASHER, 4TH GEAR 33349B - BALL (FOR 4TH GEAR WASHER) 33361 - HUB, TRANSMISSION CLUTCH, NO.1 33362 - HUB, TRANSMISSION CLUTCH, NO.2 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) 33363 - SLEEVE, TRANSMISSION HUB, NO.1 33364 - SLEEVE, TRANSMISSION HUB, NO.2 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 33367 - RING, SYNCHRONIZER, NO.1 33367 - RING, SYNCHRONIZER, NO.1 33368 - RING, SYNCHRONIZER, NO.2 33368 - RING, SYNCHRONIZER, NO.2 33369 - RING, SYNCHRONIZER, NO.3 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 33395 - SLEEVE, TRANSMISSION HUB, NO.3 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 33411P - BEARING, COUNTER SHAFT CENTER 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 33421 - GEAR, COUNTER 33421R - RING, SHAFT SNAP(FOR COUNTER GEAR REAR) 33451 - SHAFT, REVERSE IDLER GEAR 33452 - STOPPER, REVERSE IDLER GEAR SHAFT 33461 - GEAR, REVERSE IDLER 33462 - WASHER, REVERSE IDLER THRUST 33481 - GEAR, SPEEDOMETER DRIVE (MTM) 33481A - KEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM) 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR) 33481B - RING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)  ** Std Part
